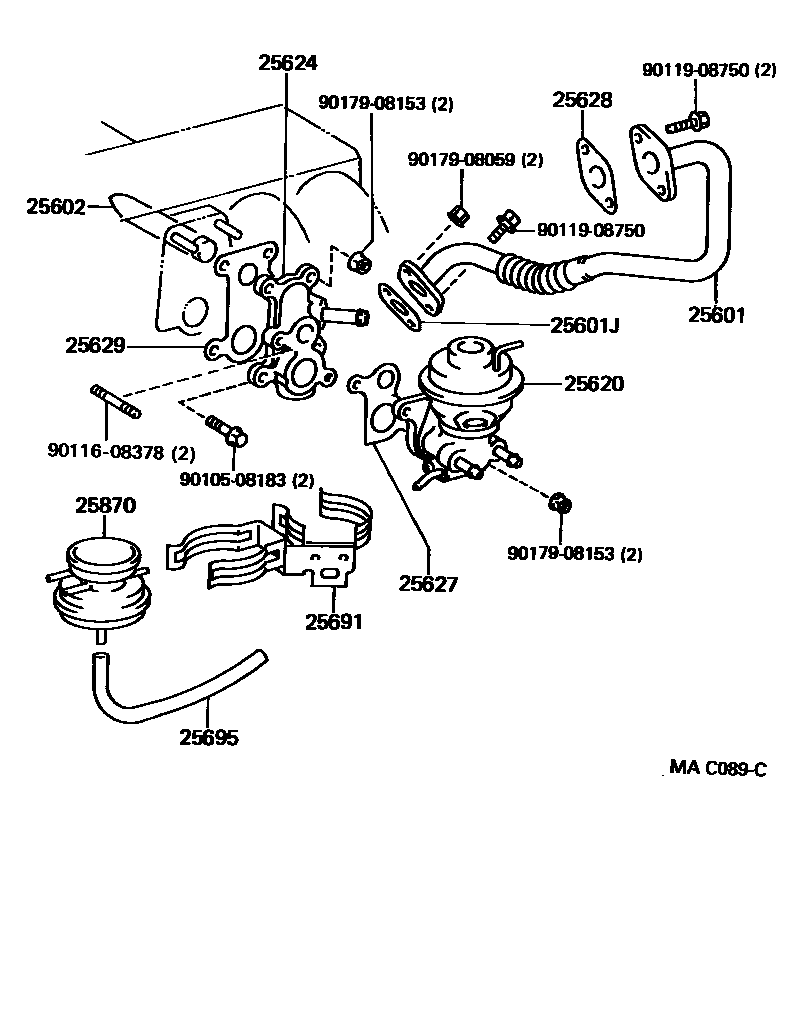

Toyota LEXUS LS400 — EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-50010i1UZFE..UCF10..LHD..EUR198912-199410

main25601-50020i1UZFE..UCF10..RHD..(ARL,EUR)198912-199410

main25601-50020i1UZFE..UCF10..GEN199108-199410

HONG KONG SPEC

25601JGASKET(FOR EGR PIPE, NO.1)

main25634-50010i1UZFE..UCF10..ARL,EUR198912-199410

main25634-50010i1UZFE..UCF10..GEN199108-199410

HONG KONG SPEC

25602PIPE SUB-ASSY, EGR, NO.2

main25612-50010i1UZFE..UCF10..ARL,EUR198912-199410

main25612-50010i1UZFE..UCF10..GEN199108-199208

HONG KONG SPEC

25620VALVE ASSY, EGR

main25620-50010i1UZFE..UCF10..ARL,EUR198912-199410

main25620-50010i1UZFE..UCF10..GEN199108-199410

HONG KONG SPEC

25624ADAPTER, EGR VALVE

main25624-50010i1UZFE..UCF10..ARL,EUR198912-199410

main25624-50010i1UZFE..UCF10..GEN199108-199410

HONG KONG SPEC

25627GASKET, EGR VALVE

main25627-50010i1UZFE..UCF10..ARL,EUR198912-199410

main25627-50010i1UZFE..UCF10..GEN199108-199410

HONG KONG SPEC

25628GASKET, EGR INLET

main25628-50010i1UZFE..UCF10..ARL,EUR198912-199410

main25628-50010i1UZFE..UCF10..GEN199108-199410

HONG KONG SPEC

25629GASKET, EGR VALVE ADAPTER

main25629-50010i1UZFE..UCF10..GEN199108-199410

HONG KONG SPEC

main25629-50010i1UZFE..UCF10..ARL,EUR198912-199410

25691BRACKET, EGR VACUUM MODULATOR

main25691-50010i1UZFE..UCF10..GEN199208-199410

HONG KONG SPEC

main25691-50010i1UZFE..UCF10..ARL,EUR198912-199008

main25691-50011i1UZFE..UCF10..GEN199108-199208

HONG KONG SPEC

main25691-50011i1UZFE..UCF10..ARL,EUR199008-199208

25695HOSE, EGR VACUUM MODULATOR

main25695-50010i1UZFE..UCF10..ARL,EUR198912-199410

main25695-50010i1UZFE..UCF10..GEN199108-199410

HONG KONG SPEC

25870VALVE ASSY, EGR VACUUM MODULATOR

main25870-50010i1UZFE..UCF10..ARL,EUR198912-199410

main25870-50010i1UZFE..UCF10..GEN199108-199410

HONG KONG SPEC

9010508183

main90105-08183

9011608378

main90116-08378

9011908750

main90119-08750

9017908059

main90179-08059

9017908153

main90179-08153

16 parts on this diagram · 1 diagram in section
