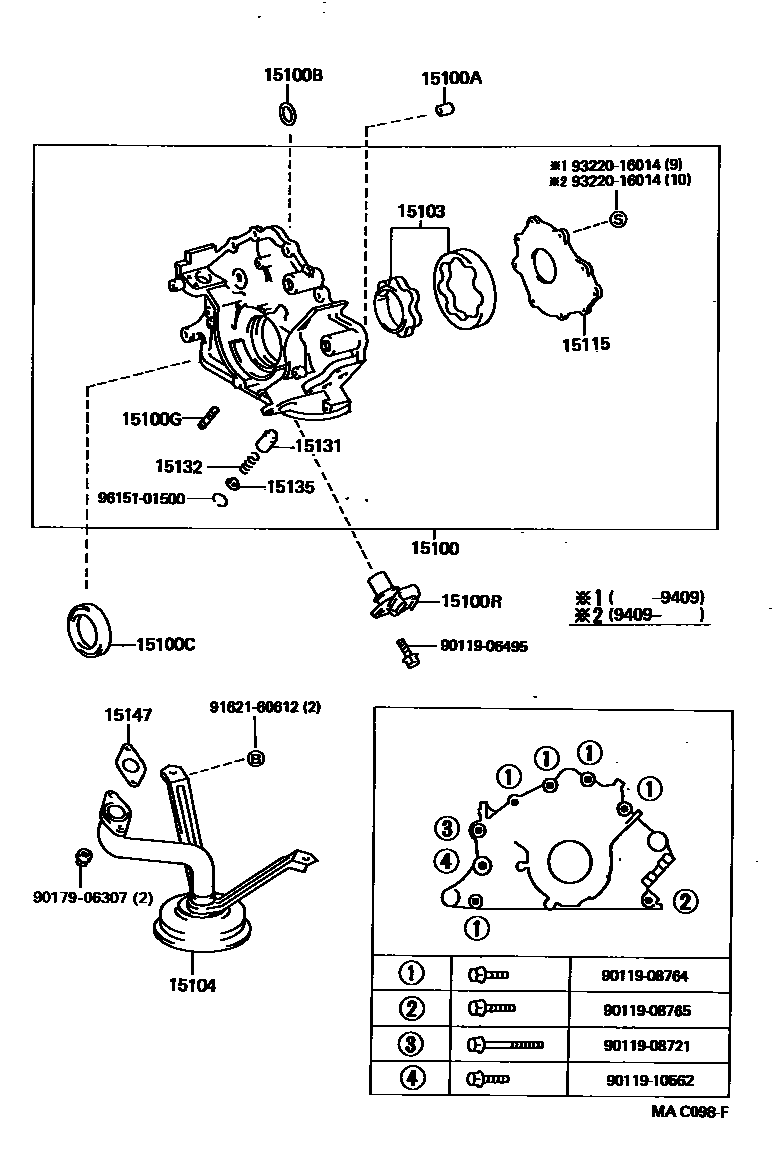

Toyota LEXUS LS400 — ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-50020i1UZFE..UCF10198912-199312

sub15100-50021

sub11348-50011

main15100-50021i1UZFE..UCF10199312-199409

sub15100-50022

sub90119-10791

main15100-50022i1UZFE..UCF10199409-199410

15100APIN, RING(FOR OIL PUMP SET)

main90253-13017i1UZFE..UCF10198912-199410

15100BRING, O(FOR OIL PUMP)

main96721-24025i1UZFE..UCF10198912-199410

15100CSEAL(FOR OIL PUMP)

main90311-43004i1UZFE..UCF10198912-199410

sub90311-43006

15100GBOLT,STUD(FOR OIL PUMP)

main16193-15010i1UZFE..UCF10198912-199410

15100RSENSOR, CRANK POSITION

main90919-05002i1UZFE..UCF10198912-199410

15103GEAR SET, OIL PUMP

main15103-50020i1UZFE..UCF10198912-199410

15104STRAINER SUB-ASSY, OIL

main15104-50021i1UZFE..UCF10199409-199410

main15104-50040i1UZFE..UCF10198912-199409

sub15104-50021

15115COVER, OIL PUMP

main15115-50020i1UZFE..UCF10198912-199409

main15115-50022i1UZFE..UCF10199409-199410

sub15115-50050

15131VALVE, OIL PUMP RELIEF

main15131-24010i1UZFE..UCF10198912-199410

15132SPRING, OIL PUMP RELIEF VALVE

main15132-62010i1UZFE..UCF10198912-199410

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i1UZFE..UCF10198912-199410

15147GASKET, OIL STRAINER

main15147-50010i1UZFE..UCF10198912-199410

9011906495

main90119-06495

9011908721

main90119-08721

9011908764

main90119-08764

9011908765

main90119-08765

9011910562

main90119-10562

9017906307

main90179-06307

9162160612

main91621-60612

9322016014

main93220-16014

9615101500

main96151-01500

22 parts on this diagram · 1 diagram in section
