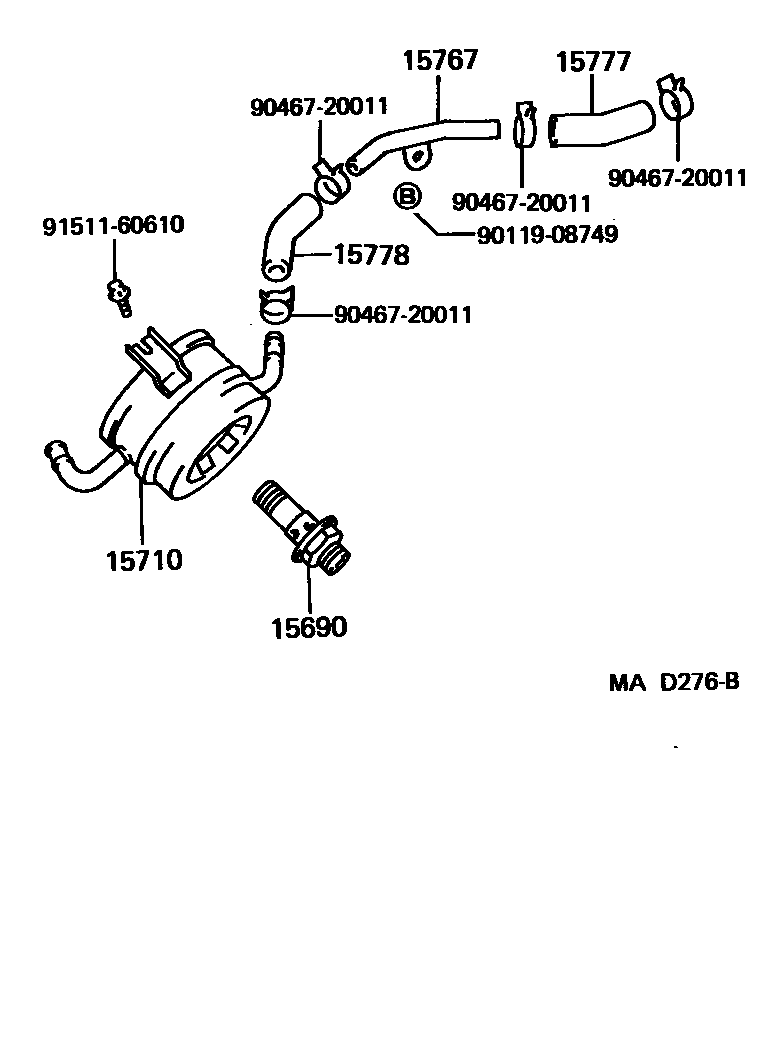

Toyota LEXUS LS400 — ENGINE OIL COOLER

15690VALVE ASSY, OIL COOLER RELIEF

main15690-50010i1UZFE..UCF10198912-199208

main15690-50010i1UZFE..UCF10..EUR,GEN,V199208-199410

W(TRAILER HITCH) OR SINGAPORE SPEC

15710COOLER ASSY, OIL

main15710-50010i1UZFE..UCF10198912-199208

main15710-50010i1UZFE..UCF10..EUR,GEN,V199208-199410

W(TRAILER HITCH) OR SINGAPORE SPEC

15767PIPE, OIL COOLER

main15767-50010i1UZFE..UCF10198912-199204

sub15767-50011

main15767-50011i1UZFE..UCF10199204-199208

main15767-50011i1UZFE..UCF10..EUR,GEN,V199208-199410

W(TRAILER HITCH) OR SINGAPORE SPEC

15777HOSE, OIL COOLER

main15777-50010i1UZFE..UCF10198912-199208

main15777-50010i1UZFE..UCF10..EUR,GEN,V199208-199410

W(TRAILER HITCH) OR SINGAPORE SPEC

15778HOSE, OIL COOLER, NO.2

main15778-50010i1UZFE..UCF10198912-199208

main15778-50010i1UZFE..UCF10..EUR,GEN,V199208-199410

W(TRAILER HITCH) OR SINGAPORE SPEC

9011908749

main90119-08749

9046720011

main90467-20011

9151160610

main91511-60610

8 parts on this diagram · 1 diagram in section
