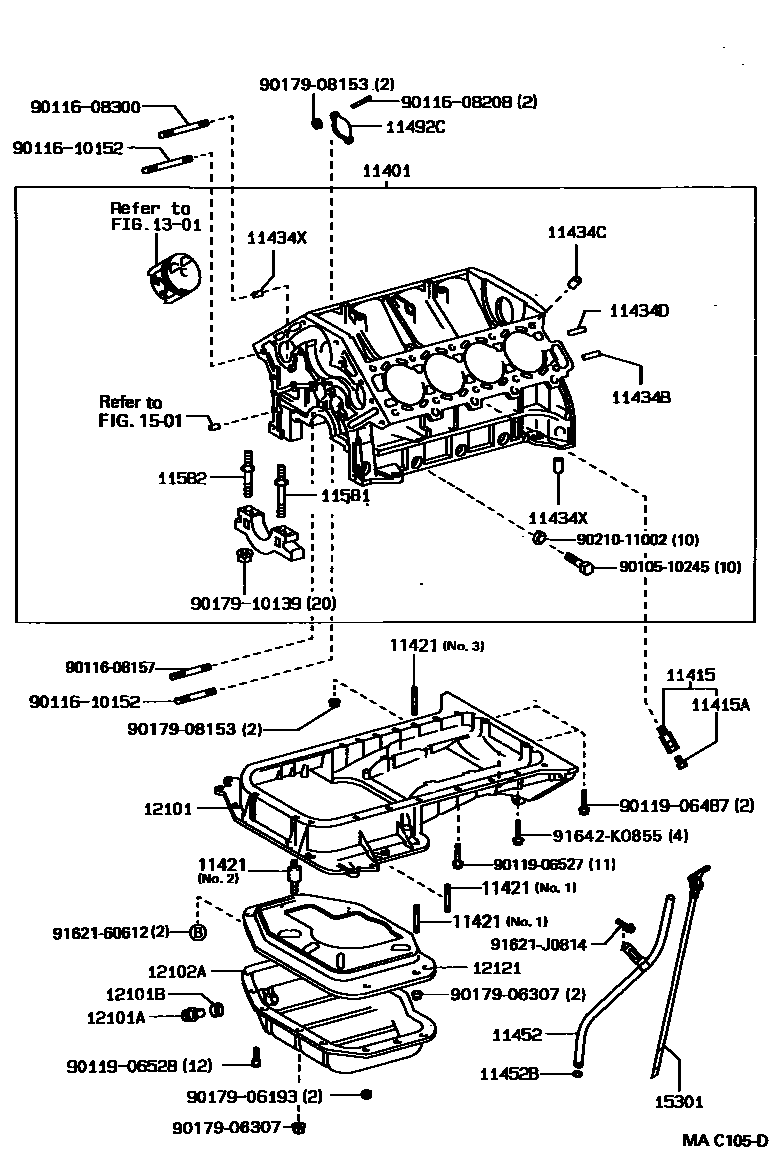

Toyota LEXUS LS400 — CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
RH
SINGAPORE SPEC,RH
HONG KONG SPEC
W(TRAILER HITCH)
LH
SINGAPORE SPEC,LH
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
SINGAPORE SPEC,RH
SINGAPORE SPEC
HONG KONG SPEC
RH
LH
SINGAPORE SPEC,LH
W(TRAILER HITCH)
11421BOLT, STUD(FOR OIL PAN)
NO.1
NO.2
NO.3
SINGAPORE SPEC
HONG KONG SPEC,NO.3
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=22,OD=10
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=20,OD=16
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=14,OD=6
11434XPIN, RING(FOR CHAIN CACE)
HONG KONG SPEC
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11492CPLATE, WATER SEAL
sub11492-20010
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12102APAN SUB-ASSY, OIL, NO.2
sub12102-50050
1301
1501
15301GAGE SUB-ASSY, OIL LEVEL
9010510245
main90105-10245
9011608157
main90116-08157
9011608208
main90116-08208
9011608300
main90116-08300
9011610152
main90116-10152
9011906487
main90119-06487
9011906527
main90119-06527
9011906528
main90119-06528
9017906193
main90179-06193
9017906307
main90179-06307
9017908153
main90179-08153
9017910139
main90179-10139
9021011002
main90210-11002
9162160612
main91621-60612
91621J0814
main91621-J0814
91642K0855
main91642-K0855
37 parts on this diagram · 1 diagram in section
