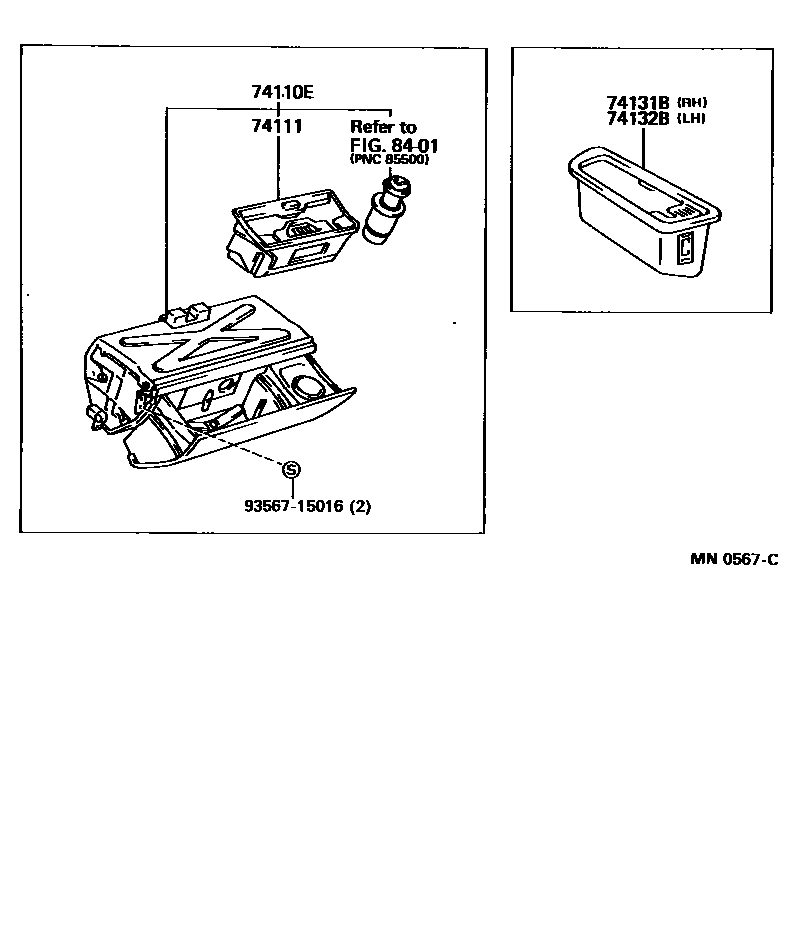

Toyota LEXUS LS400 — ASH RECEPTACLE

74110ERECEPTACLE ASSY, FRONT ASH

main74110-50010iUCF10..LHD198912-199006

sub74110-50011

main74110-50011iUCF10..LHD199006-199410

main74110-50020iUCF10..RHD198912-199006

sub74110-50021

main74110-50021iUCF10..RHD199006-199410

74111BOX, FRONT ASH RECEPTACLE

main74111-50010iUCF10198912-199006

sub74111-50011

main74111-50011iUCF10199006-199410

74131BBOX, REAR ASH RECEPTACLE, RH

main74131-50010iUCF10198912-199410

74132BBOX, REAR ASH RECEPTACLE, LH

main74132-50010iUCF10198912-199410

8401

9356715016

main93567-15016

6 parts on this diagram · 1 diagram in section
