Toyota LEXUS LS400 — ARMREST & VISOR

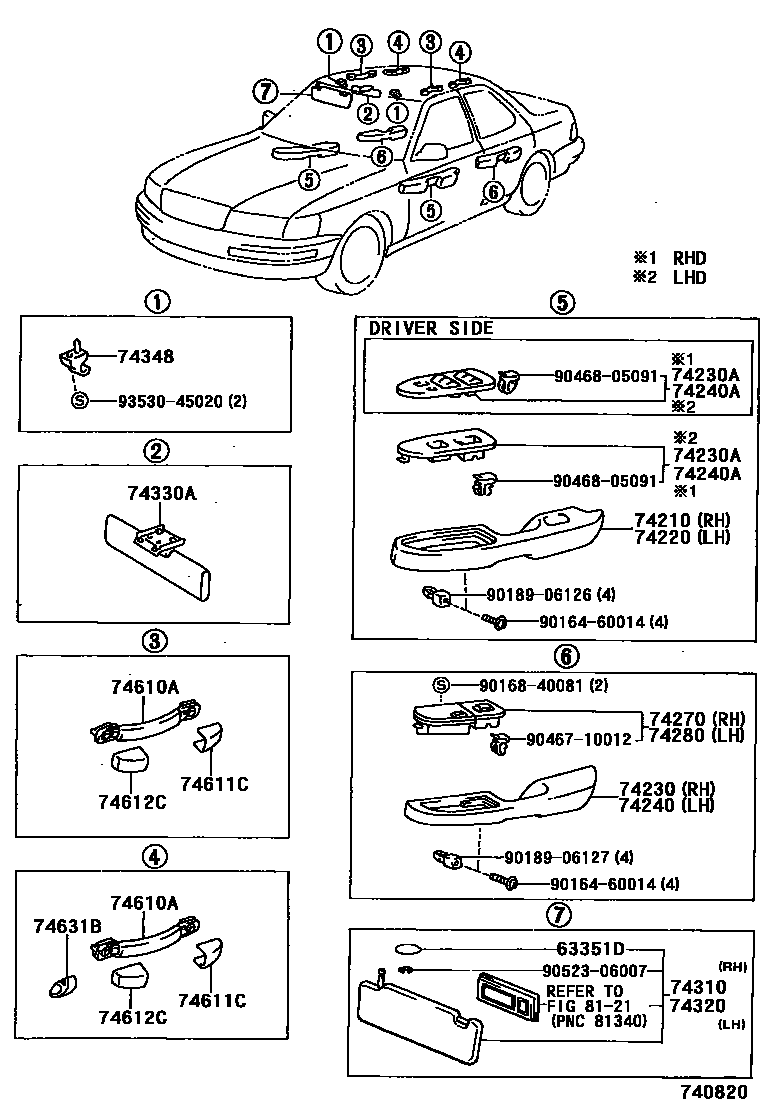

Parts diagram
63351DPAD, ROOF HEADLINING
main63351-50010i199105-199410
74210ARMREST ASSY, FRONT, RH
main74210-50010-02i198912-199108
DEEP RED,TRIM3#
sub74210-50010
main74210-50010-03i198912-199208
GRAY,TRIM1#
sub74210-50010
main74210-50010-04i198912-199208
BLUE,TRIM8#
sub74210-50010
main74210-50010-06i198912-199208
ROSE,TRIM4#
sub74210-50010
main74210-50010-08i198912-199208
IVORY,TRIM0#
sub74210-50010
main74210-50010-A0i199208-199410
IVORY,TRIM0#
sub74210-50010
main74210-50010-C0i199208-199410
BLACK,TRIM2#
sub74210-50010
main74210-50010-J0i199208-199410
EISEN BLUE,TRIM8#
sub74210-50010
main74210-50010-K0i199208-199410
ME. TAUPE,TRIM9#
sub74210-50010
main74210-50010-S7i199208-199410
SLATE GRAY,TRIM1#
sub74210-50010
main74210-50020-03i198912-199208
GRAY,TRIM1#
sub74210-50020
main74210-50020-04i198912-199208
BLUE,TRIM8#
sub74210-50020
main74210-50020-06i198912-199208
ROSE,TRIM4#
sub74210-50020
main74210-50020-08i198912-199208
IVORY,TRIM0#
sub74210-50020
main74210-50020-A0i199208-199410
IVORY,TRIM0#
sub74210-50020
main74210-50020-C0i199208-199410
BLACK,TRIM2#
sub74210-50020
main74210-50020-K0i199208-199410
ME. TAUPE,TRIM9#
sub74210-50020
main74210-50020-S7i199208-199410
SLATE GRAY,TRIM1#
sub74210-50020
main74210-50020-W4i199208-199410
EISEN BLUE,TRIM8#
sub74210-50020
74220ARMREST ASSY, FRONT, LH
main74220-50010-02i198912-199108
DEEP RED,TRIM3#
sub74220-50010
main74220-50010-03i198912-199208
GRAY,TRIM1#
sub74220-50010
main74220-50010-04i198912-199208
BLUE,TRIM8#
sub74220-50010
main74220-50010-06i198912-199208
ROSE,TRIM4#
sub74220-50010
main74220-50010-08i198912-199208
IVORY,TRIM0#
sub74220-50010
main74220-50010-A0i199208-199410
IVORY,TRIM0#
sub74220-50010
main74220-50010-C0i199208-199410
BLACK,TRIM2#
sub74220-50010
main74220-50010-K0i199208-199410
ME. TAUPE,TRIM9#
sub74220-50010
main74220-50010-S7i199208-199410
SLATE GRAY,TRIM1#
sub74220-50010
main74220-50010-W4i199208-199410
EISEN BLUE,TRIM8#
sub74220-50010
main74220-50020-03i198912-199208
GRAY,TRIM1#
main74220-50020-04i198912-199208
BLUE,TRIM8#
main74220-50020-06i198912-199208
ROSE,TRIM4#
main74220-50020-08i198912-199208
IVORY,TRIM0#
main74220-50020-A0i199208-199410
IVORY,TRIM0#
main74220-50020-C0i199208-199410
BLACK,TRIM2#
main74220-50020-K0i199208-199410
ME. TAUPE,TRIM9#
main74220-50020-S7i199208-199410
SLATE GRAY,TRIM1#
main74220-50020-W4i199208-199410
EISEN BLUE,TRIM8#
74230ARMREST ASSY, REAR, RH
main74250-50010-02i198912-199108
DEEP RED,TRIM3#
sub74250-50010
main74250-50010-03i198912-199208
GRAY,TRIM1#
sub74250-50010
main74250-50010-04i198912-199208
BLUE,TRIM8#
sub74250-50010
main74250-50010-06i198912-199208
ROSE,TRIM4#
sub74250-50010
main74250-50010-08i198912-199208
IVORY,TRIM0#
sub74250-50010
main74250-50010-A0i199208-199410
IVORY,TRIM0#
sub74250-50010
main74250-50010-C0i199208-199410
BLACK,TRIM2#
sub74250-50010
main74250-50010-K0i199208-199410
ME. TAUPE,TRIM9#
sub74250-50010
main74250-50010-S7i199208-199410
SLATE GRAY,TRIM1#
sub74250-50010
main74250-50010-W4i199208-199410
EISEN BLUE,TRIM8#
sub74250-50010
74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH
main74230-50010i198912-199410
main74230-50020i198912-199410
74240ARMREST ASSY, REAR, LH
main74260-50010-02i198912-199108
DEEP RED,TRIM3#
sub74260-50010
main74260-50010-03i198912-199208
GRAY,TRIM1#
sub74260-50010
main74260-50010-04i198912-199208
BLUE,TRIM8#
sub74260-50010
main74260-50010-06i198912-199208
ROSE,TRIM4#
sub74260-50010
main74260-50010-08i198912-199208
IVORY,TRIM0#
sub74260-50010
main74260-50010-A0i199208-199410
IVORY,TRIM0#
sub74260-50010
main74260-50010-C0i199208-199410
BLACK,TRIM2#
sub74260-50010
main74260-50010-K0i199208-199410
ME. TAUPE,TRIM9#
sub74260-50010
main74260-50010-S7i199208-199410
SLATE GRAY,TRIM1#
sub74260-50010
main74260-50010-W4i199208-199410
EISEN BLUE,TRIM8#
sub74260-50010
74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH
main74240-50010i198912-199410
main74240-50020i198912-199410
74270PANEL ASSY, REAR DOOR ARMREST BASE, RH
main74270-50010i198912-199410
74280PANEL ASSY, REAR DOOR ARMREST BASE, LH
main74280-50010i198912-199410
74310VISOR ASSY, RH
main74310-59015-B0i198912-199108
SHADOW GRAY,TRIM1#
main74310-59015-D0i198912-199108
RED,TRIM3#
main74310-59015-E0i198912-199108
GREIGE,TRIM0#
main74310-59015-E1i198912-199108
DARK ROSE,TRIM4#
main74310-59015-J0i198912-199108
DARK BLUE,TRIM8#
main74310-59016-B0i199108-199208
SHADOW GRAY,TRIM1#
main74310-59016-E0i199108-199208
GREIGE,TRIM0#
main74310-59016-E1i199108-199208
DARK ROSE,TRIM4#
main74310-59016-J0i199108-199208
DARK BLUE,TRIM8#
main74310-59025-B0i198912-199108
SHADOW GRAY,TRIM1#
main74310-59025-E0i198912-199108
GREIGE,TRIM0#
main74310-59025-E1i198912-199108
DARK ROSE,TRIM4#
main74310-59025-J0i198912-199108
DARK BLUE,TRIM8#
main74310-59026-B0i199108-199208
SHADOW GRAY,TRIM1#
main74310-59026-E0i199108-199208
GREIGE,TRIM0#
main74310-59026-E1i199108-199208
DARK ROSE,TRIM4#
main74310-59026-J0i199108-199208
DARK BLUE,TRIM8#
main74310-59055-B0i199208-199410
SHADOW GRAY,TRIM1#
main74310-59055-C0i199208-199410
BLACK,TRIM2#
main74310-59055-E0i199208-199410
OAK,TRIM0#
main74310-59055-J0i199208-199410
DK. BLUE,TRIM8#
main74310-59055-K0i199208-199410
TAUPE,TRIM9#
74320VISOR ASSY, LH
main74320-59025-B0i198912-199108
SHADOW GRAY,TRIM1#
main74320-59025-E0i198912-199108
GREIGE,TRIM0#
main74320-59025-E1i198912-199108
DARK ROSE,TRIM4#
main74320-59025-J0i198912-199108
DARK BLUE,TRIM8#
main74320-59026-B0i199108-199208
SHADOW GRAY,TRIM1#
main74320-59026-E0i199108-199208
GREIGE,TRIM0#
main74320-59026-E1i199108-199208
DARK ROSE,TRIM4#
main74320-59026-J0i199108-199208
DARK BLUE,TRIM8#
main74320-59035-B0i198912-199108
SHADOW GRAY,TRIM1#
main74320-59035-D0i198912-199108
RED,TRIM3#
main74320-59035-E0i198912-199108
GREIGE,TRIM0#
main74320-59035-E1i198912-199108
DARK ROSE,TRIM4#
main74320-59035-J0i198912-199108
DARK BLUE,TRIM8#
main74320-59045-B0i199208-199410
SHADOW GRAY,TRIM1#
main74320-59045-C0i199208-199410
BLACK,TRIM2#
main74320-59045-E0i199208-199410
OAK,TRIM0#
main74320-59045-J0i199208-199410
DK. BLUE,TRIM8#
main74320-59045-K0i199208-199410
TAUPE,TRIM9#
main74320-59055-B0i199108-199208
SHADOW GRAY,TRIM1#
main74320-59055-E0i199108-199208
GREIGE,TRIM0#
main74320-59055-E1i199108-199208
DARK ROSE,TRIM4#
main74320-59055-J0i199108-199208
DARK BLUE,TRIM8#
74330AVISOR ASSY, CENTER
main74330-50010-02i198912-199108
DEEP RED,TRIM3#
sub74330-50010
main74330-50010-03i198912-199208
SHADOW GRAY,TRIM1#
sub74330-50010
main74330-50010-04i198912-199208
DARK BLUE,TRIM8#
sub74330-50010
main74330-50010-05i198912-199208
GREIGE,TRIM0#
sub74330-50010
main74330-50010-06i198912-199208
DARK ROSE,TRIM4#
sub74330-50010
main74330-50020-B1i199208-199410
SHADOW GRAY,TRIM1#
main74330-50020-C1i199208-199410
BLACK,TRIM2#
main74330-50020-E1i199208-199410
OAK,TRIM0#
main74330-50020-J1i199208-199410
DK. BLUE,TRIM8#
main74330-50020-K1i199208-199410
TAUPE,TRIM9#
74348HOLDER, VISOR
main74348-50010-02i198912-199108
DEEP RED,TRIM3#
main74348-50010-03i198912-199208
SHADOW GRAY,TRIM1#
main74348-50010-04i198912-199208
DARK BLUE,TRIM8#
main74348-50010-05i198912-199208
GREIGE,TRIM0#
main74348-50010-06i198912-199208
DARK ROSE,TRIM4#
main74348-50010-C0i199208-199410
BLACK,TRIM2#
main74348-50010-E0i199208-199410
OAK,TRIM0#
main74348-50010-K0i199208-199410
TAUPE,TRIM9#
main74348-50010-P0i199208-199410
SHADOW GRAY,TRIM1#
main74348-50010-W3i199208-199410
DK. BLUE,TRIM8#
74610AGRIP SUB-ASSY, ASSIST
main74610-50010-02i198912-199108
DEEP RED,TRIM3#,FRONT
sub74610-50010
main74610-50010-03i198912-199208
SHADOW GRAY,TRIM1#,FRONT
sub74610-50010
main74610-50010-04i198912-199208
DARK BLUE,TRIM8#,FRONT
sub74610-50010
main74610-50010-05i198912-199208
GREIGE,TRIM0#,FRONT
sub74610-50010
main74610-50010-06i198912-199208
DARK ROSE,TRIM4#,FRONT
sub74610-50010
main74610-50010-C0i199208-199410
BLACK,TRIM2#,FRONT
sub74610-50010
main74610-50010-E0i199208-199410
OAK,TRIM0#,FRONT
sub74610-50010
main74610-50010-K0i199208-199410
TAUPE,TRIM9#,FRONT
sub74610-50010
main74610-50010-P0i199208-199410
SHADOW GRAY,TRIM1#,FRONT
sub74610-50010
main74610-50010-W3i199208-199410
DK. BLUE,TRIM8#,FRONT
sub74610-50010
main74620-50010-02i198912-199108
DEEP RED,TRIM3#,REAR
sub74620-50010
main74620-50010-03i198912-199208
SHADOW GRAY,TRIM1#,REAR
sub74620-50010
main74620-50010-04i198912-199208
DARK BLUE,TRIM8#,REAR
sub74620-50010
main74620-50010-05i198912-199208
GREIGE,TRIM0#,REAR
sub74620-50010
main74620-50010-06i198912-199208
DARK ROSE,TRIM4#,REAR
sub74620-50010
main74620-50010-C0i199208-199410
BLACK,TRIM2#,REAR
sub74620-50010
main74620-50010-E0i199208-199410
OAK,TRIM0#,REAR
sub74620-50010
main74620-50010-K0i199208-199410
TAUPE,TRIM9#,REAR
sub74620-50010
main74620-50010-P0i199208-199410
SHADOW GRAY,TRIM1#,REAR
sub74620-50010
main74620-50010-W3i199208-199410
DK. BLUE,TRIM8#,REAR
sub74620-50010
74611CCOVER, ASSIST GRIP, LH
main74611-50010-02i198912-199108
DEEP RED,TRIM3#
sub74611-50010
main74611-50010-03i198912-199208
SHADOW GRAY,TRIM1#
sub74611-50010
main74611-50010-04i198912-199208
DARK BLUE,TRIM8#
sub74611-50010
main74611-50010-05i198912-199208
GREIGE,TRIM0#
sub74611-50010
main74611-50010-06i198912-199208
DARK ROSE,TRIM4#
sub74611-50010
main74611-50010-C0i199208-199410
BLACK,TRIM2#
sub74611-50010
main74611-50010-E0i199208-199410
OAK,TRIM0#
sub74611-50010
main74611-50010-K0i199208-199410
TAUPE,TRIM9#
sub74611-50010
main74611-50010-P0i199208-199410
SHADOW GRAY,TRIM1#
sub74611-50010
main74611-50010-W3i199208-199410
DK. BLUE,TRIM8#
sub74611-50010
74612CCOVER, ASSIST GRIP, RH
main74612-50010-02i198912-199108
DEEP RED,TRIM3#
sub74612-50010
main74612-50010-03i198912-199208
SHADOW GRAY,TRIM1#
sub74612-50010
main74612-50010-04i198912-199208
DARK BLUE,TRIM8#
sub74612-50010
main74612-50010-05i198912-199208
GREIGE,TRIM0#
sub74612-50010
main74612-50010-06i198912-199208
DARK ROSE,TRIM4#
sub74612-50010
main74612-50010-C0i199208-199410
BLACK,TRIM2#
sub74612-50010
main74612-50010-E0i199208-199410
OAK,TRIM0#
sub74612-50010
main74612-50010-K0i199208-199410
TAUPE,TRIM9#
sub74612-50010
main74612-50010-P0i199208-199410
SHADOW GRAY,TRIM1#
sub74612-50010
main74612-50010-W3i199208-199410
DK. BLUE,TRIM8#
sub74612-50010
74631BHOOK, COAT
main74631-50010-02i198912-199108
DEEP RED,TRIM3#
sub74631-50010
main74631-50010-03i198912-199208
SHADOW GRAY,TRIM1#
sub74631-50010
main74631-50010-04i198912-199208
DARK BLUE,TRIM8#
sub74631-50010
main74631-50010-05i198912-199208
GREIGE,TRIM0#
sub74631-50010
main74631-50010-06i198912-199208
DARK ROSE,TRIM4#
sub74631-50010
main74631-50010-C0i199208-199410
BLACK,TRIM2#
sub74631-50010
main74631-50010-E0i199208-199410
OAK,TRIM0#
sub74631-50010
main74631-50010-K0i199208-199410
TAUPE,TRIM9#
sub74631-50010
main74631-50010-P0i199208-199410
SHADOW GRAY,TRIM1#
sub74631-50010
main74631-50010-W3i199208-199410
DK. BLUE,TRIM8#
sub74631-50010
8121
9016460014
main90164-60014
9016840081
main90168-40081
9018906126
main90189-06126
9018906127
main90189-06127
9046710012
main90467-10012
9046805091
main90468-05091
9052306007
main90523-06007
9353045020
main93530-45020

26 parts on this diagram · 1 diagram in section

Toyota LEXUS LS400 ARMREST & VISOR — Parts Diagram | EPC Data
