Toyota LEXUS LS400 — AIR BAG

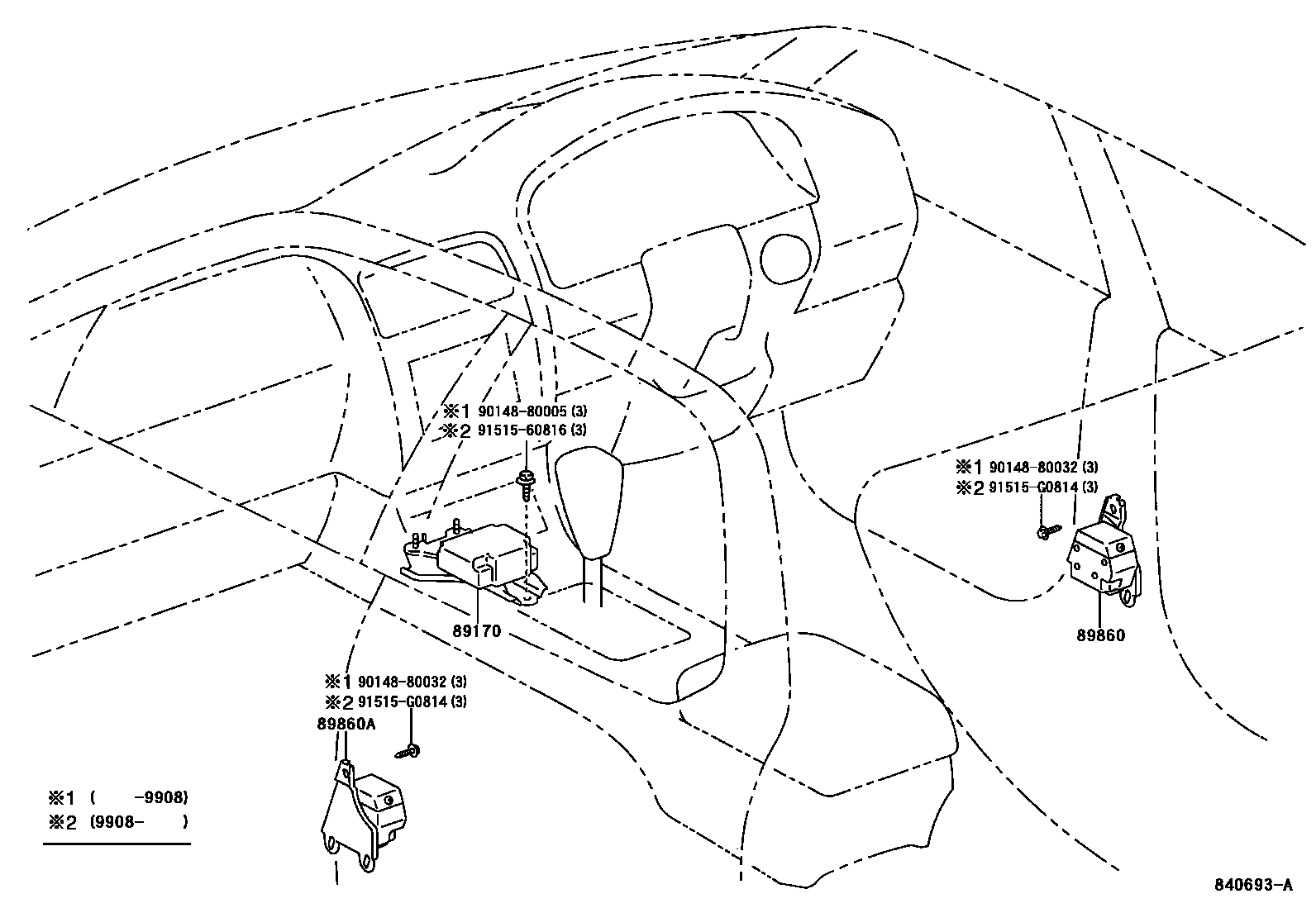

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-50040i199410-199608

main89170-50050i199608-199707

main89170-50060i199707

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-50010i199608-199707

main89860-50040i199707

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-50040i199707

main89860-50020i199608-199707

9014880005

main90148-80005

9014880032

main90148-80032

9151560816

main91515-60816

91515G0814

main91515-G0814

7 parts on this diagram · 1 diagram in section

AIR BAG for Toyota LEXUS LS400

This section contains 7 genuine Toyota parts for the AIR BAG system of the Toyota LEXUS LS400. Key components include: SENSOR ASSY, AIRBAG, SENSOR ASSY, SIDE AIRBAG, RH, SENSOR ASSY, SIDE AIRBAG, LH.
