Toyota LEXUS LS SERIES — WINDSHIELD WASHER

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301BCLIP, WASHER

main90467-07220×3i202011-202410

85307AGROMMET SUB-ASSY, WASHER, NO.1

main85307-50010i202011-202509

85307BGROMMET SUB-ASSY, WASHER, NO.2

main85307-50020i202011-202410

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-11030i201710-201801

main85330-11040i201802-202010

85317WIRING ASSY, WASHER

main85317-50210supersedes 85317-50221i202310-202410

main85317-50221i202011-202410

85319DPACKING, FRONT WASHER

main85319-33230i202011-202410

85330JAR ASSY, WINDSHIELD WASHER

main85355-50101i201710-202009

main85355-50102i202009-202010

main85355-50103i202104-202410

main85355-50120supersedes 85355-50103i202310-202410

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i201710-202010

85332CAP, WINDSHIELD WASHER JAR

main85316-50220i201710-202010

main85316-50260i202011-202410

85333FILTER, WINDSHIELD WASHER JAR

main85312-50010i201710-202009

main85312-50011×2i202104-202410

85336DPACKING, WINDSHIELD WASHER JAR

main85336-50200i201710-202010

85336FPACKING, WINDSHIELD WASHER JAR

main85336-50220i201710-202010

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85376-50170×2i201710-201903

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main90099-33080×14i201710-202010

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85375-50180i201710-201903

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85355-20200×2i201710-202010

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-50170i201710-201903

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i201710-202010

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-10260i201710-202010

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201710-202002

main85375-10260i202002-202010

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i201710-202010

85349BJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-10260i202011-202509

85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4

main85355-20200×2i202011-202410

85349DJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-14560×2i201710-202010

85349EJOINT, WINDSHIELD WASHER HOSE, NO.5

main85375-10260i201710-202010

85350FJOINT, WINDSHIELD WASHER ELBOW, NO.5

main85355-20200×2i201710-202010

85350GJOINT, WINDSHIELD WASHER ELBOW, NO.6

main85377-50170×2i201710-202010

85350HJOINT, WINDSHIELD WASHER ELBOW, NO.7

main85355-20200i201710-202010

85350JJOINT, WINDSHIELD WASHER ELBOW, NO.8

main85355-20200i201710-202010

85350KJOINT, WINDSHIELD WASHER ELBOW, NO.9

main85377-50170×2i201710-202010

85350LJOINT, WINDSHIELD WASHER ELBOW, NO.10

main85355-20200i201710-202010

85350MJOINT, WINDSHIELD WASHER ELBOW, NO.11

main85355-20200i201710-202010

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020×2i201710-202010

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-50220i202011-202410

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85361-50081×2i201710-202010

85369CLAMP

main90099-35033×2i201710-202010

85370HOSE ASSY, WINDSHIELD WASHER

main85370-50170i201710-202008

main85370-50171i202011-202509

main85370-50180i201710-202008

main85370-50181i202011-202410

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main90099-59398i202011-202410

85371XHOSE, WINDSHIELD WASHER(FROM JOINT TO TOINT)

main90099-33080i201903-202010

main90099-62168i201710-201903

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85336-12230×2i201710-202010

L=15

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201710-202010

L=1450(*H,L=990)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i201710-202010

L=1450(*H,L=1000)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i201710-202010

L=1450(*H,L=180)

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080i201710-202010

L=1450(*H,L=180)

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080×2i202011-202509

L=1450(*H,L=230); L=1450(*H,L=240)

85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7

main90099-33080i201710-202010

L=1450(*H,L=1050); L=1450(*H,L=205)

85372YHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8

main85336-12230×2i202011-202509

main90099-33080i202011-202509

85373KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9

main90099-33080i201710-202010

L=1450(*H,L=120); L=1450(*H,L=125)

85373LGROMMET, WASHER

main85373-11020×4i201710-202010

85373MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.10

main90099-33080i202011-202509

L=1450(*H,L=100); L=1450(*H,L=70)

85373NHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.11

main90099-33080i201710-202010

L=1450(*H,L=55); L=1450(*H,L=60)

85373PHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.12

main90099-33080i201710-202010

L=1450(*H,L=75); L=1450(*H,L=90)

85373QHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.13

main90099-33080i201710-202010

L=1450(*H,L=340); L=1450(*H,L=65)

85373THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.14

main90099-33080i201710-202010

L=1450(*H,L=320); L=1450(*H,L=50)

85373UHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.15

main90099-33080i201710-202010

L=1450; L=1450(*H,L=135)

85373VHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.16

main85336-12230i201710-202010

L=15

main90099-33080i201710-202010

L=1450(*H,L=125)

85373WHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.17

main90099-33080i201710-202010

L=1450(*H,L=30); L=1450(*H,L=50)

85373ZHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.18

main90099-33080i201710-202010

L=1450

85374APROTECTOR, WASHER HOSE

main85372-50020i201710-202010

85374LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.19

main85336-12230i202011-202509

L=15

main90099-33080×2i202011-202410

L=1450(*H,L=240)

85374MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.20

main90099-33080i201710-202010

L=1450(*H,L=60)

85374NHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.21

main90099-33080i201710-202010

L=1450(*H,L=85)

85389BPROTECTOR, WINDSHIELD WASHER

main85389-50180i201710-202010

85389EPROTECTOR, WINDSHIELD WASHER, NO.2

main85389-12880i201710-202010

85397SWITCH ASSY,LEVEL WARNING

main85397-52100i201710-202010

8271111020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-11020

8271124690WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24690

8271133770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33770

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

9011906767

main90119-06767

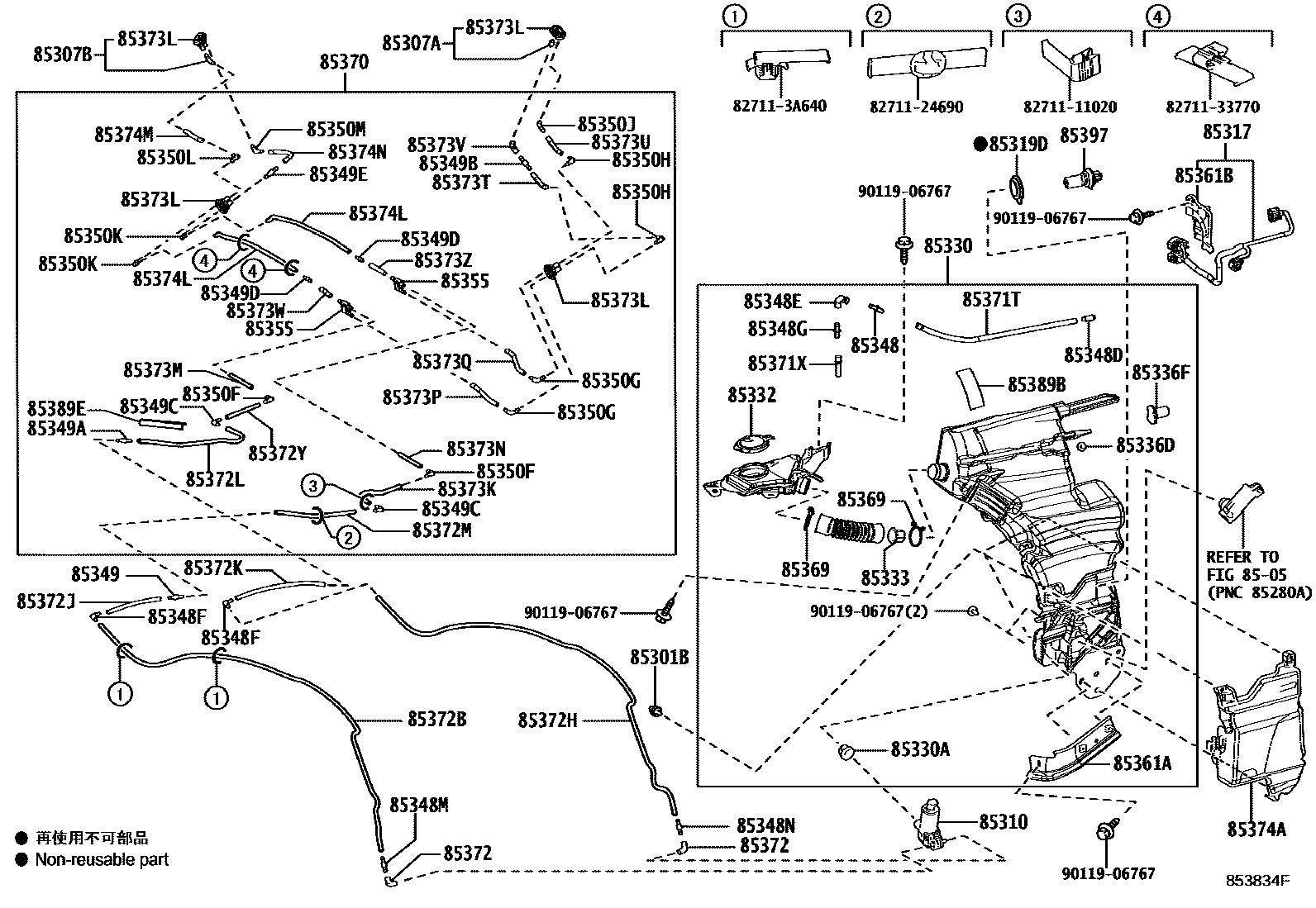

71 parts on this diagram · 8 diagrams in section

WINDSHIELD WASHER for Toyota LEXUS LS SERIES
