Toyota LEXUS LS SERIES — REAR DOOR WINDOW REGULATOR & HINGE

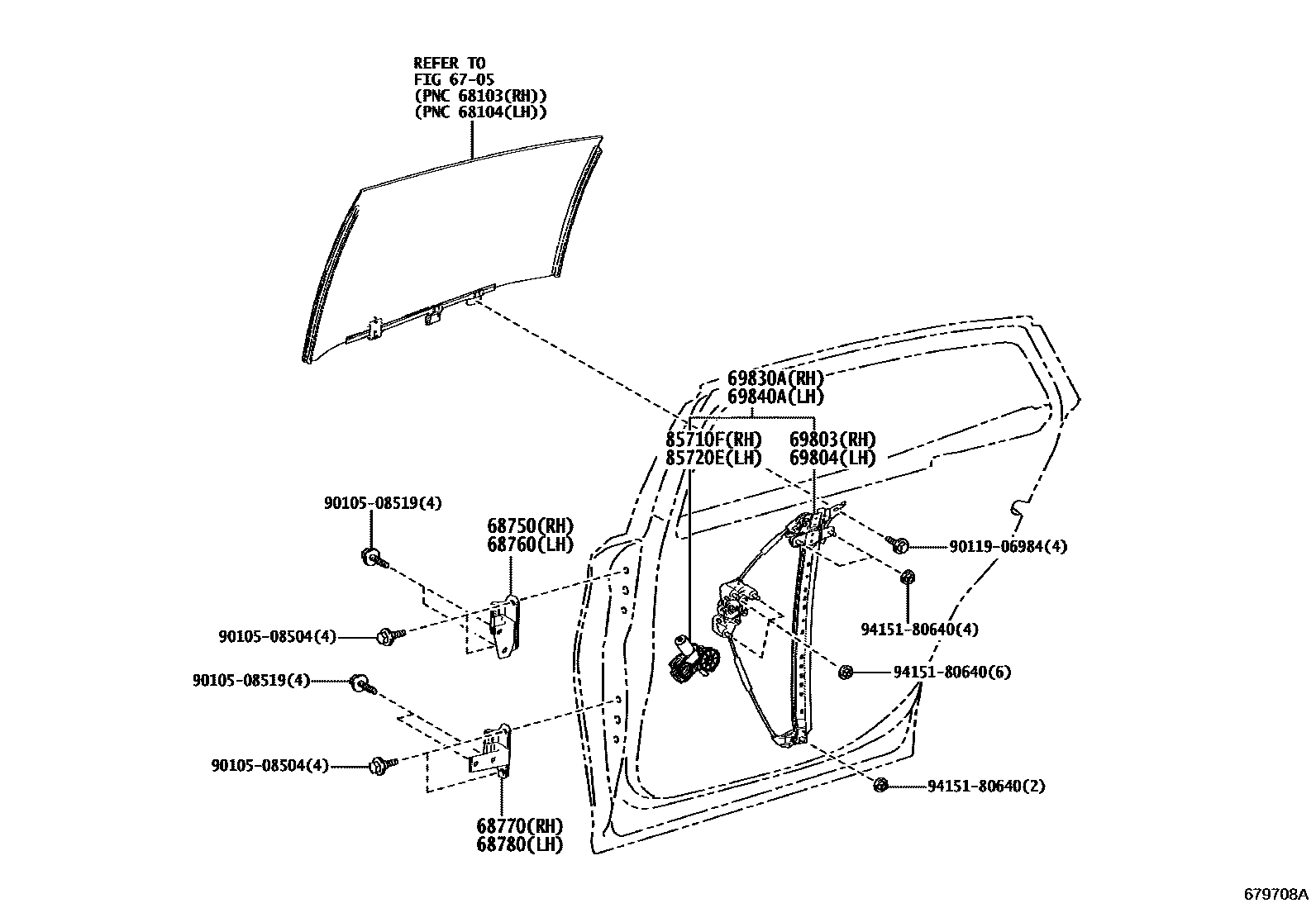

Parts diagram

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-50061i201710-201902

main68750-50062i201903-202010

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-50061i201710-201902

main68760-50062i202011-202410

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-50051i201710-201902

main68770-50052i201903-202010

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-50061i201710-201902

main68780-50062i201903-202010

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-50050i202310-202509

main69803-50060i201710-202010

main69803-50061i202105-202410

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-50050i202310-202410

main69804-50060i201710-202010

main69804-50061i202105-202410

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-50080i201710-202010

main69830-50081i202105-202310

main69830-50090i202310-202410

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-50080i201710-202010

main69840-50081i202105-202310

main69840-50090i202310-202410

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-50140i201710-202010

main85710-50170i202310-202410

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-50140i201710-202010

main85720-50170i202310-202410

9010508504

main90105-08504

9010508519

main90105-08519

9011906984

main90119-06984

9415180640

main94151-80640

15 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota LEXUS LS SERIES

This section contains 15 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota LEXUS LS SERIES. Key components include: REAR DOOR PANEL & GLASS, HINGE ASSY, REAR DOOR, UPPER RH, HINGE ASSY, REAR DOOR, UPPER LH, HINGE ASSY, REAR DOOR, LOWER RH, HINGE ASSY, REAR DOOR, LOWER LH.
