Toyota LEXUS LS SERIES — PARTIAL ENGINE ASSEMBLY

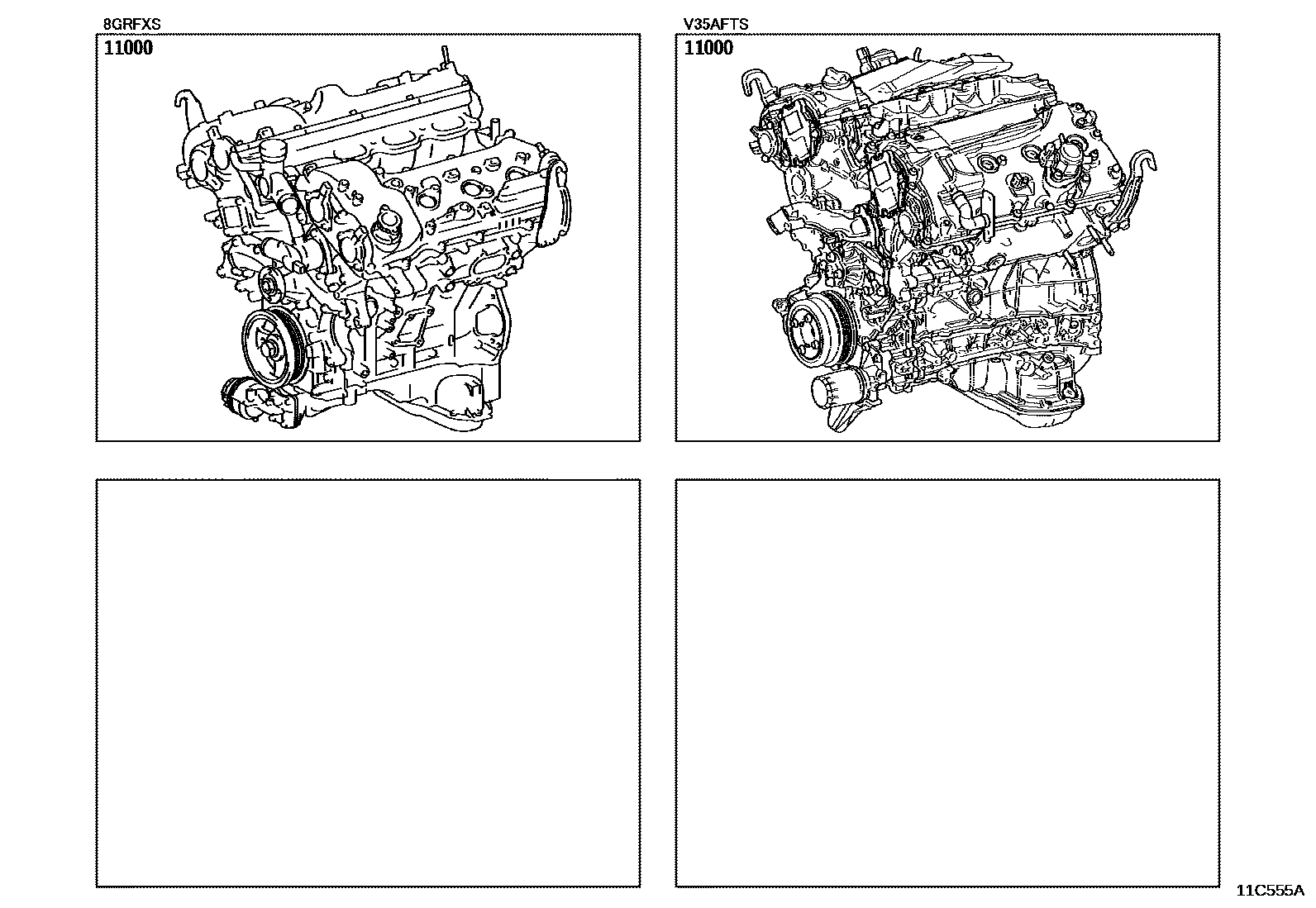

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-31R50i201710-202404

main19000-31R51i202404-202509

main19000-31R90i201710-202404

main19000-31R91i202404-202410

main19000-31S00i201710-202404

main19000-31S01i202404-202509

main19000-70480i201712-201802

main19000-70481i201803-202001

main19000-70510i202001-202010

main19000-70540i202011-202410

1 parts on this diagram · 1 diagram in section
