Toyota LEXUS LS SERIES — MOUNTING

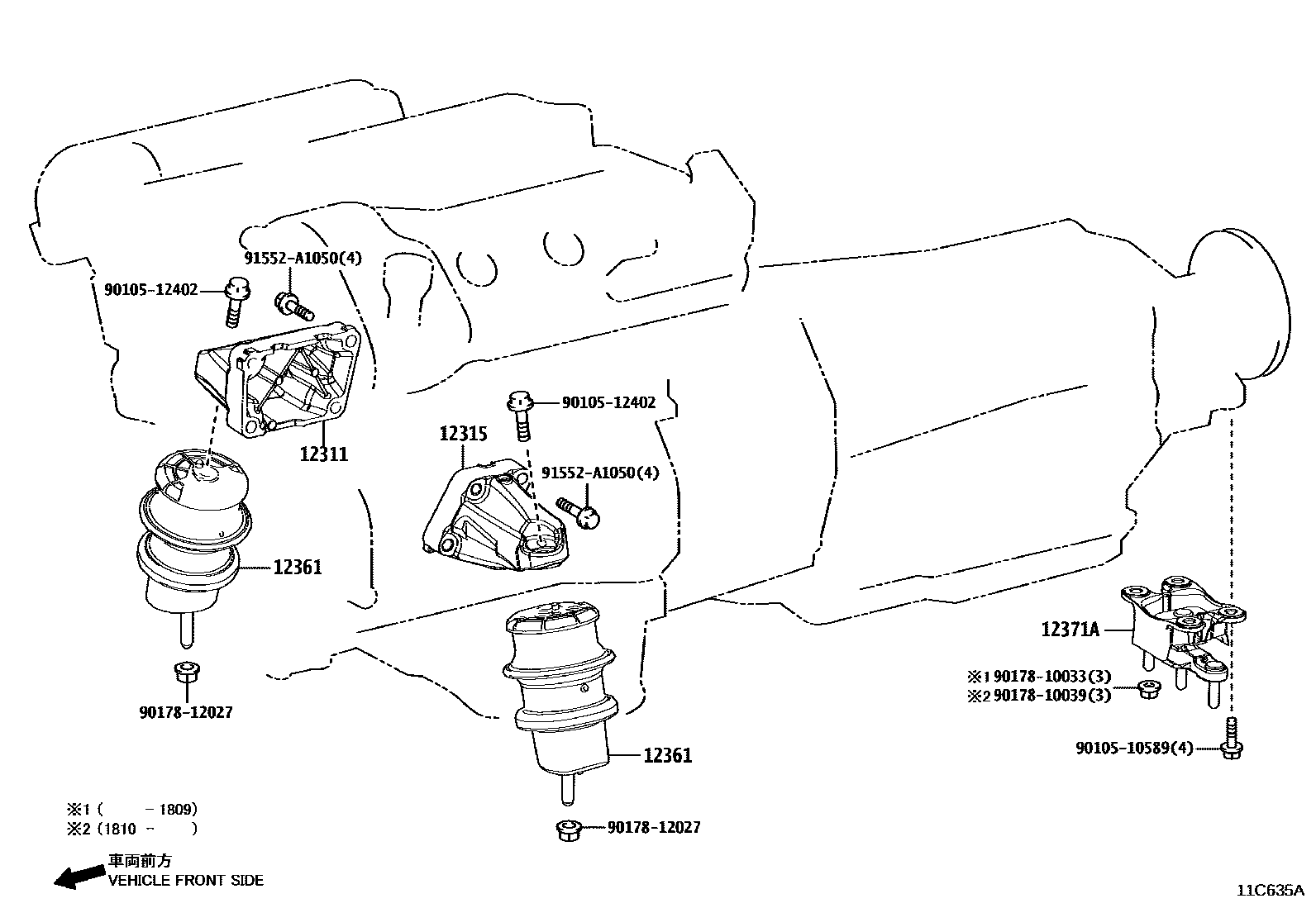

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31230i202011-202410

main12311-31240i201710-202010

main12311-70180i202011-202410

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31220i202011-202410

main12315-31230i201710-202010

main12315-70150i201712-202010

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31500×2i202011-202509

main12361-31510×2i201710-202004

main12361-31560×2i202005-202010

main12361-70260×2i201712-202004

main12361-70310×2i202011-202410

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-31420i202011-202509

main12371-31430i202011-202509

main12371-70110i201710-202010

main12371-70120i202011-202410

9010510589

main90105-10589

9010512402

main90105-12402

9017810033

main90178-10033

9017810039

main90178-10039

9017812027

main90178-12027

91552A1050

main91552-A1050

10 parts on this diagram · 3 diagrams in section

MOUNTING for Toyota LEXUS LS SERIES

This section contains 16 genuine Toyota parts for the MOUNTING system of the Toyota LEXUS LS SERIES. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR, BRACKET SUB-ASSY, ALTERNATOR.
