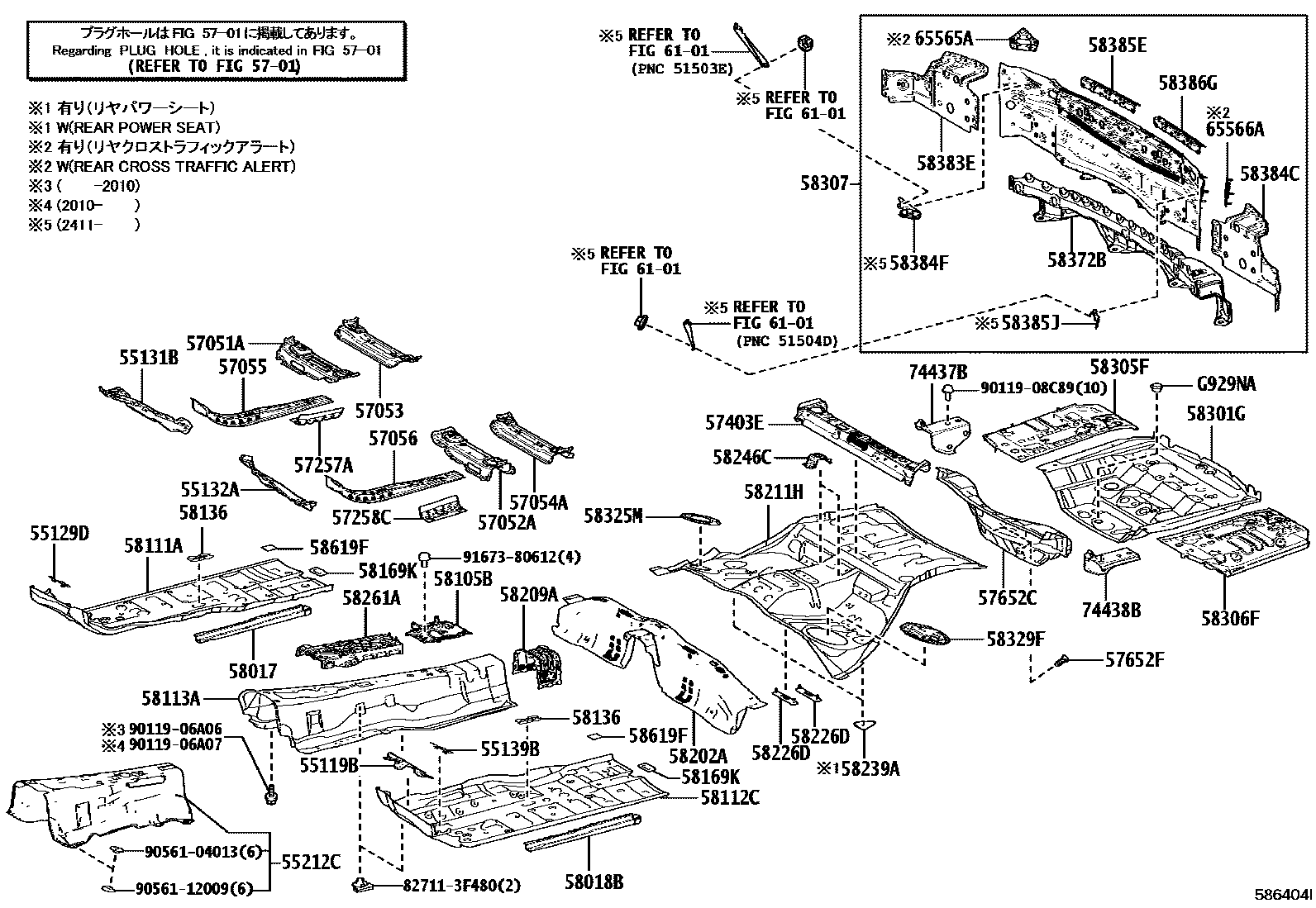

Toyota LEXUS LS SERIES — FLOOR PAN & LOWER BACK PANEL

55119BEXTENSION, DASH PANEL, LH

main55119-11010i202011-202410

main55119-50020i202011-202410

55129DCOVER, DASH PANEL HOLE, RH

main55129-11010i201710-202010

55131BREINFORCEMENT, TOE BOARD, RH

main55131-11010i201710-202010

55132AREINFORCEMENT, TOE BOARD, LH

main55132-11010i202011-202410

55139BCOVER, DASH PANEL HOLE, LH

main55139-11010i202011-202509

55212CSILENCER, FRONT PANEL, LOWER

main55212-11010i202011-202509

main55212-50080i202011-202509

5701HOLE PLUG

→ Go to FIG 57-01

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-50030i202011-202509

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-50040i201710-202010

main57052-50050i202011-202509

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-50040i202011-202509

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-50040i202011-202410

main57054-50050i202011-202410

57055REINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.5

main57055-50030i202011-202410

57056REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.6

main57056-50030i202011-202509

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-11010i201710-202010

main57257-50070i202011-202509

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-11010i202011-202509

main57258-50070i202011-202509

57403EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57403-11010i201710-201812

main57403-11011i202011-202509

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-50903i201710-202004

main57652-50906i202005-202010

main57652-50908i202208-202310

main57652-50910i202310-202410

57652FBOLT, WELD(FOR REAR FLOOR CROSSMEMBER)

main90115-06242i202310-202410

58017PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH

main58017-50020i201710-201912

main58017-50021i202001-202010

58018BPANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH

main58017-50020i201710-201912

main58017-50021i202011-202509

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-50030i202011-202509

58111APAN, FRONT FLOOR, RH

main58111-50908i202011-202509

main58111-50909i202011-202509

58112CPAN, FRONT FLOOR, LH

main58112-50911i202011-202509

main58112-50912i202011-202410

58113APANEL, FRONT FLOOR, CENTER

main58113-50921i201710-201912

main58113-50922i201710-201910

main58113-50925i202011-202509

main58113-50926i202011-202410

58136COVER, FRONT FLOOR HOLE

main58136-11010×2i201710-202010

58169KPATCH, FRONT FLOOR, REAR

main58169-11010×2i202011-202509

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-50010i202011-202410

main58202-50022i202011-202410

"EXECUTIVE"*(E); "VERSION L"*(L)

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-50050i202011-202509

58211HPAN, CENTER FLOOR

main58211-50939supersedes 58211-50937i202011-202509

"EXECUTIVE"*(E); "VERSION L"*(L)

main58211-50940i202011-202410

"EXECUTIVE"*(E); "VERSION L"*(L)

58226DPATCH, BRACKET CENTER MOUNTING

main58226-50010×2i201710-202010

58239APLATE, BELT ANCHOR NUT

main58239-50030×2i202011-202410

"EXECUTIVE"*(E); "VERSION L"*(L)

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-50020×2i201710-202010

58261ACOVER, TRANSMISSION

main58261-11010i202011-202509

58301GPAN SUB-ASSY, REAR FLOOR

main58301-50904i201710-201909

main58301-50906i202011-202509

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-50030i201710-202010

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-50040i202011-202410

58307PANEL SUB-ASSY, BODY LOWER BACK

main58302-50010i201710-202010

main58302-50020i202310-202410

main58302-50021i202411-202509

main58307-50080i201710-201909

ADRIA SPEC; ARMENIA SPEC; AZERBAIJAN SPEC; CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR); CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR)&BACK MONITOR-WITH(*BGM); CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR)&BACK MONITOR-WITH(*PVM); FRANCE,REUNION,MONACO,ANDORRA SPEC; FRANCE,REUNION,MONACO,ANDORRA SPEC&BACK MONITOR-WITH(*BGM); FRANCE,REUNION,MONACO,ANDORRA SPEC&BACK MONITOR-WITH(*PVM); GEORGIA SPEC; INDIA SPEC

main58307-50081i201910-202010

ADRIA SPEC&BACK MONITOR-WITH(*PVM); AZERBAIJAN SPEC; AZERBAIJAN SPEC&BACK MONITOR-WITH(*PVM); CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR); CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR)&BACK MONITOR-WITH(*PVM); FRANCE,REUNION,MONACO,ANDORRA SPEC&BACK MONITOR-WITH(*PVM); GEORGIA SPEC; GEORGIA SPEC&BACK MONITOR-WITH(*PVM); INDIA SPEC

58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1

main58325-50040i201710-202010

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-50030i201710-202010

58372BPANEL, BODY LOWER BACK, LOWER

main58372-50130i201710-202010

58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH

main58383-50020i201710-202010

58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH

main58384-50020i201710-202010

58384FBRACKET, LOWER BACK PANEL, NO.1 RH

main58384-50030i202411-202509

58385EBRACKET, REAR BUMPER COVER, RH

main58385-33060i201710-202010

58385JBRACKET, LOWER BACK PANEL, NO.1 LH

main58385-50020i202411-202509

58386GBRACKET, REAR BUMPER COVER, LH

main58385-33060i201710-202010

58619FSHEET, CENTER FLOOR SILENCER

main58619-30080×11i201710-202010

6101SIDE MEMBER

→ Go to FIG 61-01

65565APATCH, SIDE PANEL REAR END, RH

main65565-50010i201710-202010

main65565-50020i202310-202410

65566APATCH, SIDE PANEL REAR END, LH

main65565-50010i201710-202010

main65565-50020i202310-202410

74437BBRACKET, BATTERY CARRIER, NO.5

main74437-50010i201710-202010

74438BBRACKET, BATTERY CARRIER, NO.6

main74438-50010i201710-202010

G929NAPLUG, BATTERY DRAIN

mainG929N52010i201710-202010

827113F480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F480

9011906A06

main90119-06A06

9011906A07

main90119-06A07

9011908C89

main90119-08C89

9056104013

main90561-04013

9056112009

main90561-12009

9167380612

main91673-80612

60 parts on this diagram · 7 diagrams in section

FLOOR PAN & LOWER BACK PANEL for Toyota LEXUS LS SERIES

This section contains 106 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota LEXUS LS SERIES. Key components include: COVER, TRANSMISSION UNDER, CLIP, TRANSMISSION UNDER COVER, PROTECTOR, DIFFERENTIAL SUPPORT, NO.1, PROTECTOR, DIFFERENTIAL SUPPORT, NO.2, CLIP, NO.1(FOR FRONT FENDER SEAL).
