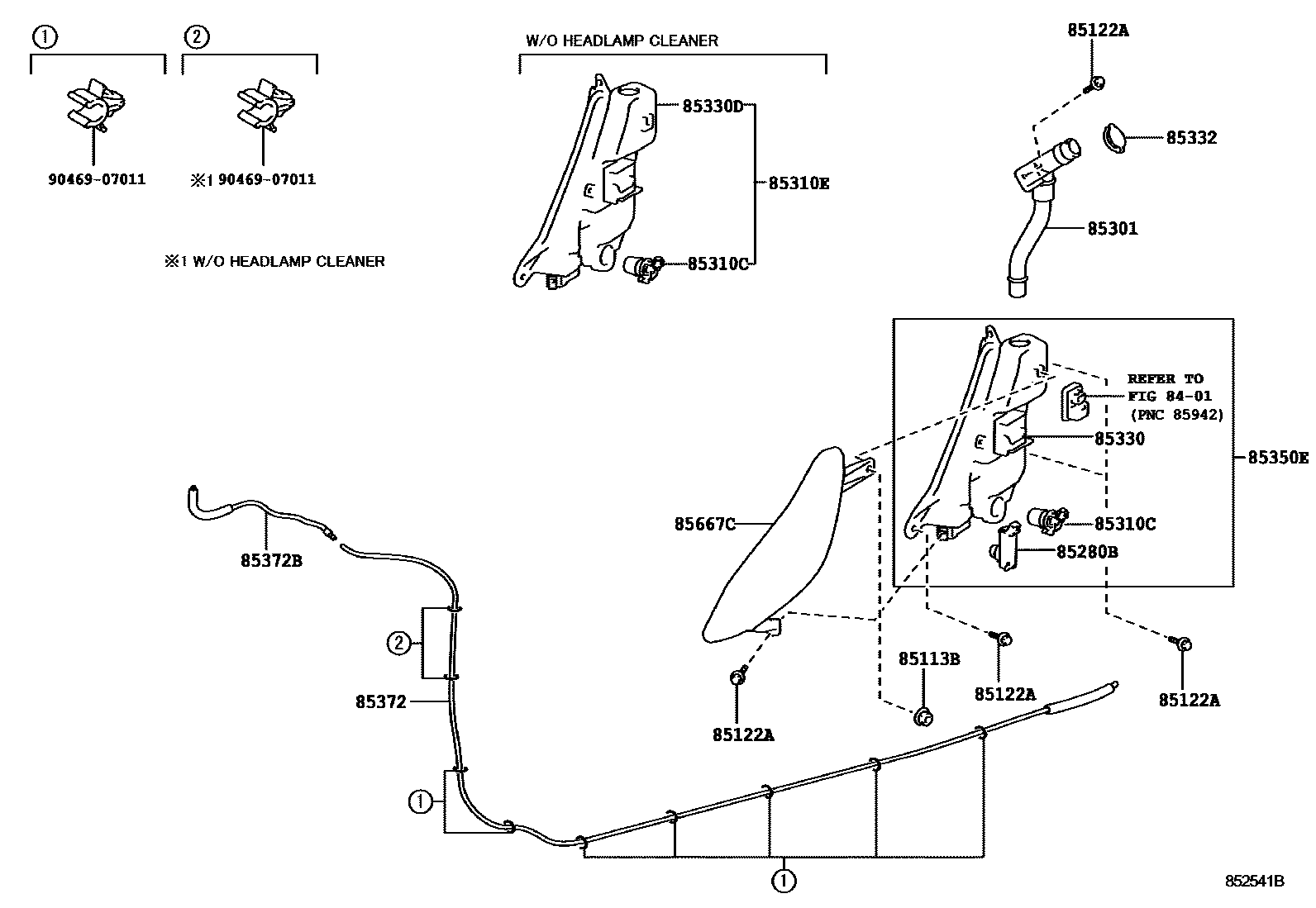

Toyota LEXUS LFA — WINDSHIELD WASHER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85113BNUT

main85113-77010i201012

85122ABOLT

main85122-77010×5i201012

85280BMOTOR & PUMP ASSY, HEADLAMP CLEANER

main85280-47010i201012

HEAD LAMP CLEANER-WITH

85301INLET SUB-ASSY, WASHER

main85301-77010i201012

85310CMOTOR & PUMP ASSY, WASHER

main85330-60190i201012

85310EJAR & PUMP ASSY, WASHER

main85310-77010i201012

85330JAR ASSY, WINDSHIELD WASHER

main85355-77010i201012

HEAD LAMP CLEANER-WITH

85330DJAR ASSY, WASHER

main85315-77010i201012

85332CAP, WINDSHIELD WASHER JAR

main85332-77010i201012

85350EJAR & PUMP ASSY, HEADLAMP CLEANER

main85350-77010i201012

HEAD LAMP CLEANER-WITH

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85370-77010i201012

HEAD LAMP CLEANER-WITH

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85370-77020i201012

HEAD LAMP CLEANER-WITH

85667CCOVER, MOTOR

main85667-77010i201012

9046907011

main90469-07011

15 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota LEXUS LFA

This section contains 15 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota LEXUS LFA. Key components include: SWITCH & RELAY & COMPUTER, NUT, BOLT, MOTOR & PUMP ASSY, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER.
