Toyota LEXUS LFA — REAR COMBINATION LAMP

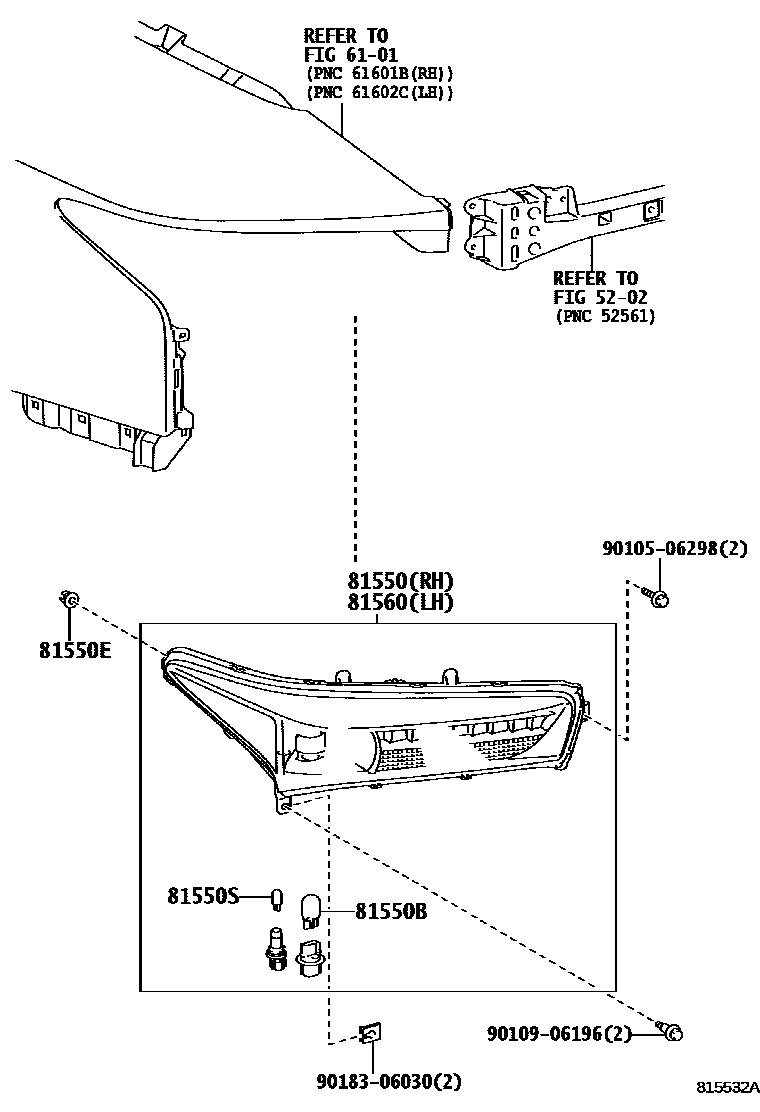

Parts diagram

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

6101SIDE MEMBER

→ Go to FIG 61-01

81550LAMP ASSY, REAR COMBINATION, RH

main81550-77010i201012

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043×2i201012-201212

12V 21W

81550ECLIP(FOR REAR COMBINATION LAMP)

main81559-77010×2i201012

81550SBULB, REAR SIDE MARKER LAMP

main99132-12050×2i201012

81560LAMP ASSY, REAR COMBINATION, LH

main81560-77010i201012

9010506298

main90105-06298

9010906196

main90109-06196

9018306030

main90183-06030

10 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota LEXUS LFA

This section contains 10 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota LEXUS LFA. Key components include: REAR BUMPER & BUMPER STAY, SIDE MEMBER, LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), CLIP(FOR REAR COMBINATION LAMP).
