Toyota LEXUS LFA — FRONT SPRING & SHOCK ABSORBER
44344CSEAT, SPRING(FOR FRONT SUSPENSION)
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-77010
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-77010
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9010514174
main90105-14174
9010514177
main90105-14177
9011008012
main90110-08012
9017814002
main90178-14002
9017912151
main90179-12151
9461110800
main94611-10800

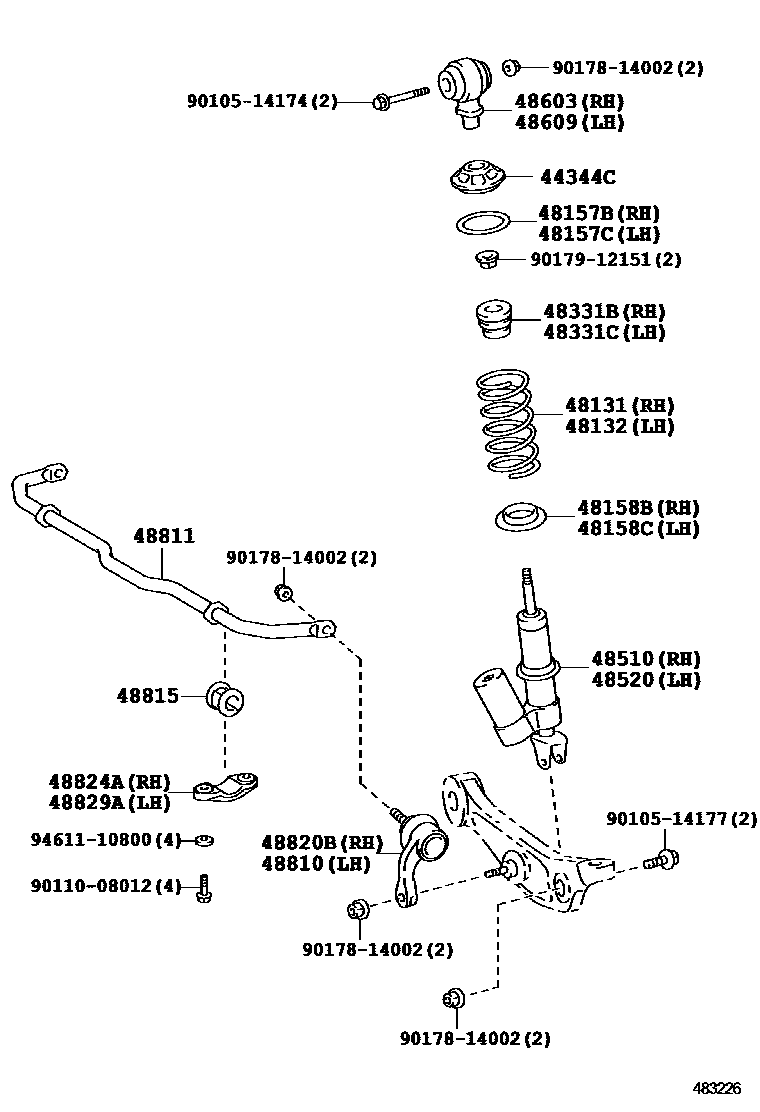

25 parts on this diagram · 1 diagram in section
FRONT SPRING & SHOCK ABSORBER for Toyota LEXUS LFA
This section contains 25 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota LEXUS LFA. Key components include: SEAT, SPRING(FOR FRONT SUSPENSION), SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER RH, INSULATOR, FRONT COIL SPRING, UPPER LH.
