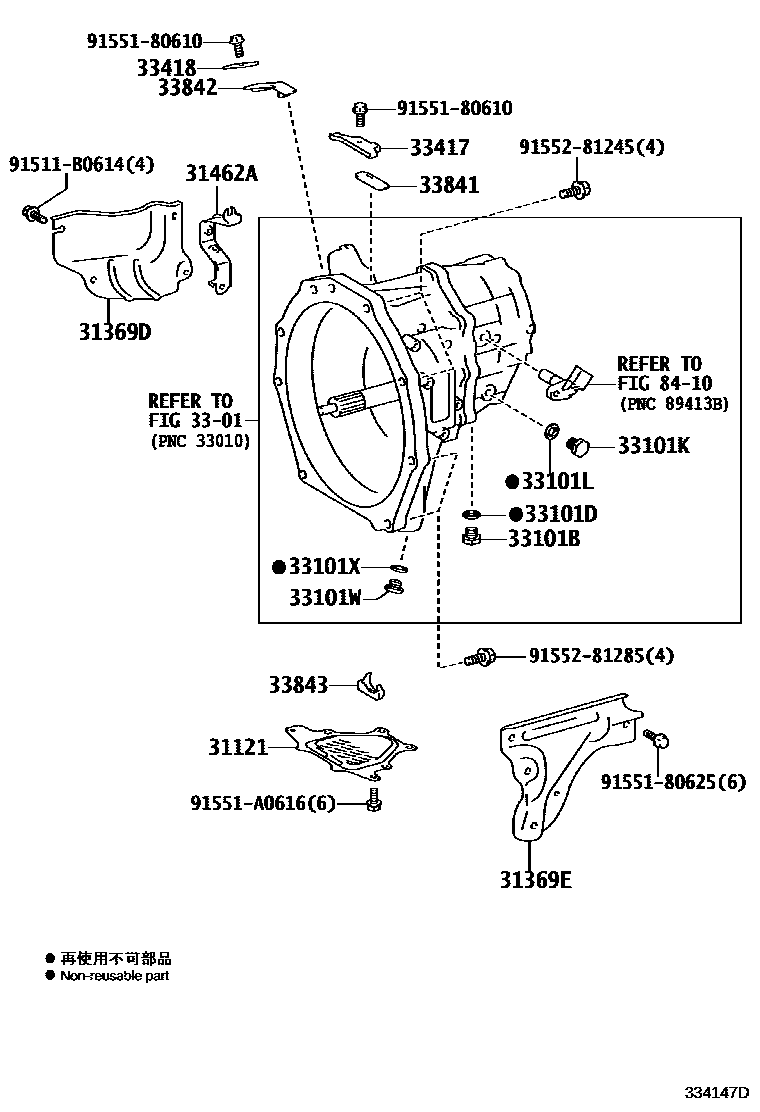

Toyota LEXUS LFA — CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31121COVER, CLUTCH HOUSING, NO.1
31369DINSULATOR, TRANSMISSION HEAT, NO.1
31369EINSULATOR, TRANSMISSION HEAT, NO.2
31462ASUPPORT, HEAT INSULATOR
3301TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)
33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)
33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
33101KPLUG(FOR MANUAL TRANSMISSION FILLER)
33101LGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101WPLUG(FOR OIL RETURN DRAIN)
33101XGASKET(FOR OIL RETURN DRAIN PLUG)
33417PLATE, TRANSMISSION CASE UPPER, NO.1
33418PLATE, TRANSMISSION CASE UPPER, NO.2
33841GROMMET, TRANSMISSION CASE, NO.1
33842GROMMET, TRANSMISSION CASE, NO.2
33843GROMMET, TRANSMISSION CASE
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
91511B0614
main91511-B0614
9155180610
main91551-80610
9155180625
main91551-80625
91551A0616
main91551-A0616
9155281245
main91552-81245
9155281285
main91552-81285
23 parts on this diagram · 2 diagrams in section
CLUTCH HOUSING & TRANSMISSION CASE (MTM) for Toyota LEXUS LFA
This section contains 29 genuine Toyota parts for the CLUTCH HOUSING & TRANSMISSION CASE (MTM) system of the Toyota LEXUS LFA. Key components include: COVER, CLUTCH HOUSING, NO.1, INSULATOR, TRANSMISSION HEAT, NO.1, INSULATOR, TRANSMISSION HEAT, NO.2, SUPPORT, HEAT INSULATOR, TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM).
