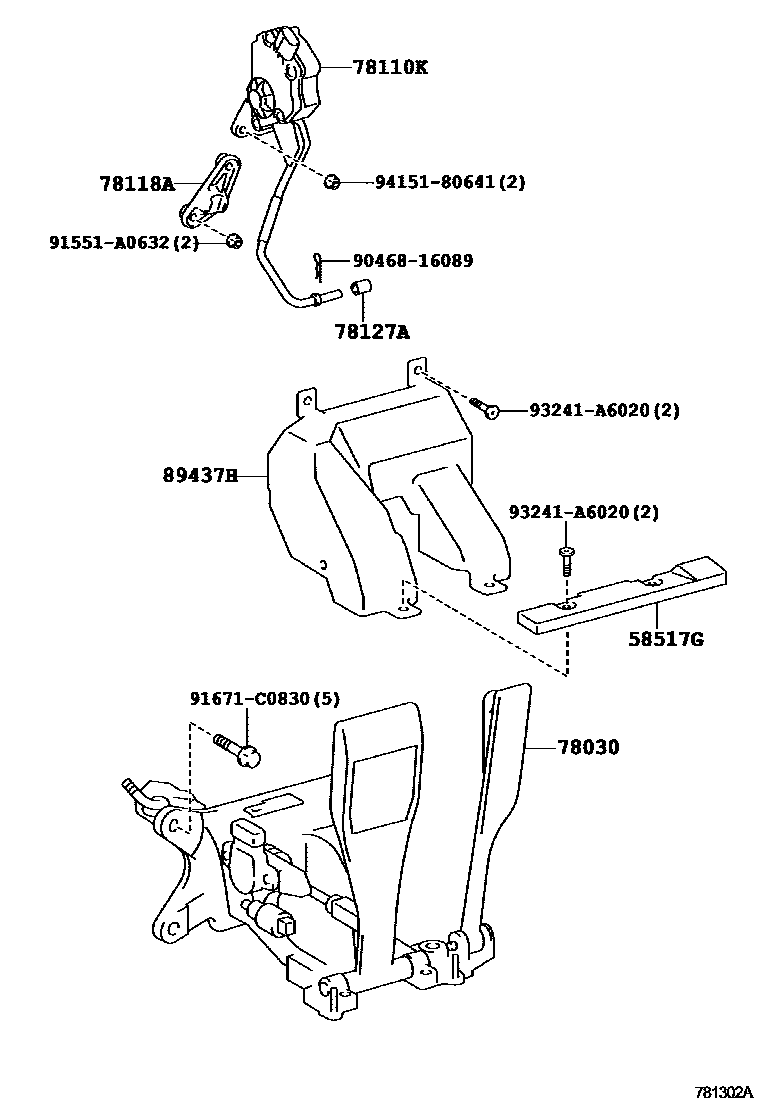

Toyota LEXUS LFA — ACCELERATOR LINK
58517GPAD, HEEL
78030PEDAL ASSY, ACCELERATOR & BRAKE
78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78118ASTOPPER, ACCELERATOR PEDAL
78127ABUSH, ACCELERATOR PEDAL TO ROD
89437HCOVER, SENSOR
9046816089
main90468-16089
91551A0632
main91551-A0632
91671C0830
main91671-C0830
93241A6020
main93241-A6020
9415180641
main94151-80641
11 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota LEXUS LFA
This section contains 11 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LEXUS LFA. Key components include: PAD, HEEL, PEDAL ASSY, ACCELERATOR & BRAKE, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR), STOPPER, ACCELERATOR PEDAL, BUSH, ACCELERATOR PEDAL TO ROD.
