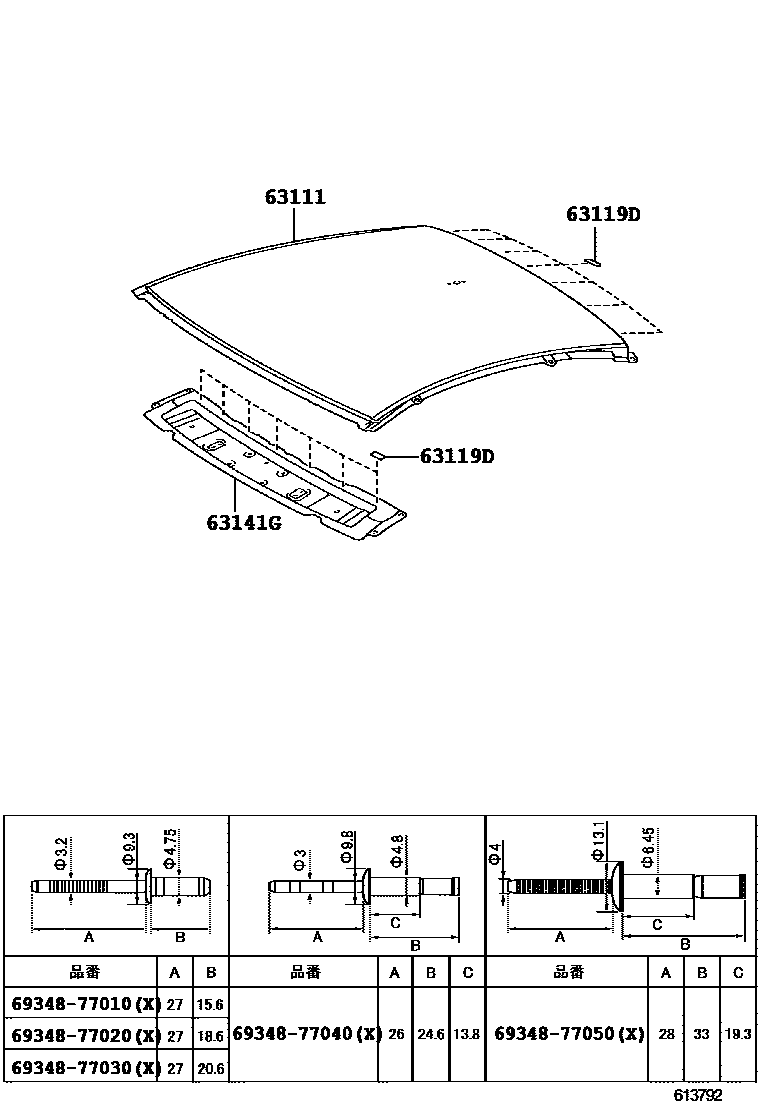

Toyota LEXUS LFA — ROOF PANEL & BACK WINDOW GLASS

63111PANEL, ROOF

main63111-77030-B1i201012-201212

GRAY

main63111-77040-B1i201012-201212

AUDIO-MARK LEVINSON 12SPEAKER&MAYDAY SYSTEM-W(TELEMATICS),GRAY

63119DPAD, ROOF PANEL, NO.1

main63119-77010×14i201012

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-77010i201012

6934877010JOINT, ADJUSTING

main69348-77010

6934877020JOINT, ADJUSTING

main69348-77020

6934877030JOINT, ADJUSTING

main69348-77030

6934877040JOINT, ADJUSTING

main69348-77040

6934877050JOINT, ADJUSTING

main69348-77050

8 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK WINDOW GLASS for Toyota LEXUS LFA

This section contains 8 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota LEXUS LFA. Key components include: PANEL, ROOF, PAD, ROOF PANEL, NO.1, REINFORCEMENT, ROOF PANEL, NO.1, JOINT, ADJUSTING.
