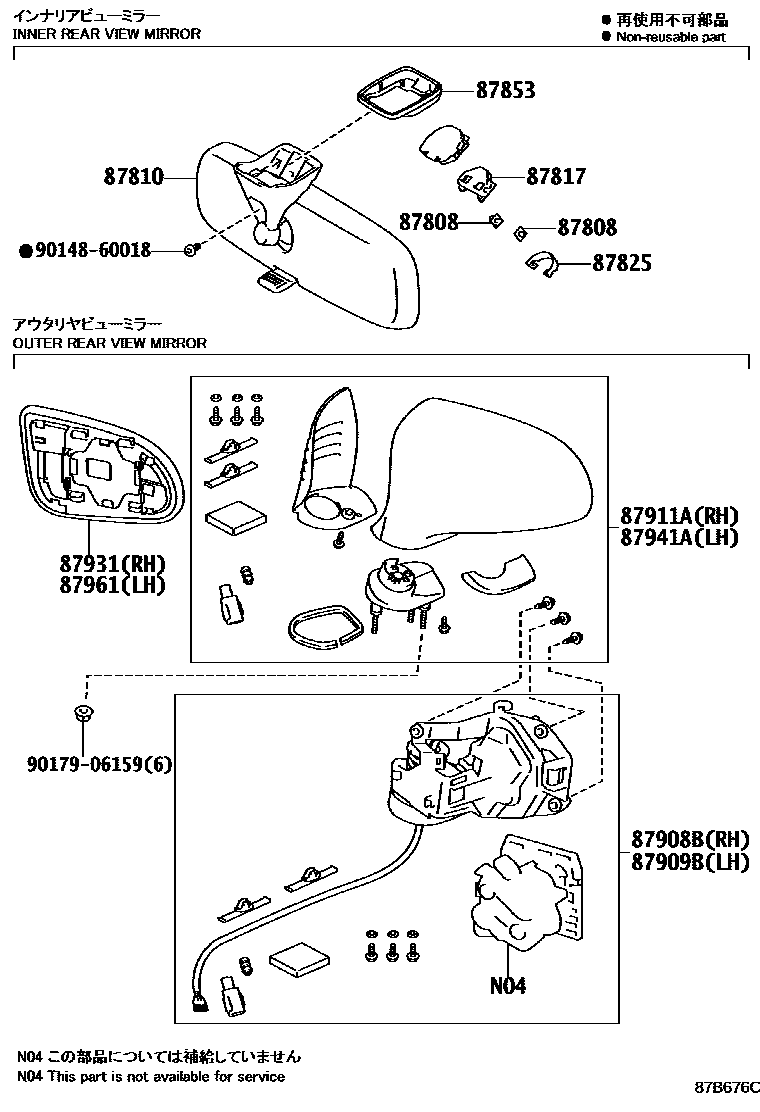

Toyota LEXUS LFA — MIRROR
87808HOLDER SUB-ASSY, INNER MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87817SPACER, INNER REAR VIEW MIRROR
87825SPRING, INNER REAR VIEW MIRROR SETTING
87853BASE, INNER REAR VIEW MIRROR
BLACK
87908BMIRROR SUB-ASSY, RH
87909BMIRROR SUB-ASSY, LH
87911AVISOR, OUTER MIRROR, RH
WHITE,077 ,079 ,5B0 ,9J6 ,9J7 ,9J8 ,9K1 ,9K5
DK.GRAY,3P0 ,9J5 ,9J9 ,9K0 ,9K1 ,9K6
LIGHT GRAY,1F2 ,4V2 ,9H7 ,9H9 ,9J4
BLACK,1G0 ,212 ,3S4 ,8V8 ,9H8 ,9J0 ,9J1 ,9J2 ,9J3 ,9K2 ,9K3 ,9K4
87941AVISOR, OUTER MIRROR, LH
WHITE,077 ,079 ,5B0 ,9J6 ,9J7 ,9J8 ,9K1 ,9K5
DK.GRAY,3P0 ,9J5 ,9J9 ,9K0 ,9K1 ,9K6
LIGHT GRAY,1F2 ,4V2 ,9H7 ,9H9 ,9J4
BLACK,1G0 ,212 ,3S4 ,8V8 ,9H8 ,9J0 ,9J1 ,9J2 ,9J3 ,9K2 ,9K3 ,9K4
9014860018
main90148-60018
9017906159
main90179-06159
13 parts on this diagram · 1 diagram in section
MIRROR for Toyota LEXUS LFA
This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota LEXUS LFA. Key components include: HOLDER SUB-ASSY, INNER MIRROR, MIRROR ASSY, INNER REAR VIEW, SPACER, INNER REAR VIEW MIRROR, SPRING, INNER REAR VIEW MIRROR SETTING, BASE, INNER REAR VIEW MIRROR.
