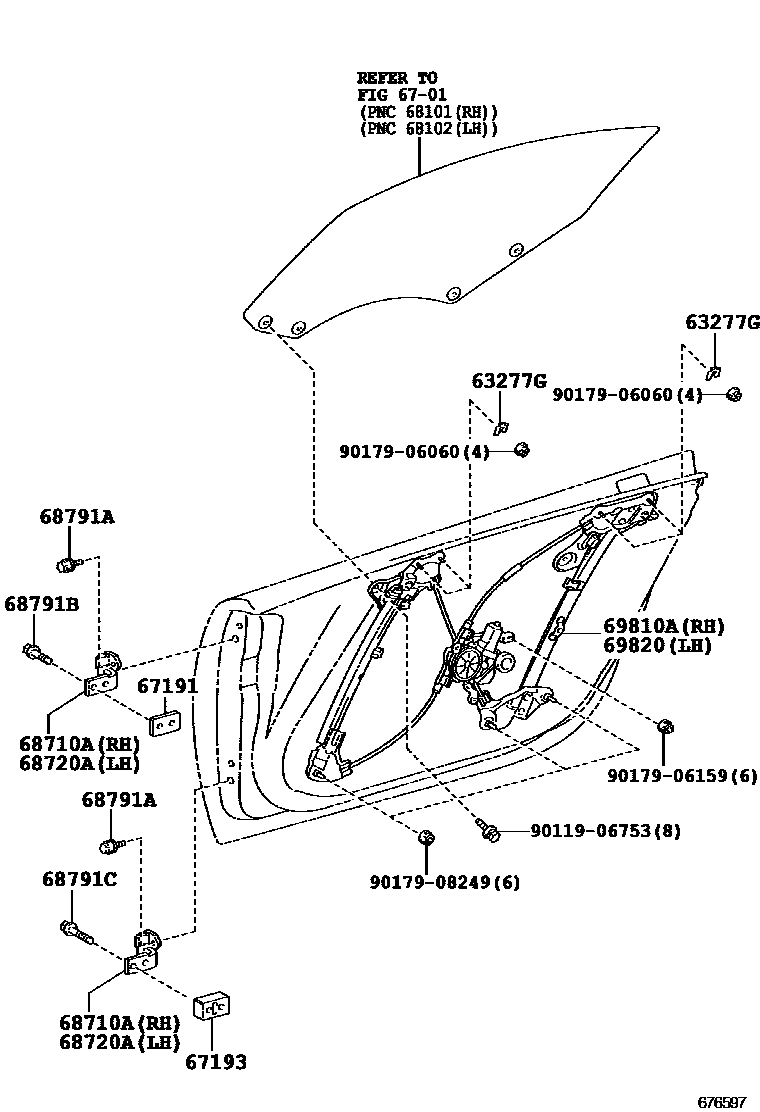

Toyota LEXUS LFA — FRONT DOOR WINDOW REGULATOR & HINGE

63277GSHIM, WINDOW REGULATOR

main63277-20030×8i201012

67191HOLDER, FRONT DOOR UPPER HINGE RETAINER

main67191-77010×2i201012

67193HOLDER, FRONT DOOR LOWER HINGE RETAINER

main67193-77010×2i201012

68710AHINGE ASSY, FRONT DOOR, RH

main68710-77010×2i201012

68720AHINGE ASSY, FRONT DOOR, LH

main68720-77010×2i201012

68791APIN, DOOR HINGE, NO.1

main68791-77010×4i201012

68791BPIN, DOOR HINGE, NO.1

main68791-77030×4i201012

68791CPIN, DOOR HINGE, NO.1

main68791-77040×4i201012

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-77010i201012

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-77010i201012

9011906753

main90119-06753

9017906060

main90179-06060

9017906159

main90179-06159

9017908249

main90179-08249

14 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota LEXUS LFA

This section contains 14 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota LEXUS LFA. Key components include: SHIM, WINDOW REGULATOR, HOLDER, FRONT DOOR UPPER HINGE RETAINER, HOLDER, FRONT DOOR LOWER HINGE RETAINER, HINGE ASSY, FRONT DOOR, RH, HINGE ASSY, FRONT DOOR, LH.
