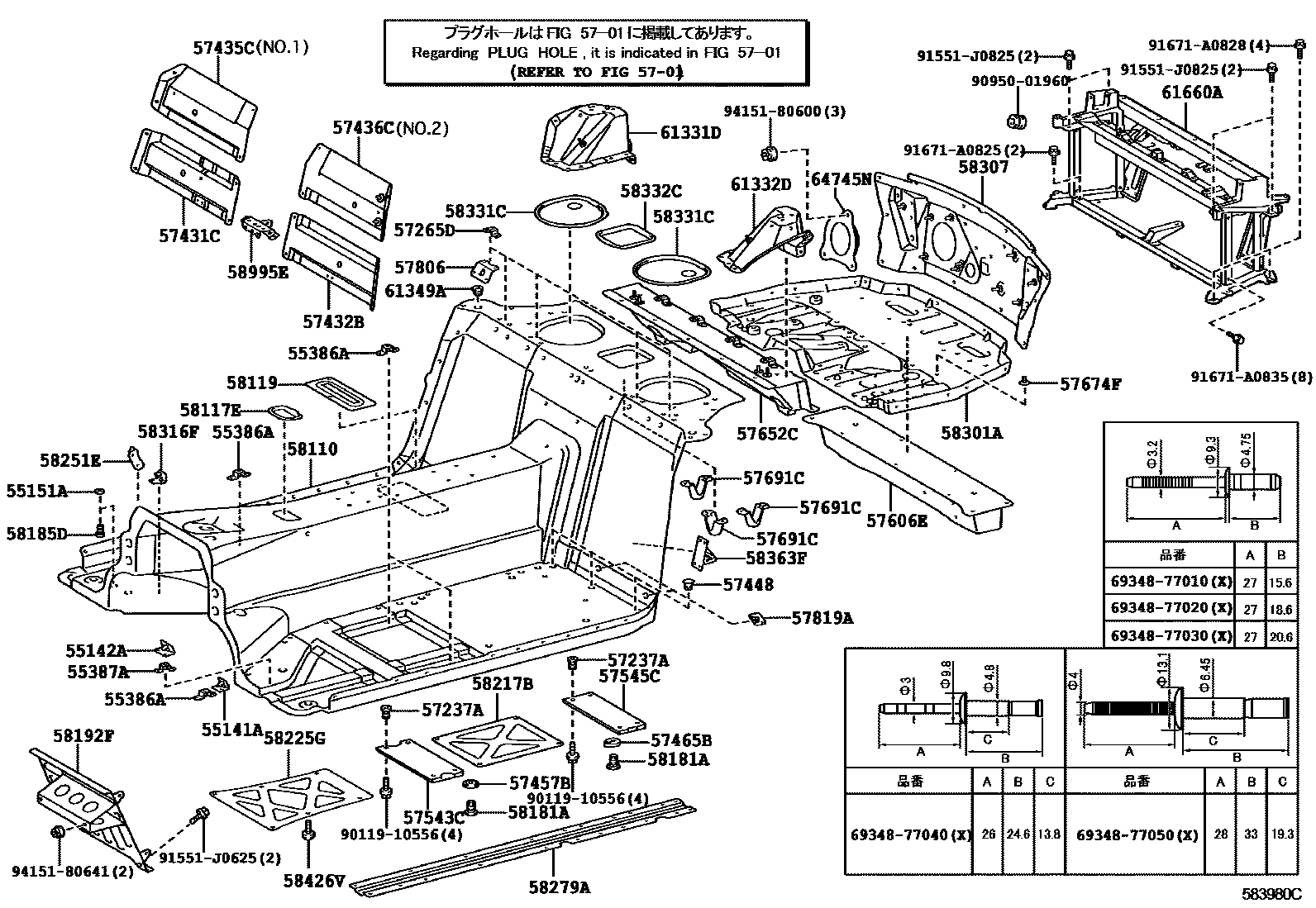

Toyota LEXUS LFA — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55141ABRACKET, FOOT REST MOUNTING

main55141-77010iLFA10..RHD201012-201212

55142ABRACKET, FOOT REST MOUNTING, NO.2

main55142-77010iLFA10201012-201212

55151ABRACKET, PEDAL

main55151-77020×2iLFA10201012

55386ABRACKET, COMPUTER MOUNTING, NO.1

main55386-77010×5iLFA10201012-201212

55387ABRACKET, COMPUTER MOUNTING, NO.2

main55387-77010iLFA10201012

5701

57237ARETAINER, CENTER ARM

main57237-77020×8iLFA10201012

57265DBRACKET, FLOOR CROSS STRENGTH, NO.1

main57265-77010×4iLFA10201012

57431CREINFORCEMENT, CENTER FLOOR, NO.1 RH

main57431-77010iLFA10201012-201212

57432BSTRENGTH, FRONT FLOOR, REAR LOWER NO.2

main57432-77010iLFA10201012-201212

57435CSTRENGTH, UPPER REAR FLOOR, NO.1

main57435-77010iLFA10201012-201212

57436CSTRENGTH, UPPER REAR FLOOR, NO.2

main57436-77010iLFA10201012-201212

57448RETAINER, CENTER FLOOR CROSSMEMBER

main57448-77020×6iLFA10201012

57457BBRACKET, FRONT SEAT, FRONT

main57457-77020×4iLFA10201012

57465BBRACKET, FRONT SEAT, INNER

main57465-77010×4iLFA10201012

57543CBRACE, CENTER FLOOR, NO.1

main57543-77010iLFA10201012

57545CBRACE, CENTER FLOOR, NO.2

main57545-77010iLFA10201012

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-77010iLFA10201012

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-77010iLFA10201012

57674FGUIDE, WIRE HARNESS

main57674-77010iLFA10201012

57691CBRACKET, FUEL TANK STOPPER, RH

main57691-77010×3iLFA10201012-201212

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-77010×4iLFA10201012

57819AREINFORCEMENT, BELT ANCHOR, NO.2

main57819-77020×4iLFA10201012

58110PANEL ASSY, FRONT FLOOR

main58110-77010iLFA10..LHD201012-201212

main58110-77020iLFA10..RHD201012-201212

58117EPANEL, FRONT FLOOR SUB COVER

main58117-77010iLFA10201012

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-77010iLFA10201012

58181ARETAINER, SEAT RAIL, FRONT

main58181-77020×8iLFA10201012

58185DPLATE, ACCELERATOR PEDAL MOUNTING

main58185-77020×2iLFA10201012

58192PANEL, FOOTREST

main58192-77010iLFA10..LHD201012

58192FPANEL, FOOTREST

main58192-77020iLFA10..RHD201012

58217BPLATE, FRONT FLOOR

main58217-77010iLFA10201012

58225GPLATE, FLOOR PANEL FRONT END

main58225-77010iLFA10201012

58251EPANEL, FOOTREST, NO.3

main58251-77010iLFA10..RHD201012

58279APROTECTOR, FUEL HOSE

main58279-77010iLFA10201012

58301APANEL SUB-ASSY, REAR FLOOR

main58301-77010iLFA10201012-201212

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-77010iLFA10201012

58316FPLATE, FOOTREST, REAR

main58316-77010iLFA10..RHD201012

58331CCOVER, REAR FLOOR SIDE SERVICE HOLE, RH

main58331-77010×2iLFA10201012

58332CCOVER, REAR FLOOR SIDE SERVICE HOLE, LH

main58332-77010iLFA10201012

58363FSUPPORT, FUEL TANK, FRONT

main58363-77010×2iLFA10201012

58426VPROTECTOR, ENGINE SUB COVER

main58426-77030×10iLFA10201012

58995EBRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-77010iLFA10201012-201212

61331DREINFORCEMENT, CENTER BODY PILLAR, OUTER REAR RH

main61331-77010iLFA10201012

61332DREINFORCEMENT, CENTER BODY PILLAR, OUTER REAR LH

main61332-77010iLFA10201012

61349APATCH, BELT ANCHOR TO CENTER PILLAR

main61349-77020×2iLFA10201012

61660AEXTENSION ASSY, QUARTER OUTER PANEL

main61660-77010iLFA10..EUR201012

REAR SPOILER-W/O

64745NCOVER, LOWER BACK SERVICE HOLE

main64745-77010iLFA10201012

6934877010JOINT, ADJUSTING

main69348-77010

6934877020JOINT, ADJUSTING

main69348-77020

6934877030JOINT, ADJUSTING

main69348-77030

6934877040JOINT, ADJUSTING

main69348-77040

6934877050JOINT, ADJUSTING

main69348-77050

9011910556

main90119-10556

9095001960

main90950-01960

91551J0625

main91551-J0625

91551J0825

main91551-J0825

91671A0825

main91671-A0825

91671A0828

main91671-A0828

91671A0835

main91671-A0835

9415180600

main94151-80600

9415180641

main94151-80641

61 parts on this diagram · 2 diagrams in section
