Toyota LEXUS LFA — ARMREST & VISOR

74310VISOR ASSY, RH

main74310-77030-C1i201012-201212

BLACK,TRIM20

main74310-77030-D0i201012-201212

RED,TRIM20

main74310-77030-F0i201012-201212

CAMEL YELLOW,TRIM20

main74310-77040-C1i201012-201212

BLACK,TRIM20

main74310-77040-D0i201012-201212

RED,TRIM20

main74310-77040-F0i201012-201212

CAMEL YELLOW,TRIM20

74317COVER, VISOR BRACKET, RH

main74317-50010-C0×2i201012-201212

BLACK,TRIM2#

74320VISOR ASSY, LH

main74320-77050-C1i201012-201212

BLACK,TRIM20

main74320-77050-D0i201012-201212

RED,TRIM20

main74320-77050-F0i201012-201212

CAMEL YELLOW,TRIM20

main74320-77040-C1supersedes 74320-77030-F0i201012-201212

AUSTRALIA SPEC,BLACK,TRIM20; NEW ZEALAND SPEC,BLACK,TRIM20

main74320-77040-D0supersedes 74320-77030-F0i201012-201212

AUSTRALIA SPEC,RED,TRIM20; NEW ZEALAND SPEC,RED,TRIM20

main74320-77040-F0supersedes 74320-77030-F0i201012-201212

AUSTRALIA SPEC,CAMEL YELLOW,TRIM20; NEW ZEALAND SPEC,CAMEL YELLOW,TRIM20

74348HOLDER, VISOR

main74348-50020-C0×2i201012-201212

BLACK,TRIM2#

9322016020

main93220-16020

9353055014

main93530-55014

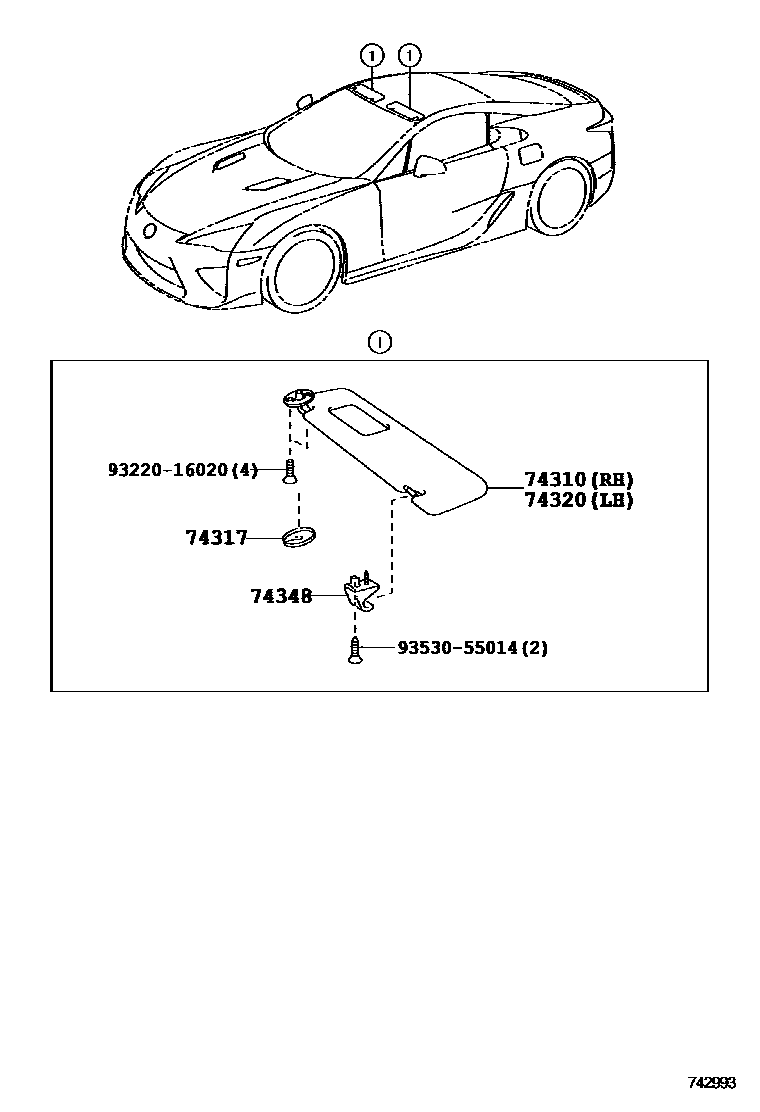

6 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota LEXUS LFA

This section contains 6 genuine Toyota parts for the ARMREST & VISOR system of the Toyota LEXUS LFA. Key components include: VISOR ASSY, RH, COVER, VISOR BRACKET, RH, VISOR ASSY, LH, HOLDER, VISOR.
