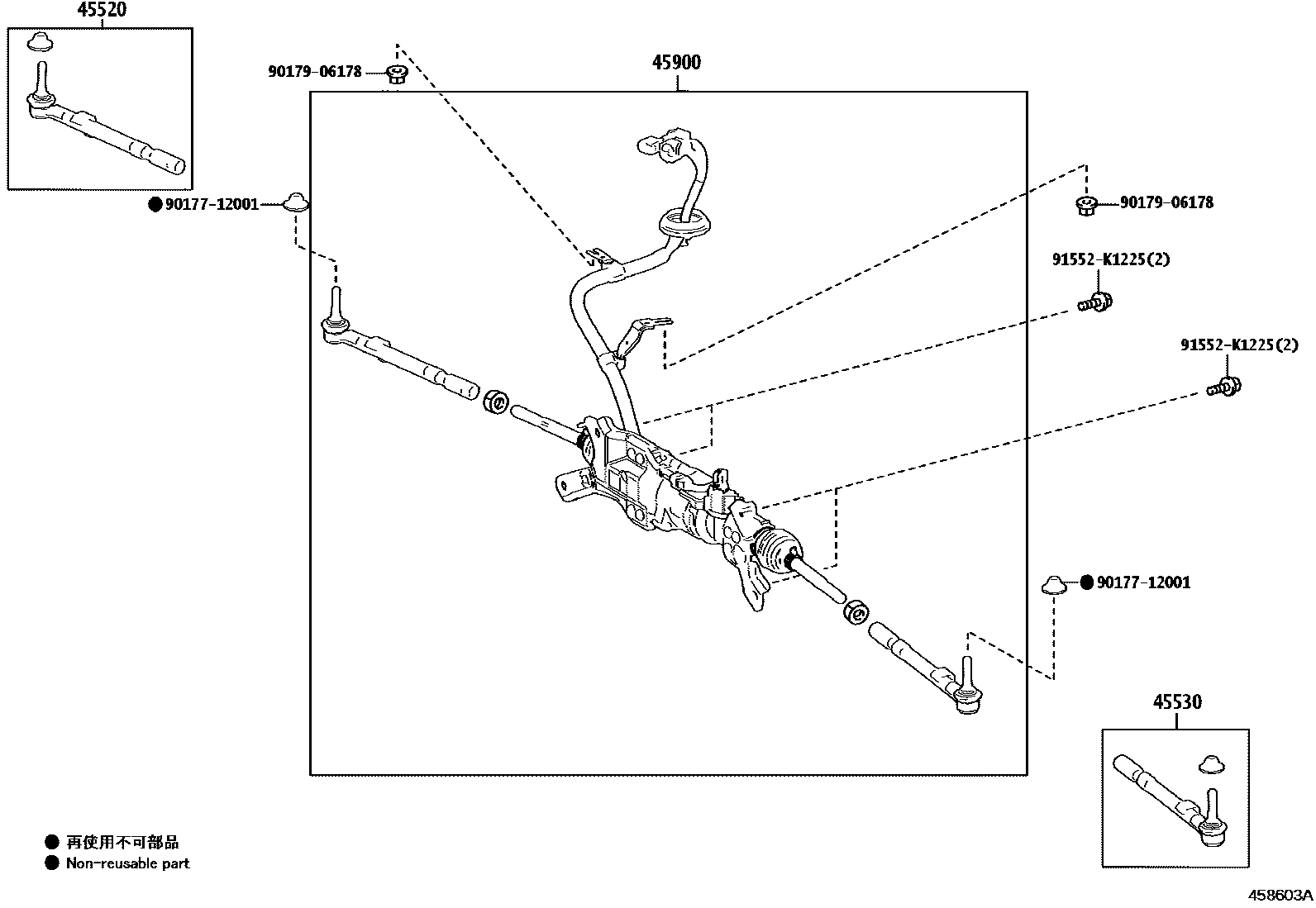

Toyota LEXUS LC500/500H — REAR STEERING GEAR (4WS)

45520ROD ASSY, REAR STEERING TIE, RH

main45520-19005i202305

45530ROD ASSY, REAR STEERING TIE, LH

main45530-19005i202305

45900LINK ASSY, REAR STEERING

main45900-11010i202305

9017712001

main90177-12001

9017906178

main90179-06178

91552K1225

main91552-K1225

6 parts on this diagram · 2 diagrams in section

REAR STEERING GEAR (4WS) for Toyota LEXUS LC500/500H

This section contains 9 genuine Toyota parts for the REAR STEERING GEAR (4WS) system of the Toyota LEXUS LC500/500H. Key components include: ROD ASSY, REAR STEERING TIE, RH, ROD ASSY, REAR STEERING TIE, LH, LINK ASSY, REAR STEERING.
