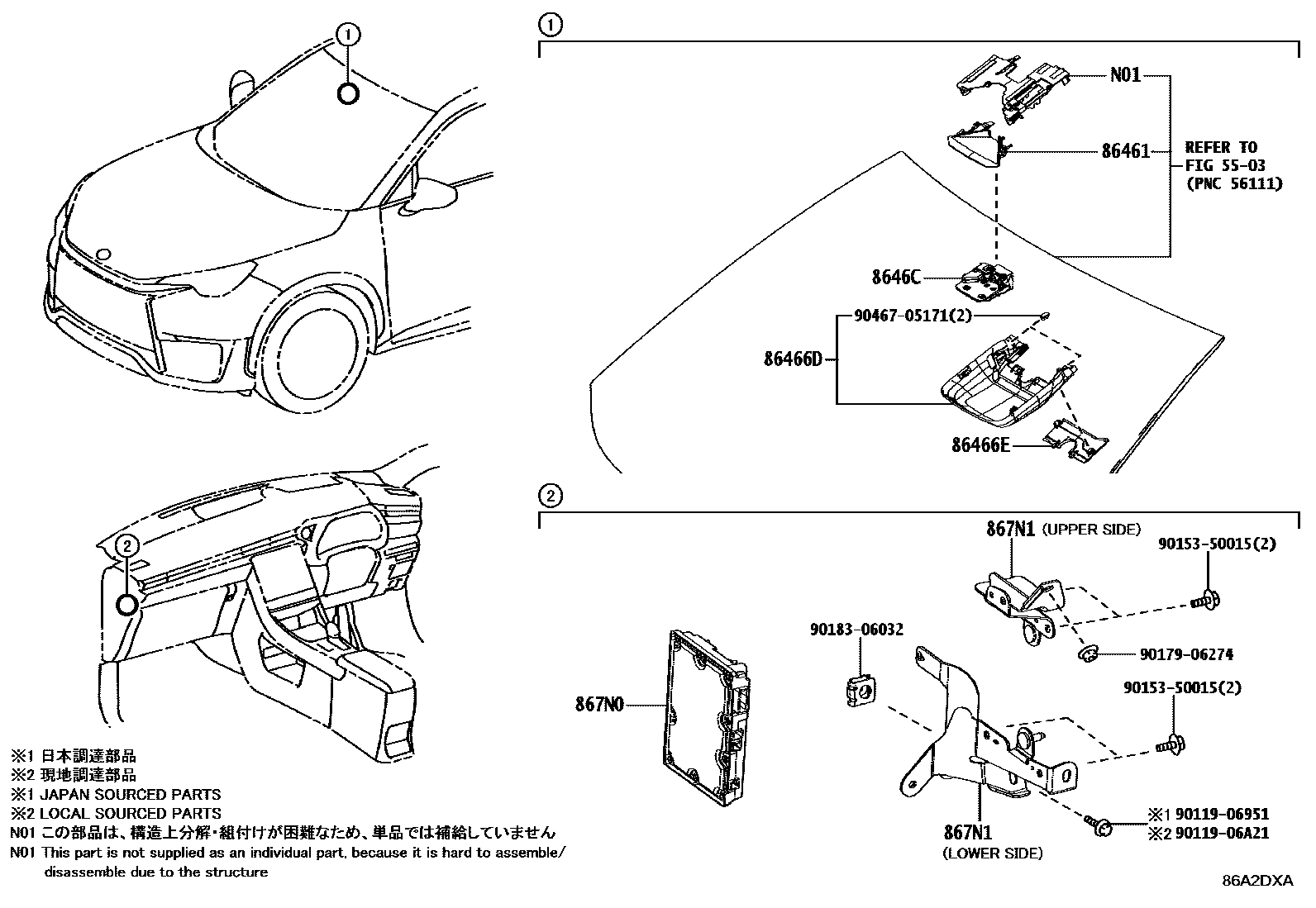

Toyota LEXUS LBX — PRE-COLLISION SYSTEM

5503

86461HOOD, FORWARD RECOGNITION

main86461-52050iGAYA16202408

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-52090iGAYA16202408

86466ECOVER, FORWARD RECOGNITION, NO.2

main86467-52030iGAYA16202408

8646CCAMERA, FORWARD RECOGNITION

main8646C-52470supersedes 8646C-52460iGAYA16202408-202506

867N0COMPUTER ASSY, DRIVE RECORDER

main867N0-52130iGAYA16202408

867N1BRACKET, DRIVE RECORDER

main867N1-52010iGAYA16202408

main867N1-52020iGAYA16202408

9011906951

main90119-06951

9011906A21

main90119-06A21

9015350015

main90153-50015

9017906274

main90179-06274

9018306032

main90183-06032

9046705171

main90467-05171

13 parts on this diagram · 1 diagram in section
