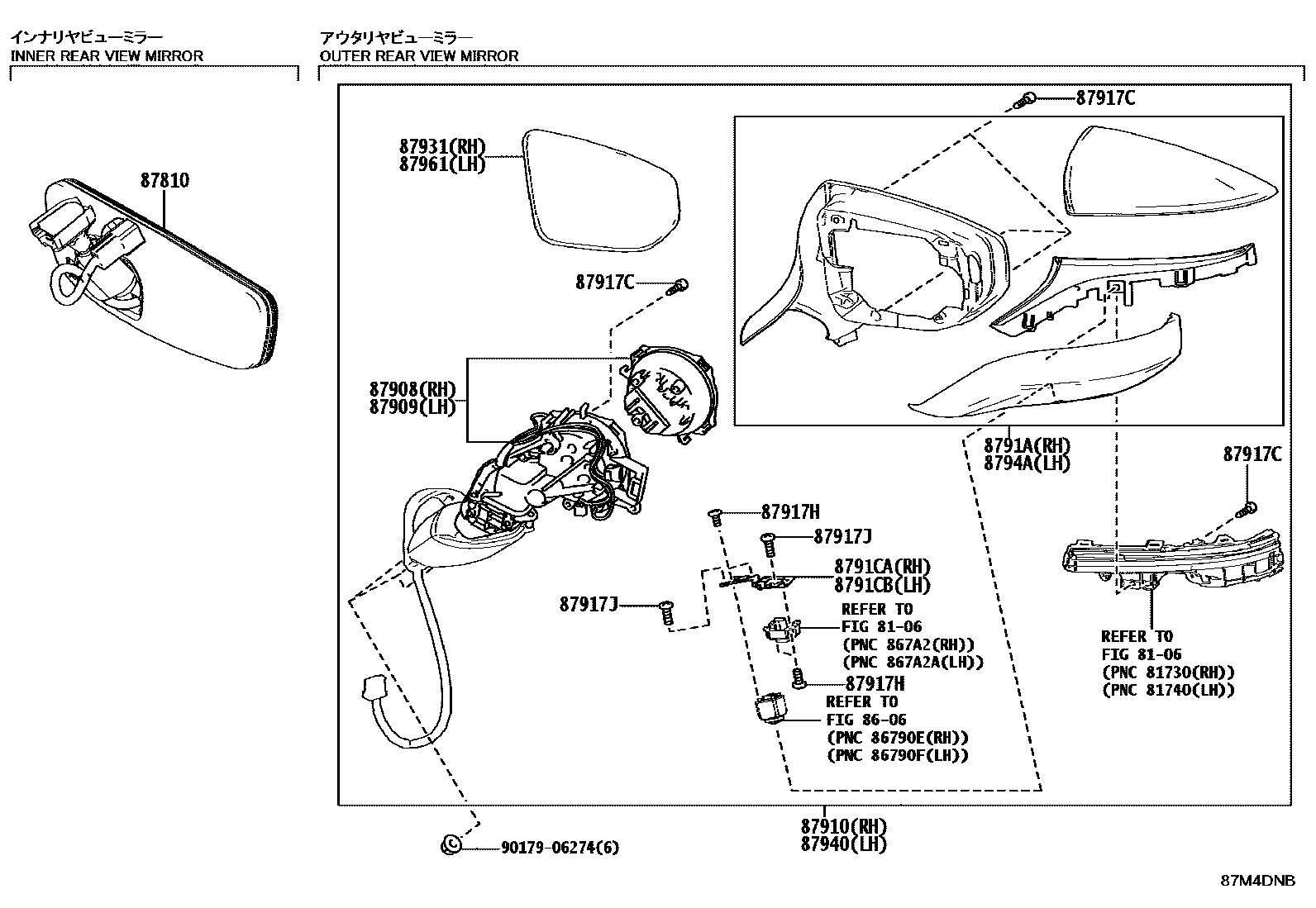

Toyota LEXUS LBX — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WY90i202312

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-52M80-C0supersedes 87908-52M70-C0i202312

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-52M90-C0i202312

BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-52M80-C1supersedes 87910-52M70-C1i202312

87917CSCREW, OUTER MIRROR

main87917-50700×10i202312

87917HSCREW, OUTER MIRROR, NO.2

main87917-52M80×8supersedes 87917-52N20i202312-202407

main87917-52N20×8i202407

87917JSCREW, OUTER MIRROR, NO.3

main87917-30D80×4i202312

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-52M80-C0supersedes 8791A-52M70-C0i202312

8791CABRACKET, OUTER MIRROR COVER ADAPTER, RH

main8791C-52M80i202312

8791CBBRACKET, OUTER MIRROR COVER ADAPTER, LH

main8791C-52M90i202312

87931OUTER MIRROR, RH

main87931-33G01i202312

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-52M90-C1i202312

BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-52M90-C0i202312

BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7

87961MIRROR OUTER, LH

main87961-53B80i202312

9017906274

main90179-06274

17 parts on this diagram · 1 diagram in section

MIRROR for Toyota LEXUS LBX

This section contains 17 genuine Toyota parts for the MIRROR system of the Toyota LEXUS LBX. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
