Toyota LEXUS LBX — METER

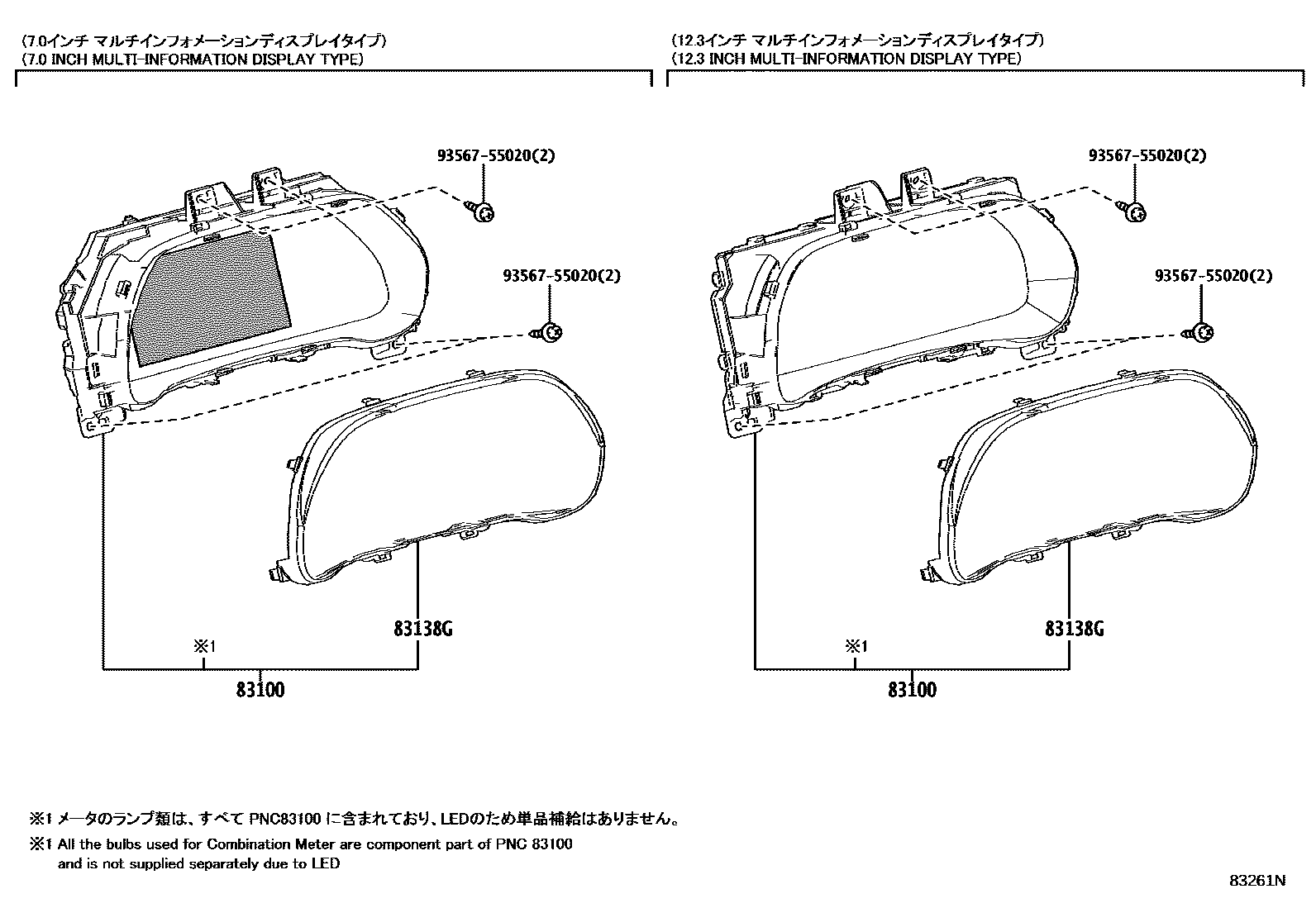

83100METER ASSY, COMBINATION

main83800-5D550supersedes 83800-5D611i202312-202407

main83800-5D551supersedes 83800-5D611i202408-202410

main83800-5D552supersedes 83800-5D611i202411

83138GGLASS, COMBINATION METER

main83852-5D610i202312

9356755020

main93567-55020

3 parts on this diagram · 2 diagrams in section

METER for Toyota LEXUS LBX

This section contains 8 genuine Toyota parts for the METER system of the Toyota LEXUS LBX. Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER, WIRE, METER, GLASS, COMBINATION METER, PLATE, COMBINATION METER MIRROR, NO.1.
