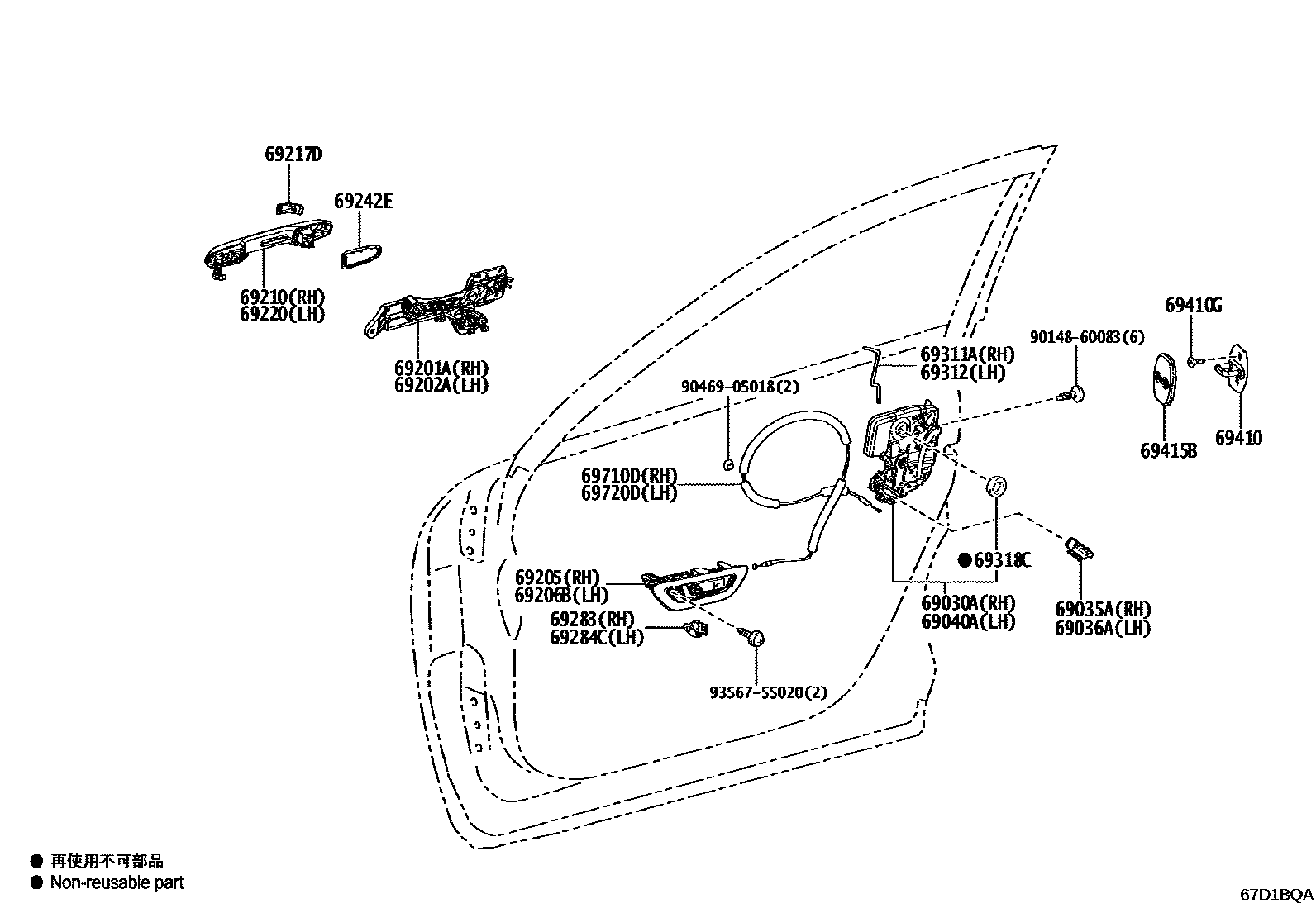

Toyota LEXUS LBX — FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-78100i202312

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-78010i202312

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-78010i202312

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-78080i202312

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-52210i202312

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-52100i202312

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69070-52040-B0i202312

DK.METAL,TRIM0#,20,21,22,3#,4#,8#

main69070-52040-C0i202312

BLACK,TRIM21

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69080-52070-B0i202312

DK.METAL,TRIM0#,20,21,22,3#,4#,8#

main69080-52070-C0i202312

BLACK,TRIM21

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-52151-A0i202312

SONIC QUARTZ,085 ,2YM

main69210-52151-B0i202312

SILVER ME.,1F7 ,2LB

main69210-52151-B1i202312

CEMENT GRAY ME.,1H5 ,2YN

main69210-52151-B2i202312

SONIC CHROME,1L1 ,2YH

main69210-52151-C0i202312

BLACK MC.,209

main69210-52151-D0i202312

EMOTIONAL RED 2,2TB ,3U5

main69210-52151-E0i202312

SONIC COPPER,2YF ,4Y5

main69210-52151-F0i202312

YELLOW,2PQ ,5A3

main69210-52151-J0i202312

DK.BLUE M.M.,2VT ,8W7

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-78020-A1i202312

SONIC QUARTZ,085 ,2YM

main69217-78020-B1i202312

SONIC CHROME,1L1 ,2YH

main69217-78020-B6i202312

SILVER ME.,1F7 ,2LB

main69217-78020-B7i202312

CEMENT GRAY ME.,1H5 ,2YN

main69217-78020-C2i202312

BLACK MC.,209

main69217-78020-D2i202312

EMOTIONAL RED 2,2TB ,3U5

main69217-78020-E1i202312

SONIC COPPER,2YF ,4Y5

main69217-78020-F0i202312

YELLOW,2PQ ,5A3

main69217-78020-J4i202312

DK.BLUE M.M.,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,8W7

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-52081-A0i202312

SONIC QUARTZ,085 ,2YM

main69220-52081-B0i202312

SILVER ME.,1F7 ,2LB

main69220-52081-B1i202312

CEMENT GRAY ME.,1H5 ,2YN

main69220-52081-B2i202312

SONIC CHROME,1L1 ,2YH

main69220-52081-C0i202312

BLACK MC.,209

main69220-52081-D0i202312

EMOTIONAL RED 2,2TB ,3U5

main69220-52081-E0i202312

SONIC COPPER,2YF ,4Y5

main69220-52081-F0i202312

YELLOW,2PQ ,5A3

main69220-52081-J0i202312

DK.BLUE M.M.,2VT ,8W7

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69241-78030×2i202312

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-52020-C0i202312

BLACK

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-52010-C0i202312

BLACK

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-52300i202312

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-52270i202312

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2i202312

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33030×2i202312

69410GSCREW, FRONT DOOR LOCK STRIKER

main90148-80066×4i202312

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-60020×2i202312

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-52280i202312

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-52280i202312

9014860083

main90148-60083

9046905018

main90469-05018

9356755020

main93567-55020

25 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE for Toyota LEXUS LBX

This section contains 25 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota LEXUS LBX. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH.
