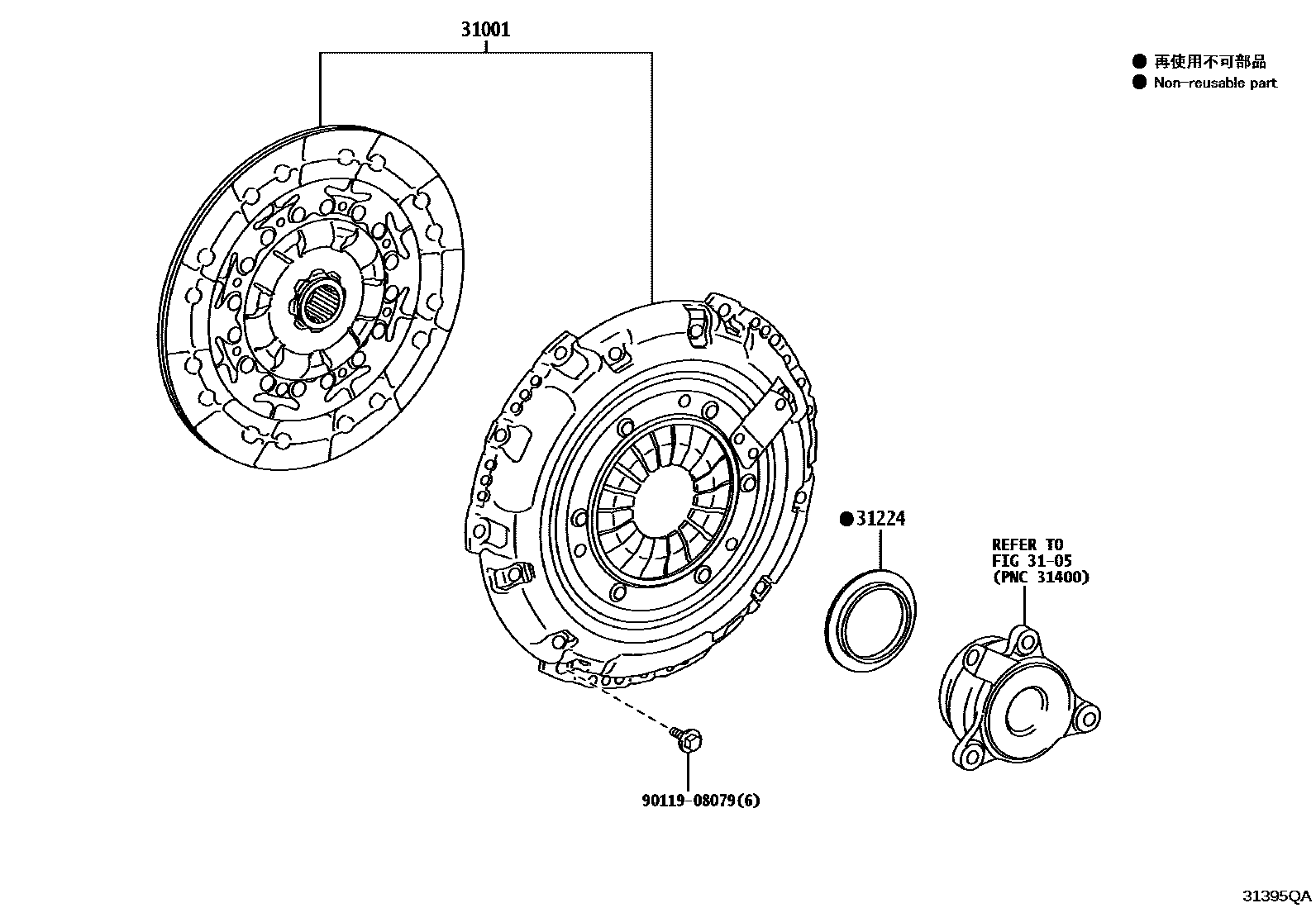

Toyota LEXUS LBX — CLUTCH & RELEASE FORK

31001CLUTCH SET, COVER & DISC

main31001-52011i202408

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31224PLATE, CLUTCH RELEASE BEARING

main31224-52010i202408

9011908079

main90119-08079

4 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota LEXUS LBX

This section contains 4 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota LEXUS LBX. Key components include: CLUTCH SET, COVER & DISC, CLUTCH RELEASE CYLINDER, PLATE, CLUTCH RELEASE BEARING.
