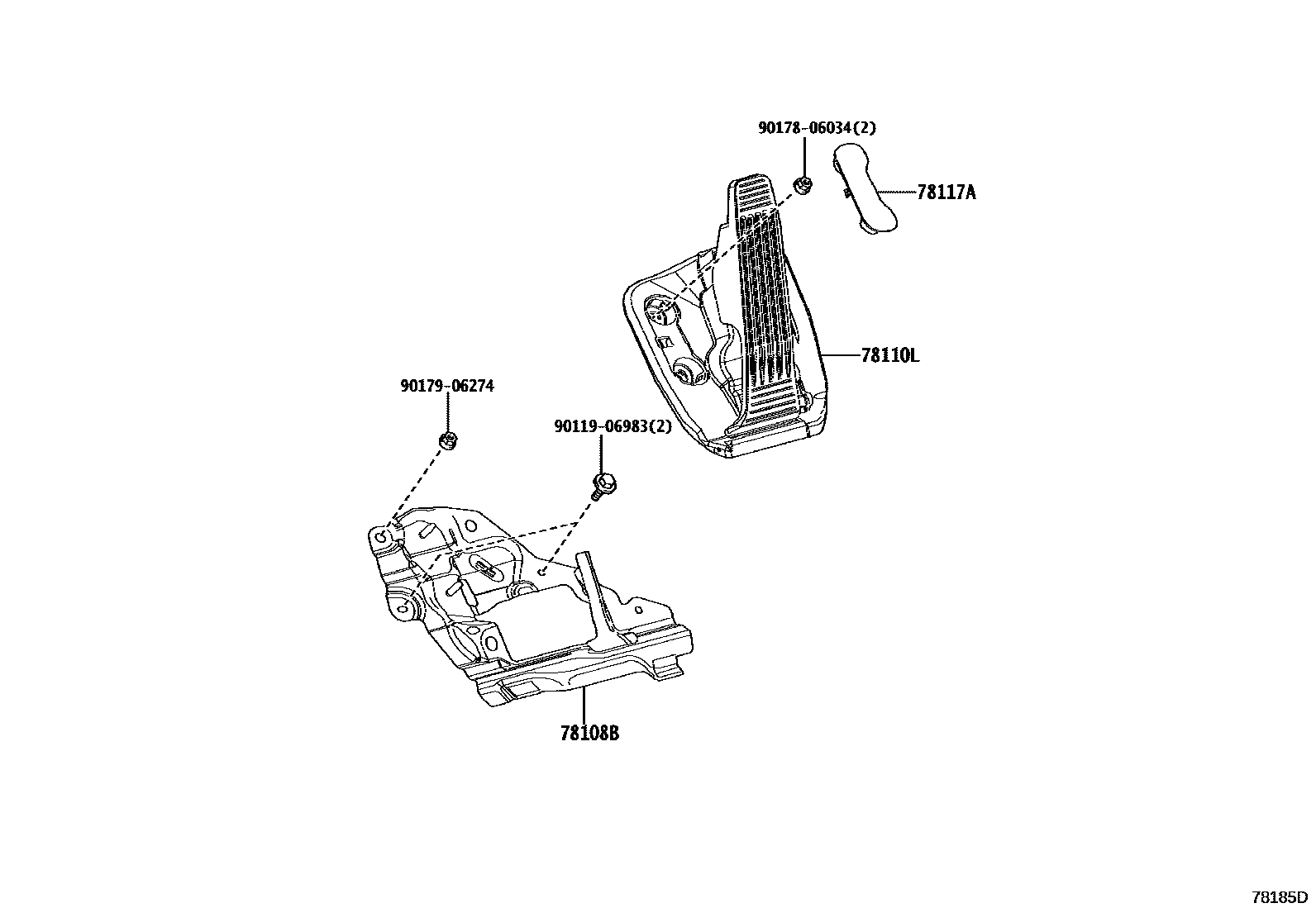

Toyota LEXUS LBX — ACCELERATOR LINK
78108BBRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78110LSENSOR ASSY, ACCELERATOR PEDAL
78117ACOVER, ACCELERATOR PEDAL
9011906983
main90119-06983
9017806034
main90178-06034
9017906274
main90179-06274
6 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota LEXUS LBX
This section contains 6 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LEXUS LBX. Key components include: BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD, SENSOR ASSY, ACCELERATOR PEDAL, COVER, ACCELERATOR PEDAL.
