Toyota LEXUS LBX — ABS & VSC

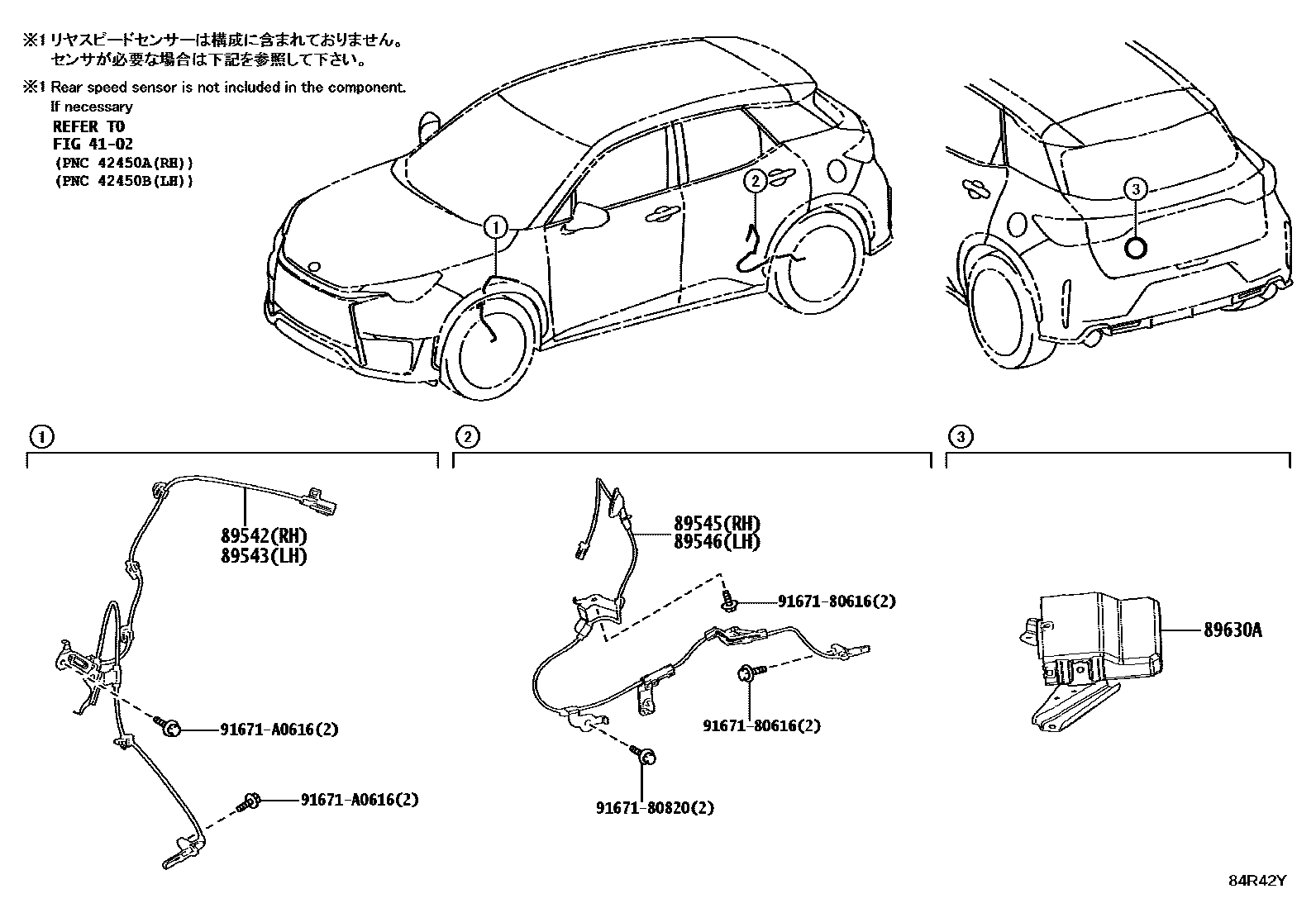

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

89542SENSOR, SPEED, FRONT RH

main89542-52140i202408

89543SENSOR, SPEED, FRONT LH

main89543-52140i202408

89545SENSOR, SPEED, REAR RH

main89545-52080i202408

89546SENSOR, SPEED, REAR LH

main89546-52080i202408

89630ACOMPUTER ASSY, 4WD

main89630-52170i202408

9167180616

main91671-80616

9167180820

main91671-80820

91671A0616

main91671-A0616

9 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota LEXUS LBX

This section contains 12 genuine Toyota parts for the ABS & VSC system of the Toyota LEXUS LBX. Key components include: REAR AXLE SHAFT & HUB, WIRING & CLAMP, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH, SENSOR, SKID CONTROL, REAR RH.
