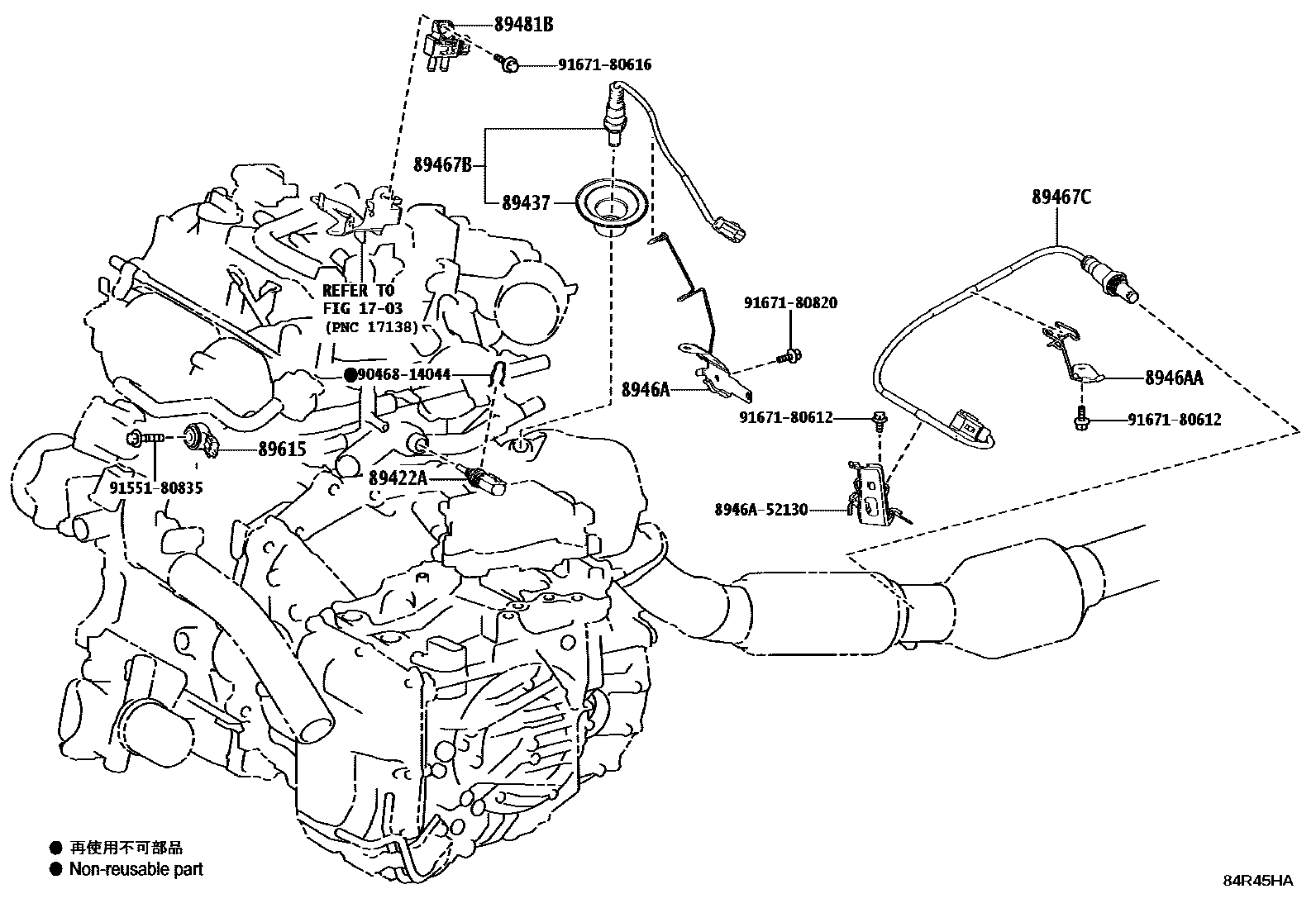

Toyota LEXUS LBX — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM RELAY BLOCK 0003 1COWL 0004 1INTRUMENT PANEL 0005 1CONSOLE BOX 0006 1STEERING 0007 1SEAT 0008 1DOOR & ROOF 0009 1FLOOR & BACK DOOR 1/2 0010 1FLOOR & BACK DOOR 2/2

1703

89422ASENSOR, WATER TEMPERATURE

main89422-33040iGAYA16202408

89437COVER, SENSOR

main89437-52020iGAYA16202408

89467BSENSOR, AIR FUEL RATIO

main89467-52350iGAYA16202408

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-52360iGAYA16202408

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-52110iGAYA16202408

8946AABRACKET, EXHAUST SENSOR CLAMP, NO.2

main8946A-52120iGAYA16202408

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iGAYA16202408

89615SENSOR, KNOCK CONTROL

main89615-20090iGAYA16202408

8946A52130BRACKET, EXHAUST SENSOR CLAMP

main8946A-52130

9046814044

main90468-14044

9155180835

main91551-80835

9167180612

main91671-80612

9167180616

main91671-80616

9167180820

main91671-80820

15 parts on this diagram · 10 diagrams in section
