Toyota LEXUS LBX — MIRROR

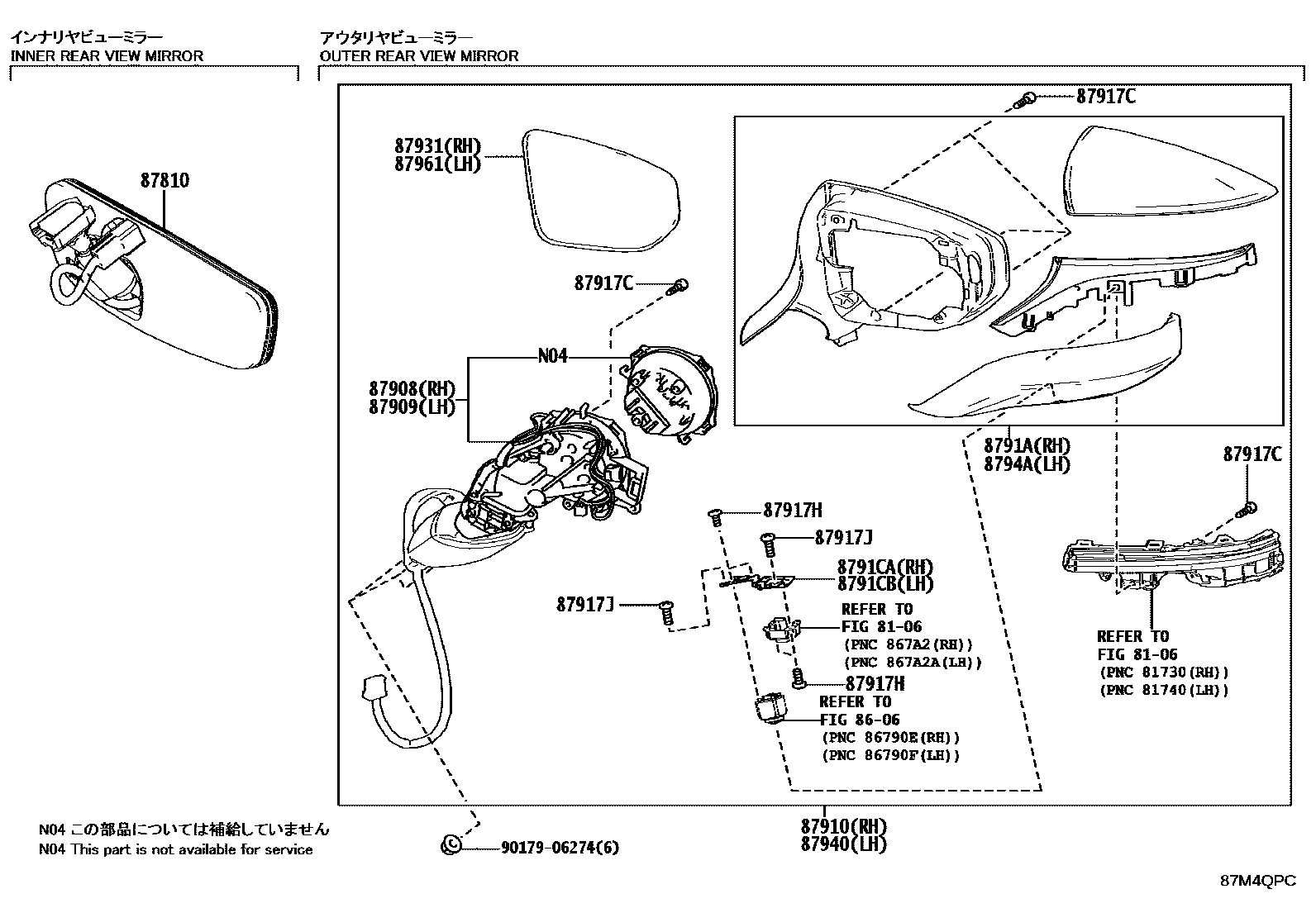

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
8606CAMERA & REAR MONITOR DISPLAY
→ Go to FIG 86-06
87810MIRROR ASSY, INNER REAR VIEW
main87810-0WY90i202408
87908ACTUATOR ASSY, OUTER MIRROR, RH
main87908-52M80-C0supersedes 87908-52M70-C0i202408-202506
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR),BLACK,223 ,2TB ,2YH ,2ZT ,2ZV
87909ACTUATOR ASSY, OUTER MIRROR, LH
main87909-52M90-C0supersedes 87909-52M80-C0i202408-202506
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR),BLACK,223 ,2TB ,2YH ,2ZT ,2ZV
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-52M70i202408-202506
main87910-52M80-C1i202408-202506
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR),BLACK,223 ,2TB ,2YH ,2ZT ,2ZV
87917CSCREW, OUTER MIRROR
main87917-50700×10i202408
87917HSCREW, OUTER MIRROR, NO.2
main87917-52N20×8i202408-202506
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
87917JSCREW, OUTER MIRROR, NO.3
main87917-30D80×4i202408-202506
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
8791ACOVER, OUTER MIRROR, RH NO.2
main8791A-52M80-C0supersedes 8791A-52M70-C0i202408-202506
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR),BLACK,223 ,2TB ,2YH ,2ZT ,2ZV
8791CABRACKET, OUTER MIRROR COVER ADAPTER, RH
main8791C-52M80i202408-202506
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
8791CBBRACKET, OUTER MIRROR COVER ADAPTER, LH
main8791C-52M90i202408-202506
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
87931OUTER MIRROR, RH
main87931-33G01i202408
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-52M80i202408-202506
main87940-52M90-C1i202408-202506
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR),BLACK,223 ,2TB ,2YH ,2ZT ,2ZV
8794ACOVER, OUTER MIRROR, LH NO.2
main8794A-52M90-C0supersedes 8794A-52M80-C0i202408-202506
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR),BLACK,223 ,2TB ,2YH ,2ZT ,2ZV
87961MIRROR OUTER, LH
main87961-53B80i202408
9017906274
main90179-06274

17 parts on this diagram · 1 diagram in section

MIRROR for Toyota LEXUS LBX

This section contains 17 genuine Toyota parts for the MIRROR system of the Toyota LEXUS LBX. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
