Toyota LEXUS LBX — MIRROR

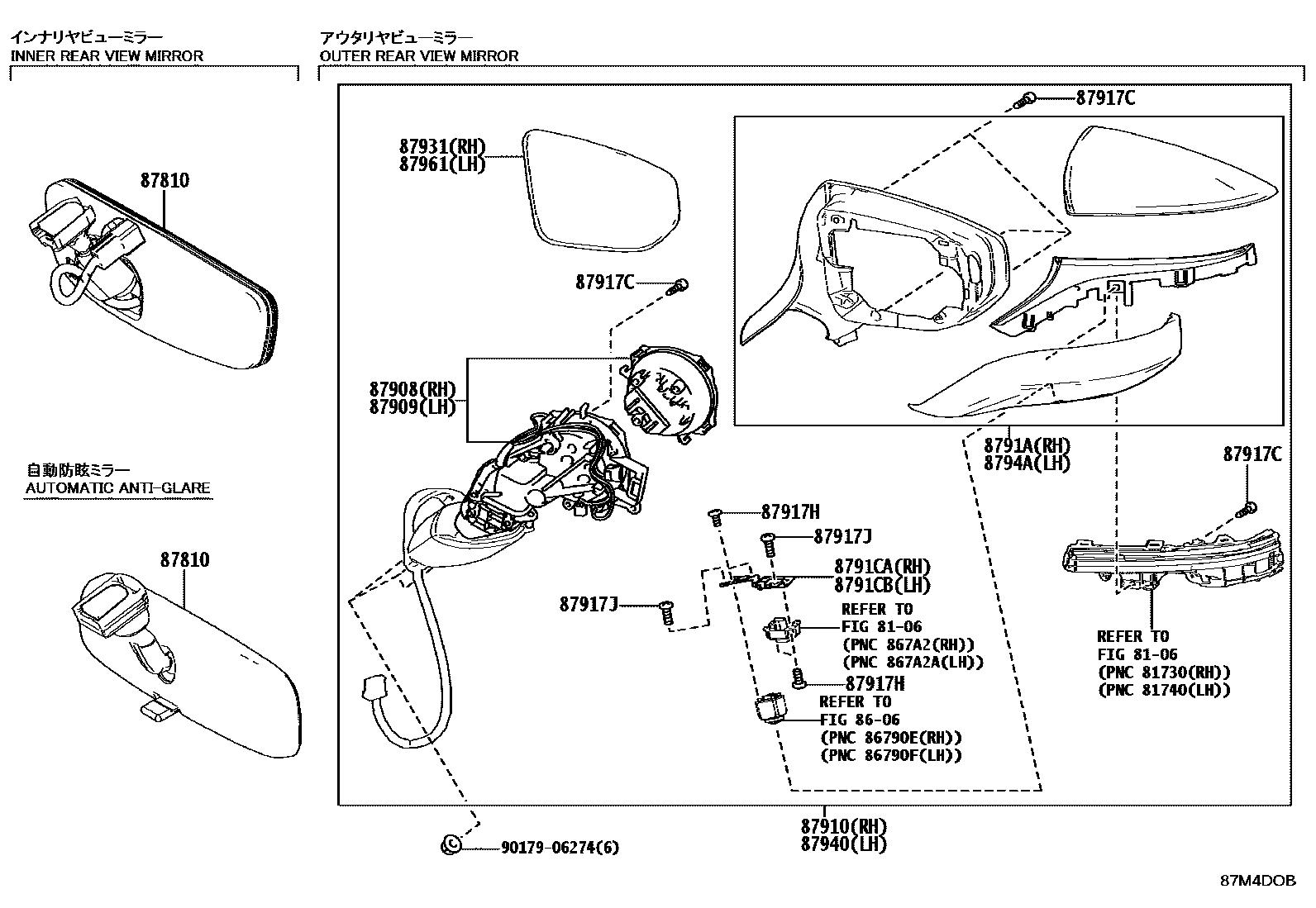

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
8606CAMERA & REAR MONITOR DISPLAY
→ Go to FIG 86-06
87810MIRROR ASSY, INNER REAR VIEW
main87810-0WY10supersedes 87810-28140i202312
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
main87810-0WY90i202312-202506
REAR SIDE GLASS-PRIVACY T=3.5&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR &REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST); REAR SIDE GLASS-PRIVACY T=3.5&OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM&INSIDE REARVIEW MIRROR-AUTOMATIC ANTI-GLARE; REAR SIDE GLASS-PRIVACY T=3.5&OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&INSIDEREAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87908ACTUATOR ASSY, OUTER MIRROR, RH
main87908-52M60i202312
main87908-52N00supersedes 87908-52M90i202312
main87908-52M70-C0i202312
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &*ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main87908-52M80-C0supersedes 87908-52M70-C0i202312-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST),BLACK,085,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main87908-52N10-C0i202312-202506
OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main87908-52N20-C0i202312-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST),BLACK,085,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5,5A3 ,8W7
87909ACTUATOR ASSY, OUTER MIRROR, LH
main87909-52M70i202312
main87909-52N10supersedes 87909-52N00i202312
main87909-52M80-C0i202312-202506
BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main87909-52M90-C0i202312-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST),BLACK,085,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main87909-52N20-C0i202312-202506
OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main87909-52N30-C0i202312-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST),BLACK,085,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5,5A3 ,8W7
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-52M60-C1i202312
BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main87910-52M70-C1i202312-202506
BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main87910-52M80-C1i202312
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5,5A3 ,8W7
main87910-52N00-C1supersedes 87910-52M90-C1i202312-202506
OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main87910-52N10-C1supersedes 87910-52N00-C1i202312
BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main87910-52N20-C1i202312-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST),BLACK,085,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5,5A3 ,8W7
87917CSCREW, OUTER MIRROR
main87917-50700×10i202312
87917HSCREW, OUTER MIRROR, NO.2
main87917-52M80×8i202312-202407
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST); INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST); INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST); PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
main87917-52N20×8i202407-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST); PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
87917JSCREW, OUTER MIRROR, NO.3
main87917-30D80×4i202312-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST); PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
8791ACOVER, OUTER MIRROR, RH NO.2
main8791A-52M70i202312
main8791A-52N10i202312
main8791A-52M70-C0i202312
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &*ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main8791A-52M80-C0supersedes 8791A-52M70-C0i202312-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST),BLACK,085,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main8791A-52N10-C0i202312
BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main8791A-52N20-C0i202312-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST),BLACK,085,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5,5A3 ,8W7
8791CABRACKET, OUTER MIRROR COVER ADAPTER, RH
main8791C-52M80i202312-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST); PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
main8791C-52N20i202312-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST)
8791CBBRACKET, OUTER MIRROR COVER ADAPTER, LH
main8791C-52M90i202312-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST); PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
main8791C-52N30i202312-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST)
87931OUTER MIRROR, RH
main87931-33G01i202312
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST); INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST); INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &*ARFHL & SAFE EXIT ASSIST); INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &SAFE EXIT ASSIST)
main87931-52M60i202312
main87931-53B20i202312
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &SAFE EXIT ASSIST)
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-52M70-C1i202312
BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main87940-52M80-C1i202312-202506
BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main87940-52M90-C1i202312
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5,5A3 ,8W7
main87940-52N10-C1supersedes 87940-52N00-C1i202312-202506
OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main87940-52N20-C1supersedes 87940-52N10-C1i202312
BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main87940-52N30-C1supersedes 87940-52N10-C1i202312-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST),BLACK,085,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5,5A3 ,8W7
8794ACOVER, OUTER MIRROR, LH NO.2
main8794A-52M80i202312
main8794A-52N20i202312
main8794A-52M80-C0i202312
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &*ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main8794A-52M90-C0i202312
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5,5A3 ,8W7
main8794A-52N20-C0i202312-202506
OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7
main8794A-52N30-C0i202312-202506
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST),BLACK,085,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5 ,5A3 ,8W7; OUTSIDE REAR VIEW MIRROR-*AREM,*RIF,*BSM,*PVM&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1F7 ,1H5 ,1L1 ,209 ,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,3U5 ,4Y5,5A3 ,8W7
87961MIRROR OUTER, LH
main87961-33G01i202312
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &SAFE EXIT ASSIST)
main87961-52M70i202312
main87961-53B80i202312
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST); INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST); INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &*ARFHL & SAFE EXIT ASSIST); INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&REAR & REAR SIDE MONITOR-WITH(*BSM &SAFE EXIT ASSIST)
9017906274
main90179-06274

17 parts on this diagram · 1 diagram in section

MIRROR for Toyota LEXUS LBX

This section contains 17 genuine Toyota parts for the MIRROR system of the Toyota LEXUS LBX. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
