Toyota LEXUS LBX — METER

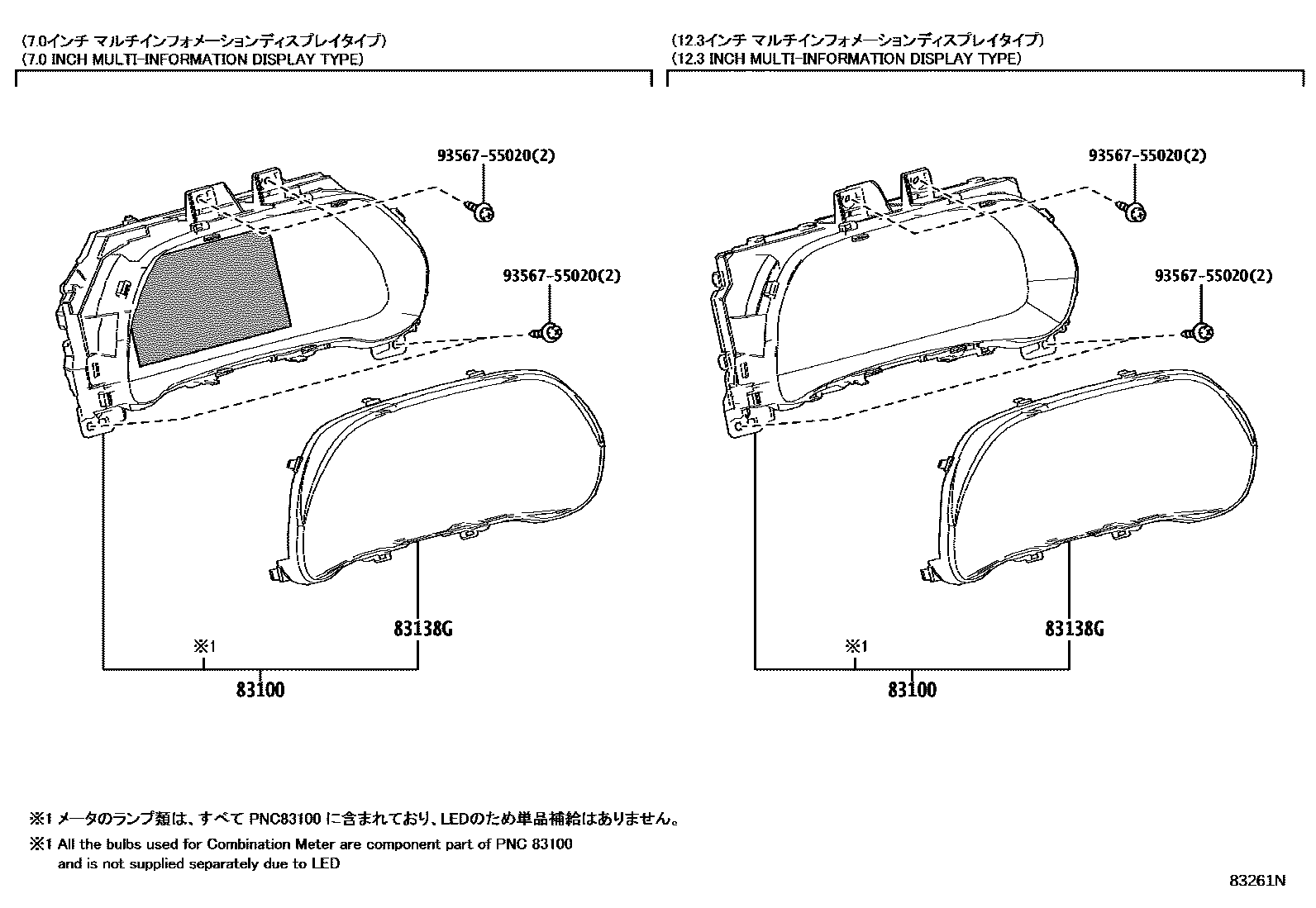

Parts diagram

83100METER ASSY, COMBINATION

main83800-5D530i202312-202407

DENSO,*614

main83800-5D531i202408

DENSO,*614

main83800-5D540i202312-202407

DENSO,*614

main83800-5D541i202408

DENSO,*614

main83800-5D550i202312-202407

DENSO,SPEEDOMETER-12.3 INCHI(KM/H),*614

main83800-5D551i202408-202410

DENSO,SPEEDOMETER-12.3 INCHI(MPH),*614

main83800-5D552i202411-202506

DENSO,SPEEDOMETER-12.3 INCHI(MPH),*614

main83800-5D560i202312-202407

DENSO,MACAU SPEC,*614

main83800-5D561i202408-202506

DENSO,MACAU SPEC,*614

83138GGLASS, COMBINATION METER

main83852-5D610i202312

9356755020

main93567-55020

3 parts on this diagram · 3 diagrams in section
