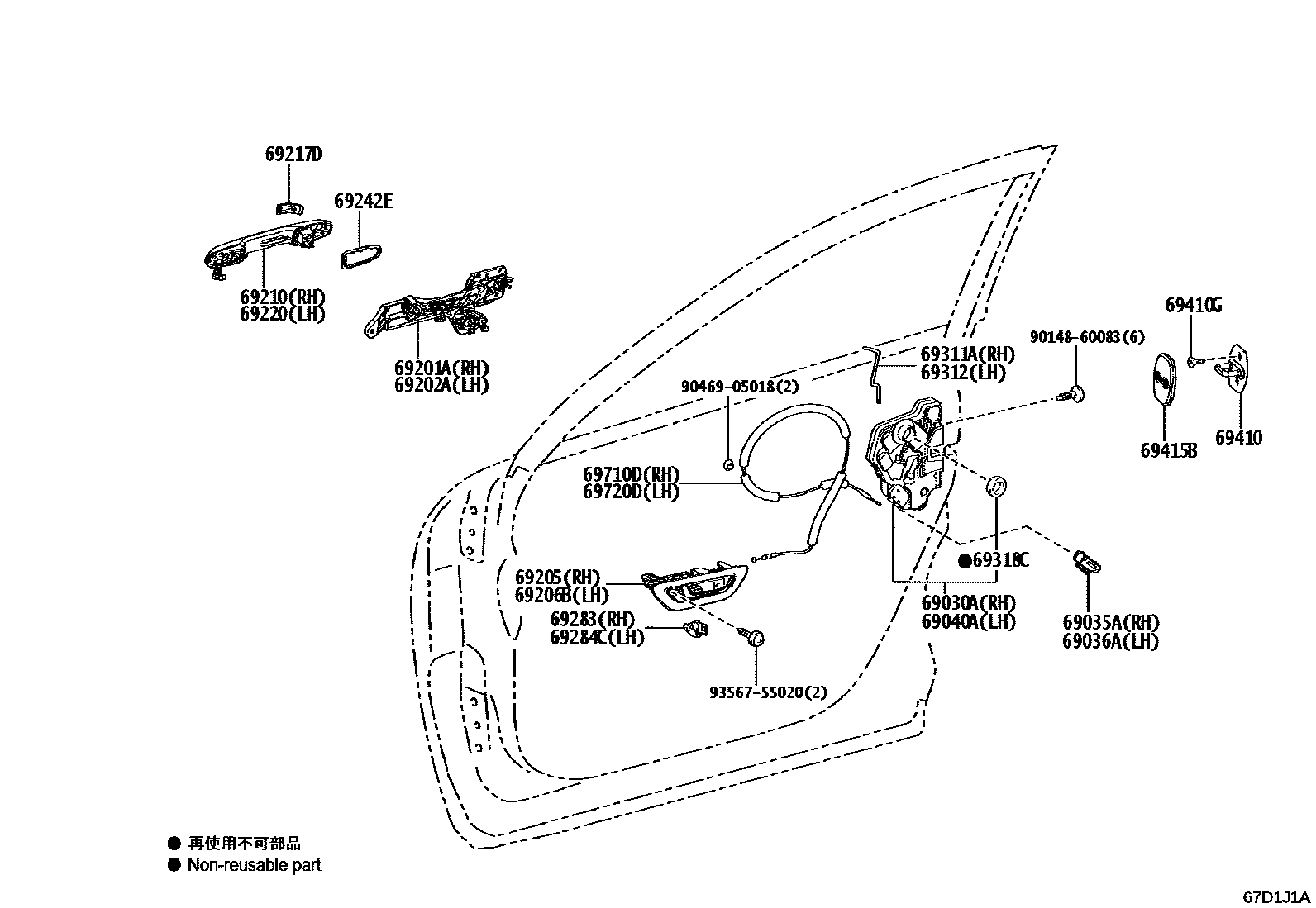

Toyota LEXUS LBX — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.METAL,TRIM0#,2#,3#,4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.METAL,TRIM0#,2#,3#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE NOVA GF.,2ZT
SONIC CHROME,2YH
GRAPHITE BLACK GF.,223
EMOTIONAL RED 2,2TB
HEAT BLUE CONTRAST LAYERI,2ZV
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
WHITE NOVA GF.,2ZT
SONIC CHROME,2YH
GRAPHITE BLACK GF.,223
EMOTIONAL RED 2,2TB
HEAT BLUE CONTRAST LAYERI,2ZV
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE NOVA GF.,2ZT
SONIC CHROME,2YH
GRAPHITE BLACK GF.,223
EMOTIONAL RED 2,2TB
HEAT BLUE CONTRAST LAYERI,2ZV
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69410GSCREW, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
9014860083
main90148-60083
9046905018
main90469-05018
9356755020
main93567-55020
25 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota LEXUS LBX
This section contains 25 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota LEXUS LBX. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH.
