Toyota LEXUS LBX — FRONT DOOR LOCK & HANDLE

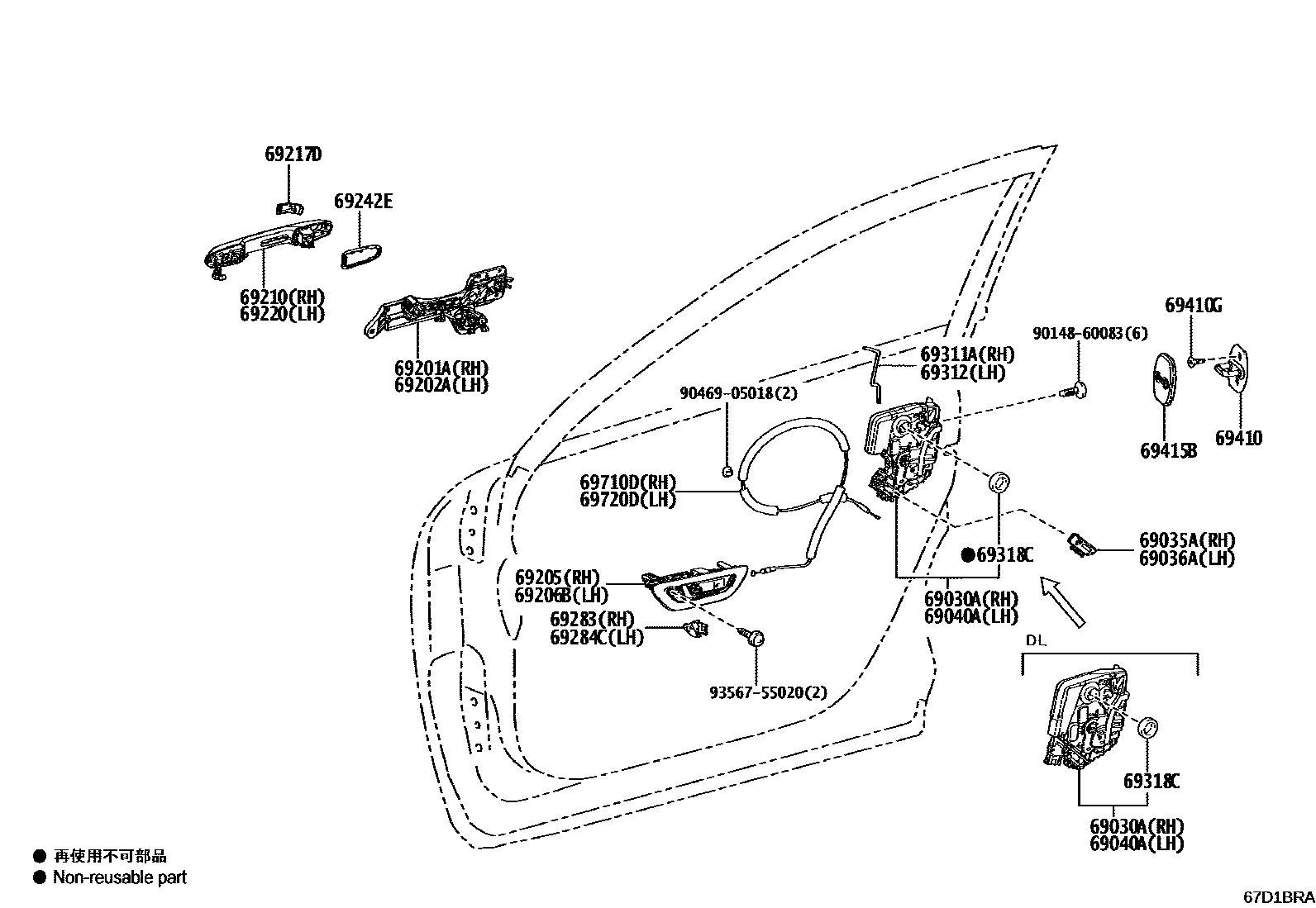

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-78100supersedes 69030-78130i202312
CYPRUS SPEC; IRELAND SPEC; MALTA SPEC
main69030-78120i202312
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-78010i202312
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
main69036-78010i202312
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-78080supersedes 69040-78110i202312
CYPRUS SPEC; IRELAND SPEC; MALTA SPEC
main69040-78100i202312
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-52210supersedes 69201-52200i202312
CYPRUS SPEC; CYPRUS SPEC&SMART ENTRY-WITH; IRELAND SPEC; IRELAND SPEC&SMART ENTRY-WITH; MALTA SPEC; MALTA SPEC&SMART ENTRY-WITH
main69201-52220i202312
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-52100i202312
main69202-52110i202312
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69070-52040-B0i202312
DK.METAL,TRIM0#,2#,3#,4#,8#; DK.METAL,TRIM0#,20,21,22,3#,4#,8#
main69070-52040-C0i202312
BLACK,TRIM21
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69080-52070-B0i202312
DK.METAL,TRIM0#,2#,3#,4#,8#; DK.METAL,TRIM0#,20,21,22,3#,4#,8#
main69080-52070-C0i202312
BLACK,TRIM21
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-52151-A0i202312
CYPRUS SPEC&SMART ENTRY-WITH,SONIC QUARTZ,085 ,2YM; IRELAND SPEC&SMART ENTRY-WITH,SONIC QUARTZ,085 ,2YM; MALTA SPEC&SMART ENTRY-WITH,SONIC QUARTZ,085 ,2YM; SMART ENTRY-WITH,SONIC QUARTZ,085 ,2YM
main69210-52151-B0i202312
CYPRUS SPEC&SMART ENTRY-WITH,SILVER ME.,1F7 ,2LB; IRELAND SPEC&SMART ENTRY-WITH,SILVER ME.,1F7 ,2LB; MALTA SPEC&SMART ENTRY-WITH,SILVER ME.,1F7 ,2LB; SMART ENTRY-WITH,SILVER ME.,1F7 ,2LB
main69210-52151-B1i202312
CYPRUS SPEC&SMART ENTRY-WITH,CEMENT GRAY ME.,1H5 ,2YN; IRELAND SPEC&SMART ENTRY-WITH,CEMENT GRAY ME.,1H5 ,2YN; MALTA SPEC&SMART ENTRY-WITH,CEMENT GRAY ME.,1H5 ,2YN; SMART ENTRY-WITH,CEMENT GRAY ME.,1H5 ,2YN
main69210-52151-B2i202312
CYPRUS SPEC&SMART ENTRY-WITH,SONIC CHROME,1L1 ,2YH; IRELAND SPEC&SMART ENTRY-WITH,SONIC CHROME,1L1 ,2YH; MALTA SPEC&SMART ENTRY-WITH,SONIC CHROME,1L1 ,2YH; SMART ENTRY-WITH,SONIC CHROME,1L1 ,2YH
main69210-52151-C0i202312
CYPRUS SPEC&SMART ENTRY-WITH,BLACK MC.,209; IRELAND SPEC&SMART ENTRY-WITH,BLACK MC.,209; MALTA SPEC&SMART ENTRY-WITH,BLACK MC.,209; SMART ENTRY-WITH,BLACK MC.,209
main69210-52151-D0i202312
CYPRUS SPEC&SMART ENTRY-WITH,EMOTIONAL RED 2,2TB ,3U5; IRELAND SPEC&SMART ENTRY-WITH,EMOTIONAL RED 2,2TB ,3U5; MALTA SPEC&SMART ENTRY-WITH,EMOTIONAL RED 2,2TB ,3U5; SMART ENTRY-WITH,EMOTIONAL RED 2,2TB ,3U5
main69210-52151-E0i202312
CYPRUS SPEC&SMART ENTRY-WITH,SONIC COPPER,2YF ,4Y5; IRELAND SPEC&SMART ENTRY-WITH,SONIC COPPER,2YF ,4Y5; MALTA SPEC&SMART ENTRY-WITH,SONIC COPPER,2YF ,4Y5; SMART ENTRY-WITH,SONIC COPPER,2YF ,4Y5
main69210-52151-F0i202312
CYPRUS SPEC&SMART ENTRY-WITH,YELLOW,2PQ ,5A3; IRELAND SPEC&SMART ENTRY-WITH,YELLOW,2PQ ,5A3; MALTA SPEC&SMART ENTRY-WITH,YELLOW,2PQ ,5A3; SMART ENTRY-WITH,YELLOW,2PQ ,5A3
main69210-52151-J0i202312
CYPRUS SPEC&SMART ENTRY-WITH,DK.BLUE M.M.,2VT ,8W7; IRELAND SPEC&SMART ENTRY-WITH,DK.BLUE M.M.,2VT ,8W7; MALTA SPEC&SMART ENTRY-WITH,DK.BLUE M.M.,2VT ,8W7; SMART ENTRY-WITH,DK.BLUE M.M.,2VT ,8W7
main69210-52161-A0supersedes 69210-78082-A1i202312
SMART ENTRY-WITH,SONIC QUARTZ,085 ,2YM
main69210-52161-B0supersedes 69210-78082-B2i202312
SMART ENTRY-WITH,SILVER ME.,1F7 ,2LB
main69210-52161-B1supersedes 69210-78082-B3i202312
SMART ENTRY-WITH,CEMENT GRAY ME.,1H5 ,2YN
main69210-52161-B2supersedes 69210-78082-B1i202312
SMART ENTRY-WITH,SONIC CHROME,1L1 ,2YH
main69210-52161-C0supersedes 69210-78082-C2i202312
SMART ENTRY-WITH,BLACK MC.,209
main69210-52161-D0supersedes 69210-78082-D1i202312
SMART ENTRY-WITH,EMOTIONAL RED 2,2TB ,3U5
main69210-52161-E0supersedes 69210-78082-E1i202312
SMART ENTRY-WITH,SONIC COPPER,2YF ,4Y5
main69210-52161-F0supersedes 69210-78082-F0i202312
SMART ENTRY-WITH,YELLOW,2PQ ,5A3
main69210-52161-J0supersedes 69210-78082-J2i202312
SMART ENTRY-WITH,DK.BLUE M.M.,2VT ,8W7
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-78020-A1i202312
SONIC QUARTZ,085 ,2YM
main69217-78020-B1i202312
SONIC CHROME,1L1 ,2YH
main69217-78020-B6i202312
SILVER ME.,1F7 ,2LB
main69217-78020-B7i202312
CEMENT GRAY ME.,1H5 ,2YN
main69217-78020-C2i202312
BLACK MC.,209
main69217-78020-D2i202312
EMOTIONAL RED 2,2TB ,3U5
main69217-78020-E1i202312
SONIC COPPER,2YF ,4Y5
main69217-78020-F0i202312
YELLOW,2PQ ,5A3
main69217-78020-J4i202312
DK.BLUE M.M.,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,8W7
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-52081-A0i202312
CYPRUS SPEC&SMART ENTRY-WITH,SONIC QUARTZ,085 ,2YM; IRELAND SPEC&SMART ENTRY-WITH,SONIC QUARTZ,085 ,2YM; MALTA SPEC&SMART ENTRY-WITH,SONIC QUARTZ,085 ,2YM; SMART ENTRY-WITH,SONIC QUARTZ,085 ,2YM
main69220-52081-B0i202312
CYPRUS SPEC&SMART ENTRY-WITH,SILVER ME.,1F7 ,2LB; IRELAND SPEC&SMART ENTRY-WITH,SILVER ME.,1F7 ,2LB; MALTA SPEC&SMART ENTRY-WITH,SILVER ME.,1F7 ,2LB; SMART ENTRY-WITH,SILVER ME.,1F7 ,2LB
main69220-52081-B1i202312
CYPRUS SPEC&SMART ENTRY-WITH,CEMENT GRAY ME.,1H5 ,2YN; IRELAND SPEC&SMART ENTRY-WITH,CEMENT GRAY ME.,1H5 ,2YN; MALTA SPEC&SMART ENTRY-WITH,CEMENT GRAY ME.,1H5 ,2YN; SMART ENTRY-WITH,CEMENT GRAY ME.,1H5 ,2YN
main69220-52081-B2i202312
CYPRUS SPEC&SMART ENTRY-WITH,SONIC CHROME,1L1 ,2YH; IRELAND SPEC&SMART ENTRY-WITH,SONIC CHROME,1L1 ,2YH; MALTA SPEC&SMART ENTRY-WITH,SONIC CHROME,1L1 ,2YH; SMART ENTRY-WITH,SONIC CHROME,1L1 ,2YH
main69220-52081-C0i202312
CYPRUS SPEC&SMART ENTRY-WITH,BLACK MC.,209; IRELAND SPEC&SMART ENTRY-WITH,BLACK MC.,209; MALTA SPEC&SMART ENTRY-WITH,BLACK MC.,209; SMART ENTRY-WITH,BLACK MC.,209
main69220-52081-D0i202312
CYPRUS SPEC&SMART ENTRY-WITH,EMOTIONAL RED 2,2TB ,3U5; IRELAND SPEC&SMART ENTRY-WITH,EMOTIONAL RED 2,2TB ,3U5; MALTA SPEC&SMART ENTRY-WITH,EMOTIONAL RED 2,2TB ,3U5; SMART ENTRY-WITH,EMOTIONAL RED 2,2TB ,3U5
main69220-52081-E0i202312
CYPRUS SPEC&SMART ENTRY-WITH,SONIC COPPER,2YF ,4Y5; IRELAND SPEC&SMART ENTRY-WITH,SONIC COPPER,2YF ,4Y5; MALTA SPEC&SMART ENTRY-WITH,SONIC COPPER,2YF ,4Y5; SMART ENTRY-WITH,SONIC COPPER,2YF ,4Y5
main69220-52081-F0i202312
CYPRUS SPEC&SMART ENTRY-WITH,YELLOW,2PQ ,5A3; IRELAND SPEC&SMART ENTRY-WITH,YELLOW,2PQ ,5A3; MALTA SPEC&SMART ENTRY-WITH,YELLOW,2PQ ,5A3; SMART ENTRY-WITH,YELLOW,2PQ ,5A3
main69220-52081-J0i202312
CYPRUS SPEC&SMART ENTRY-WITH,DK.BLUE M.M.,2VT ,8W7; IRELAND SPEC&SMART ENTRY-WITH,DK.BLUE M.M.,2VT ,8W7; MALTA SPEC&SMART ENTRY-WITH,DK.BLUE M.M.,2VT ,8W7; SMART ENTRY-WITH,DK.BLUE M.M.,2VT ,8W7
main69220-52091-A0supersedes 69220-78082-A1i202312
SMART ENTRY-WITH,SONIC QUARTZ,085 ,2YM
main69220-52091-B0supersedes 69220-78082-B2i202312
SMART ENTRY-WITH,SILVER ME.,1F7 ,2LB
main69220-52091-B1supersedes 69220-78082-B3i202312
SMART ENTRY-WITH,CEMENT GRAY ME.,1H5 ,2YN
main69220-52091-B2supersedes 69220-78082-B1i202312
SMART ENTRY-WITH,SONIC CHROME,1L1 ,2YH
main69220-52091-C0supersedes 69220-78082-C2i202312
SMART ENTRY-WITH,BLACK MC.,209
main69220-52091-D0supersedes 69220-78082-D1i202312
SMART ENTRY-WITH,EMOTIONAL RED 2,2TB ,3U5
main69220-52091-E0supersedes 69220-78082-E1i202312
SMART ENTRY-WITH,SONIC COPPER,2YF ,4Y5
main69220-52091-F0supersedes 69220-78082-F0i202312
SMART ENTRY-WITH,YELLOW,2PQ ,5A3
main69220-52091-J0supersedes 69220-78082-J2i202312
SMART ENTRY-WITH,DK.BLUE M.M.,2VT ,8W7
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69241-78030×2i202312
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-52020-C0i202312
BLACK
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-52010-C0i202312
BLACK
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-52300i202312
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-52270i202312
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2i202312
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33030×2i202312
69410GSCREW, FRONT DOOR LOCK STRIKER
main90148-80066×4i202312
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-60020×2i202312
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
main69710-52280i202312
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
main69710-52280i202312
9014860083
main90148-60083
9046905018
main90469-05018
9356755020
main93567-55020

25 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE for Toyota LEXUS LBX

This section contains 25 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota LEXUS LBX. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH.
