Toyota LEXUS LBX — FRONT AXLE HUB

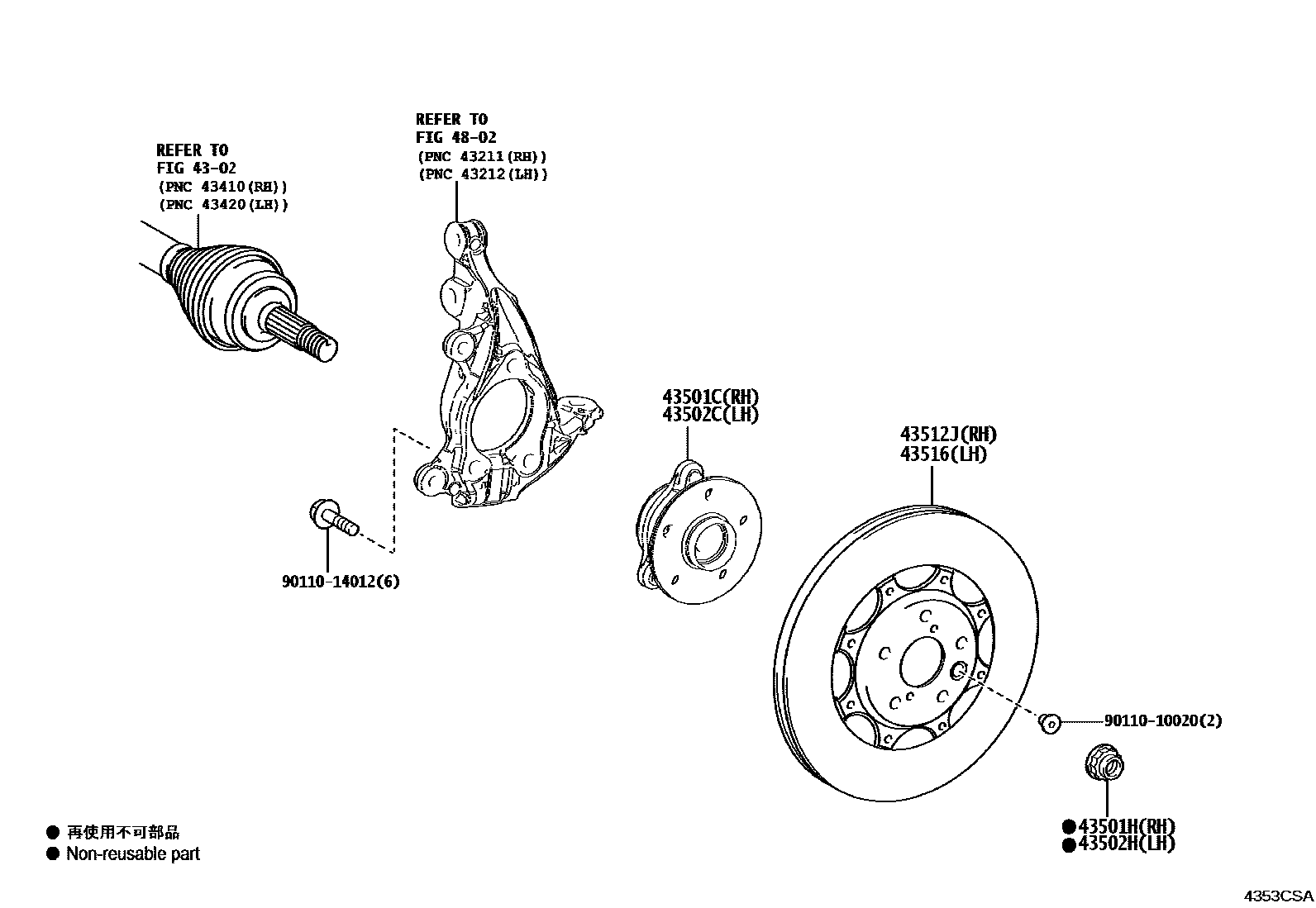

Parts diagram

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-47060i202408

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i202408

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-47060i202408

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i202408

43512JDISC, FRONT RH

main43512-52220i202408

43516DISC, FRONT LH

main43516-52040i202408

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9011010020

main90110-10020

9011014012

main90110-14012

10 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota LEXUS LBX

This section contains 10 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota LEXUS LBX. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH, NUT (FOR FRONT AXLE SHAFT LH).
