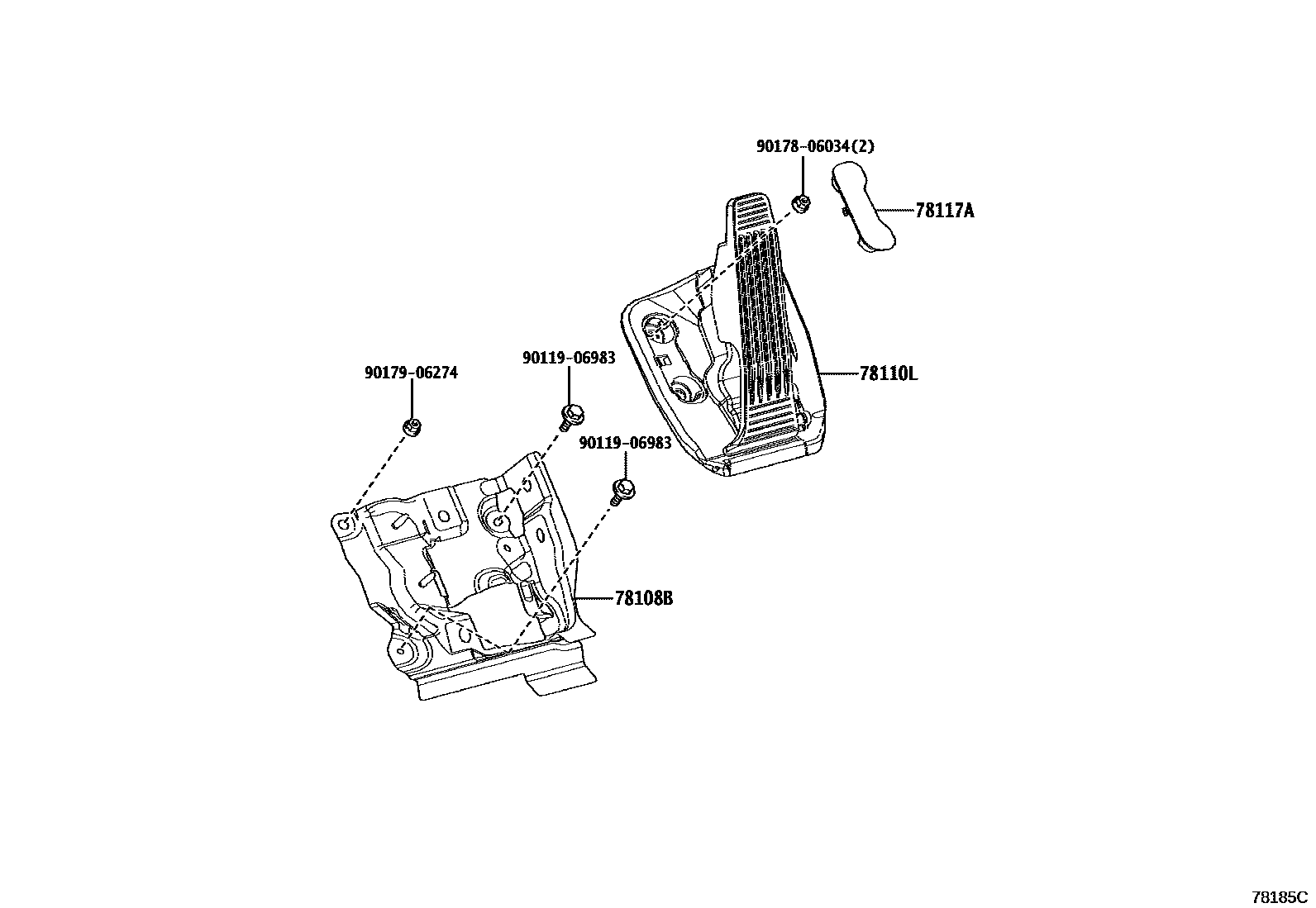

Toyota LEXUS LBX — ACCELERATOR LINK

0001 1 0002 1

78108BBRACKET SUB-ASSY, ACCELERATOR TORQUE ROD

main78108-52010iMAYH1#..LHD202312

main78108-52020iMAYH1#..RHD202312

78110LSENSOR ASSY, ACCELERATOR PEDAL

main78110-47110iMAYH1#202312

78117ACOVER, ACCELERATOR PEDAL

main78117-47010iMAYH1#202312

9011906983

main90119-06983

9017806034

main90178-06034

9017906274

main90179-06274

6 parts on this diagram · 2 diagrams in section
