Toyota LEXUS LBX — ABS & VSC

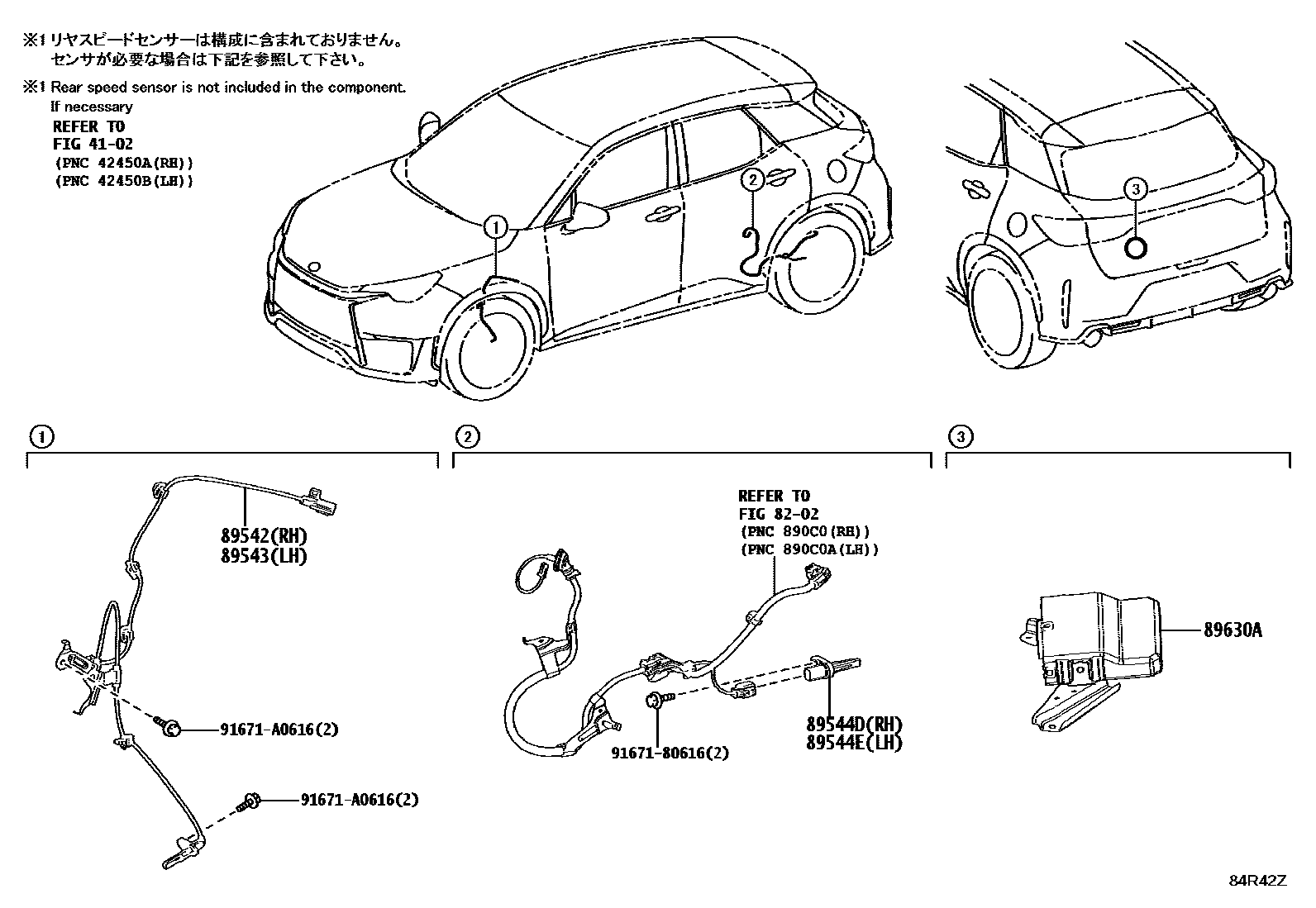

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

89542SENSOR, SPEED, FRONT RH

main89542-52140i202408

89543SENSOR, SPEED, FRONT LH

main89543-52140i202408

89544DSENSOR, SKID CONTROL, REAR RH

main89544-52050i202408

89544ESENSOR, SKID CONTROL, REAR LH

main89544-52050i202408

89630ACOMPUTER ASSY, 4WD

main89630-52170i202408

*614

9167180616

main91671-80616

91671A0616

main91671-A0616

9 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota LEXUS LBX

This section contains 9 genuine Toyota parts for the ABS & VSC system of the Toyota LEXUS LBX. Key components include: REAR AXLE SHAFT & HUB, WIRING & CLAMP, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH, SENSOR, SKID CONTROL, REAR RH.
