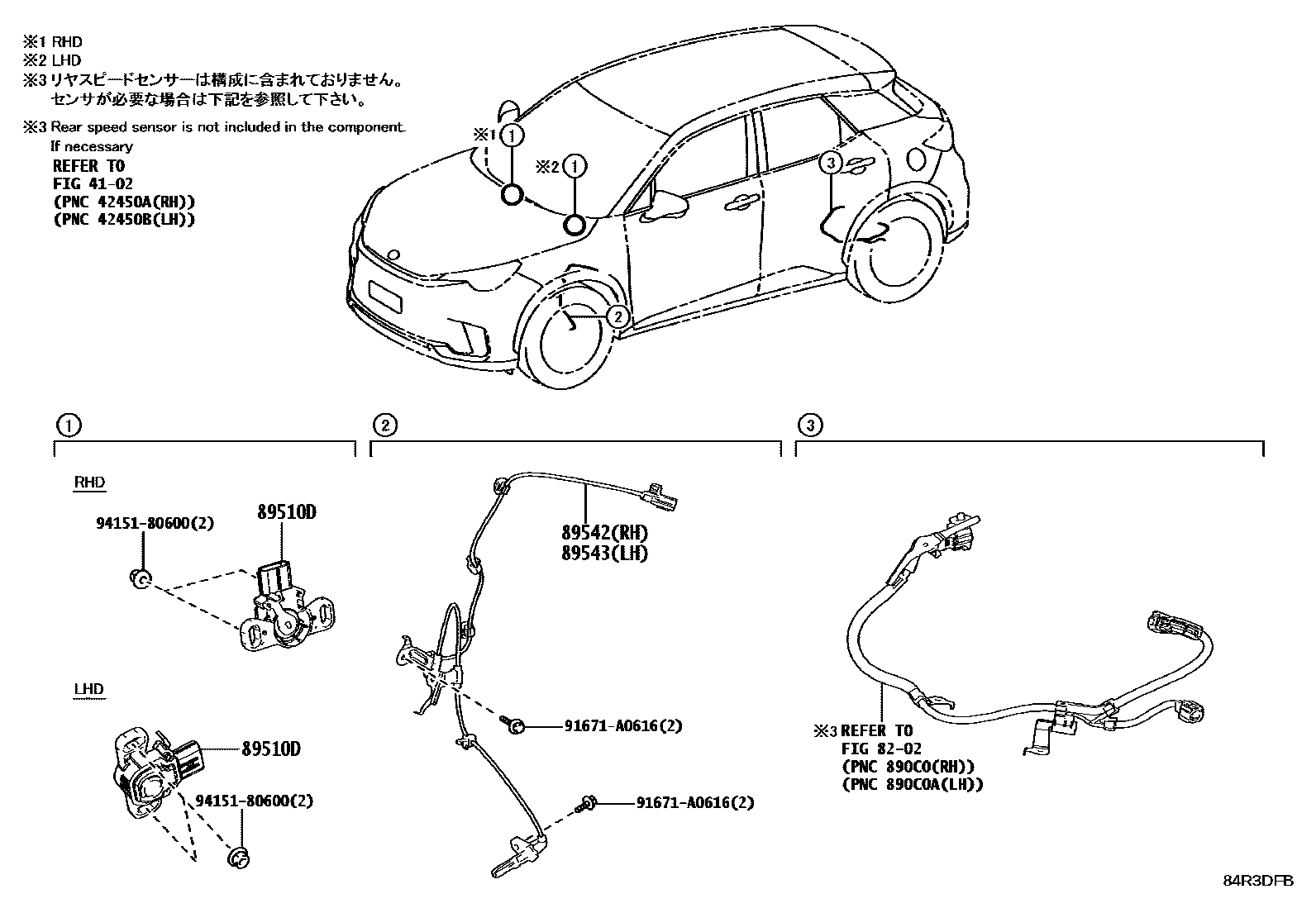

Toyota LEXUS LBX — ABS & VSC
4102REAR AXLE SHAFT & HUB
8202WIRING & CLAMP
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
91671A0616
main91671-A0616
9415180600
main94151-80600
7 parts on this diagram · 2 diagrams in section
ABS & VSC for Toyota LEXUS LBX
This section contains 10 genuine Toyota parts for the ABS & VSC system of the Toyota LEXUS LBX. Key components include: REAR AXLE SHAFT & HUB, WIRING & CLAMP, SENSOR ASSY, BRAKE PEDAL STROKE, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH.
