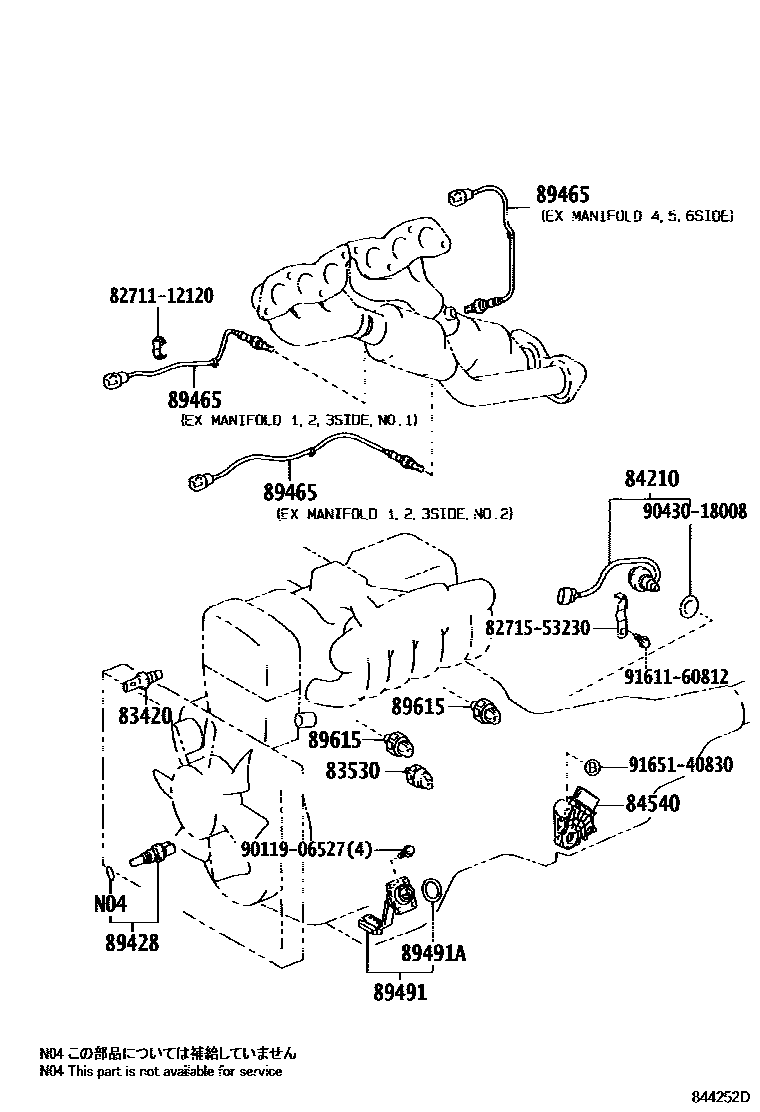

Toyota LEXUS IS300 — SWITCH & RELAY & COMPUTER

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-30020i200005-200107

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020i200005-200107

DENSO

main83530-60020i200005-200107

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060i200304

84540SWITCH ASSY, NEUTRAL START

main84540-30320i200005-200107

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20110i200005-200107

89465SENSOR, OXYGEN

main89465-53090i200005-200006

EX MANIFOLD 1,2,3SIDE,NO.1

main89465-53100i200005-200006

EX MANIFOLD 4,5,6SIDE

main89465-53110i200005-200107

EX MANIFOLD 1,2,3SIDE,NO.2

main89465-53120i200005-200212

EXHAUST PIPE

main89465-53140i200006-200107

EX MANIFOLD 1,2,3SIDE,NO.1

main89465-53150i200006-200107

EX MANIFOLD 4,5,6SIDE

main89465-53190i200212

EXHAUST PIPE

main89465-53200i200107

EX MANIFOLD 1,2,3SIDE,NO.2

main89465-53210i200107

EX MANIFOLD 1,2,3SIDE,NO.1

89491SENSOR, ENGINE OIL LEVEL

main89491-30010i200005-200107

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001i200005-200107

89615SENSOR, KNOCK CONTROL

main89615-12090i200005-200107

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

8271553230BRACKET,WIRING HARNESS CLAMP

main82715-53230

9011906527

main90119-06527

9043018008

main90430-18008

9161160812

main91611-60812

9165140830

main91651-40830

15 parts on this diagram · 7 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota LEXUS IS300

This section contains 140 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LEXUS IS300. Key components include: COVER, FUEL PUMP RESISTOR, RELAY ASSY, STARTER, RESISTER, FUEL PUMP, FLASHER ASSY, TURN SIGNAL, WIRING & CLAMP.
