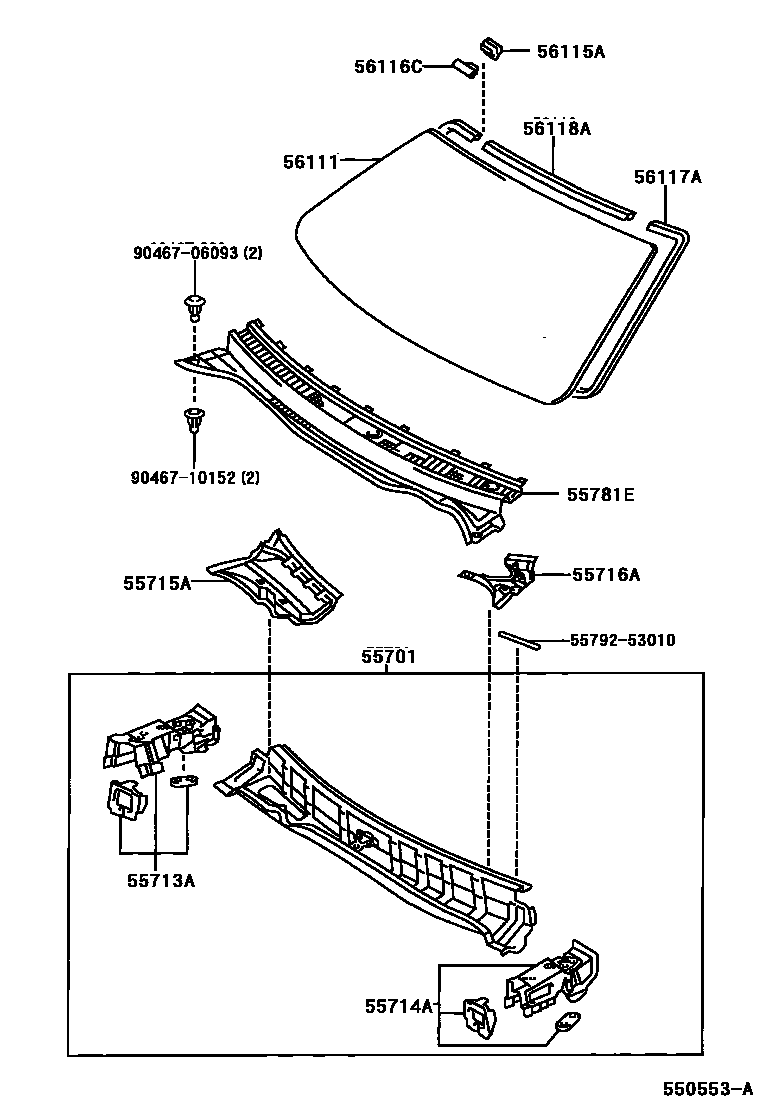

Toyota LEXUS IS300 — COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-53040i200005-200107

55713APANEL, COWL TOP SIDE, RH

main55713-53900i200005-200107

55714APANEL, COWL TOP SIDE, LH

main55714-53900i200005-200107

55715ABRACE, COWL TOP TO APRON, RH

main55715-53020i200005-200107

55716ABRACE, COWL TOP TO APRON, LH

main55716-53020i200005-200107

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-53030i200005-200107

main55708-53031i200307

56111GLASS, WINDSHIELD

main56111-53041i200005-200107

*TL,T=4.7,GREEN

main56111-53042i200107

*TL,T=4.7,GREEN

main56111-53070i200107-200301

*EHTL,T=4.7,GREEN

main56111-53071i200301

*EHTL,T=4.7,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2i200005-200107

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i200005-200107

56117ADAM, WINDOW GLASS ADHESIVE

main56117-53010i200005-200107

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-53010i200005-200107

5579253010COVER, WIPER MOTOR SERVICE HOLE

main55792-53010

9046706093

main90467-06093

9046710152

main90467-10152

14 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota LEXUS IS300

This section contains 14 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota LEXUS IS300. Key components include: PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH, BRACE, COWL TOP TO APRON, RH, BRACE, COWL TOP TO APRON, LH.
