Toyota LEXUS IS300 — ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-23069i200005-200107

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-53010i200005-200107

78120GROD ASSY, ACCELERATOR PEDAL

main78120-53040i200005-200107

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-24030i200005-200107

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-53060i200005-200107

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-53010i200005-200107

9165160635

main91651-60635

91651A0614

main91651-A0614

9616000600

main96160-00600

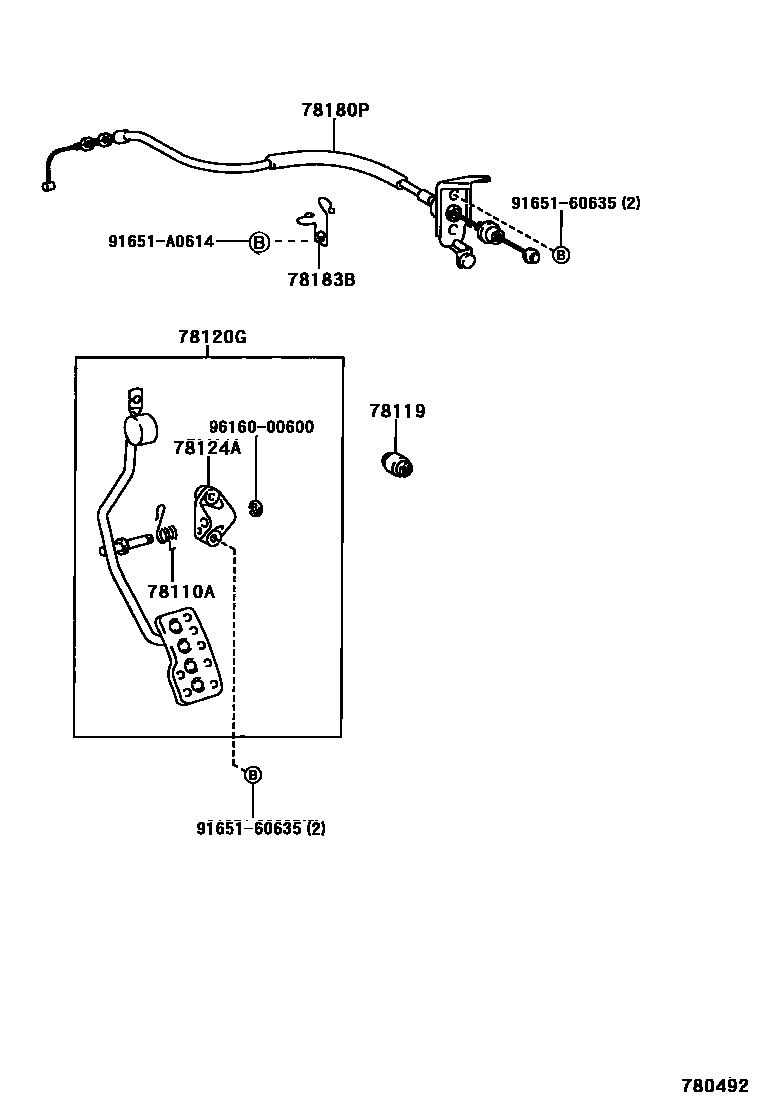

9 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota LEXUS IS300

This section contains 9 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LEXUS IS300. Key components include: SPRING (FOR ACCELERATOR PEDAL ROD), STOPPER, ACCELERATOR PEDAL ROD, ROD ASSY, ACCELERATOR PEDAL, BRACKET, ACCELERATOR PEDAL ROD, CABLE ASSY, ACCELERATOR CONTROL.
