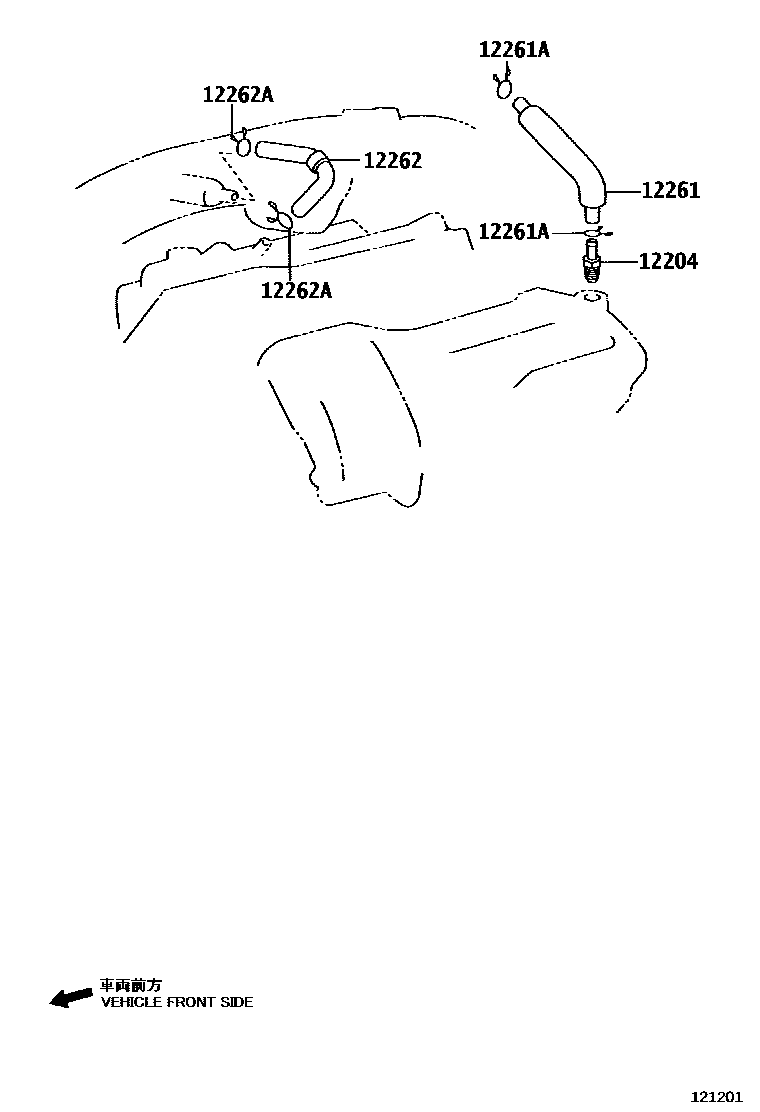

Toyota LEXUS IS250C — VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-31040i4GRFSE..GSE20..6FC200904

main12204-31090i4GRFSE..GSE20..6F200904-201008

12261HOSE, VENTILATION

main12261-31060i4GRFSE..GSE20200904-201210

main12261-31120i4GRFSE..GSE20201211

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017i4GRFSE..GSE20200904

12262HOSE, VENTILATION, NO.2

main12262-31050i4GRFSE..GSE20200904

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i4GRFSE..GSE20200904

5 parts on this diagram · 1 diagram in section
