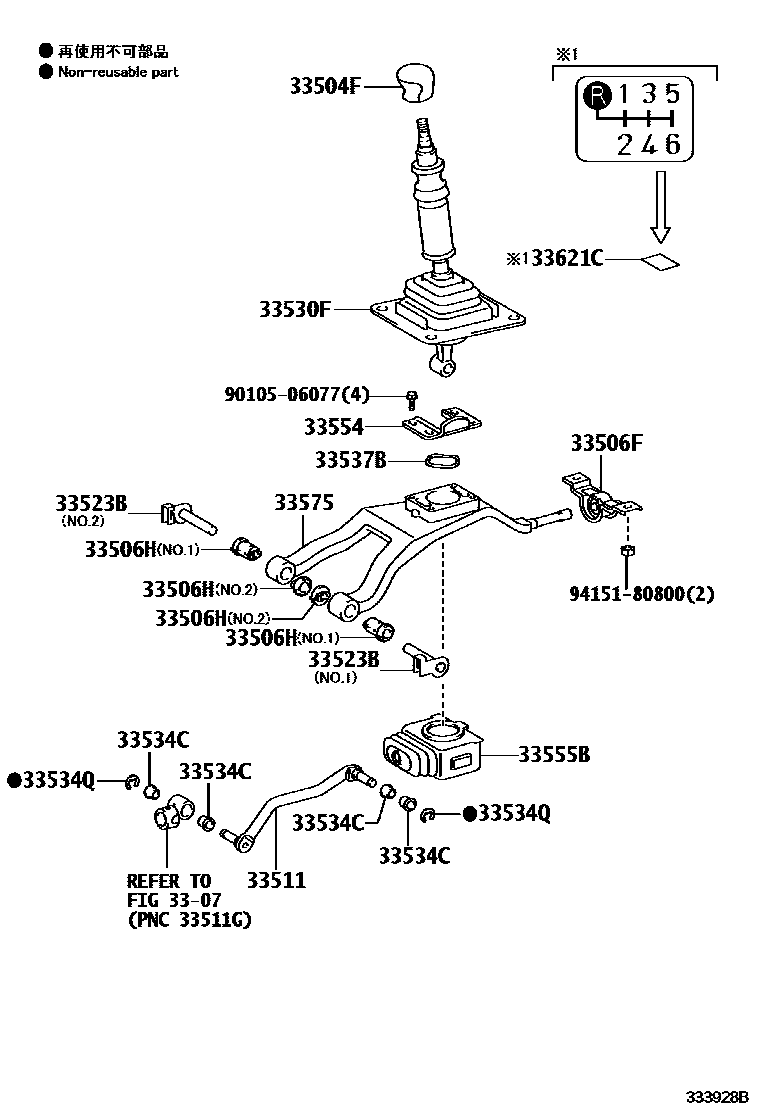

Toyota LEXUS IS250C — SHIFT LEVER & RETAINER

0001 1 0002 1

3307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-30341-C2iGSE20..6FC200904-201507

BLACK,TRIM0#,1#,2#,3#,4#

sub33504-30341

main33504-53070-C0iGSE20..6F200904-201008

BLACK,TRIM0#,2#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-53030iGSE20..6F200904-201008

33506HBUSH (FOR SHIFT LEVER RETAINER)

main33546-53050iGSE20..6F200904-201008

NO.1

main33546-53060iGSE20..6F200904-201008

NO.2

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-53060iGSE20..6F200904-201008

33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)

main33523-53030iGSE20..6F200904-201008

NO.1

main33523-53040iGSE20..6F200904-201008

NO.2

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-53040iGSE20..RHD..6F200904-201008

main33530-53050iGSE20..LHD..6F200904-201008

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-09025iGSE20..6F200904-201008

33534QRING, E (FOR SELECTING BELLCRANK NO.1)

main96160-00800iGSE20..6F200904-201008

33537BWASHER, WAVE (FOR TRANSMISSION SHIFT LEVER)

main90206-29001iGSE20..6F200904-201008

33554CAP, SHIFT LEVER

main33554-53030iGSE20..RHD..6F200904-201008

main33554-53050iGSE20..LHD..6F200904-201008

33555BBOOT, SHIFT & SELECT LEVER

main33555-53070iGSE20..6F200904-201008

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-53050iGSE20..6F200904-201008

33621CLABEL, CONTROL LEVER INFORMATION

main33621-53030iGSE20..6F200904-201008

9010506077

main90105-06077

9415180800

main94151-80800

16 parts on this diagram · 2 diagrams in section
