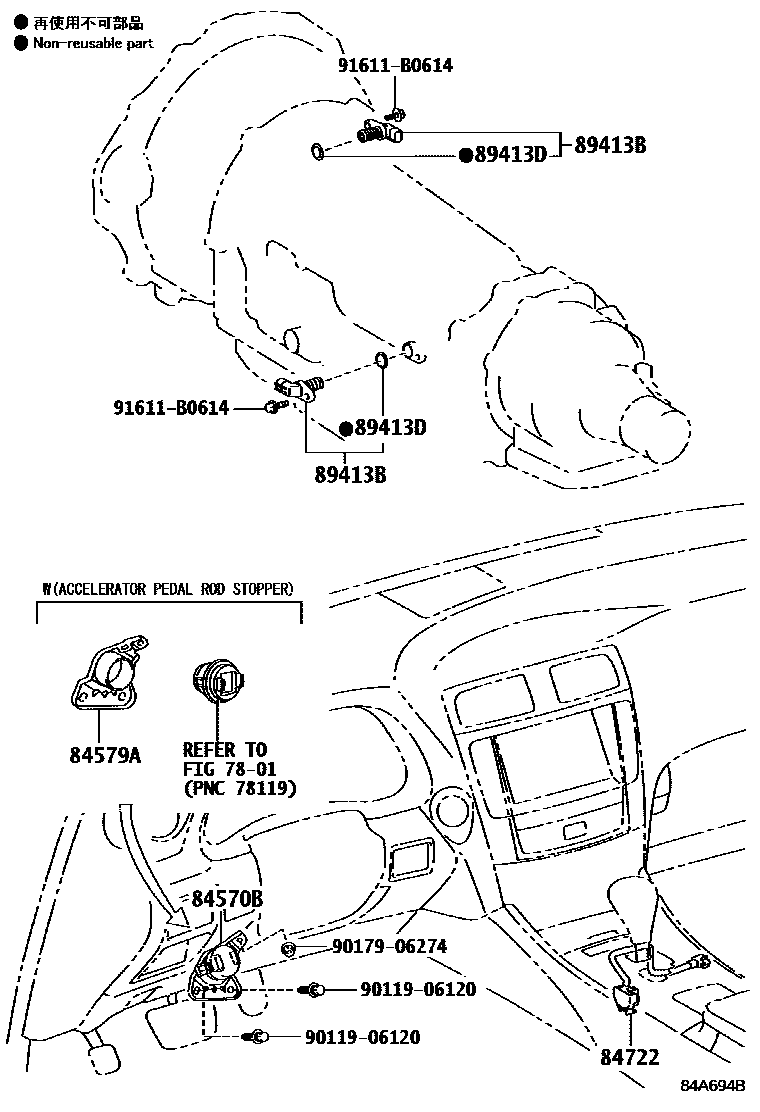

Toyota LEXUS IS250C — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

7801

84570BSWITCH ASSY, KICK DOWN

main84570-30090iGSE20..RHD..6FC200904-201411

NEW ZEALAND SPEC

main84570-30090iGSE20..RHD..6FC200904-201411

HONGKONG SPEC

main84570-30090iGSE20..RHD..6FC200904-201411

AUSTRALIA SPEC

main84570-30100iGSE20..LHD..6FC200904

84579ABRACKET, KICK DOWN SWITCH

main84579-30050iGSE20..RHD..6F200904-201008

main84579-30060iGSE20..LHD..6F200904-201008

84722SWITCH, TRANSMISSION CONTROL

main84722-20230iGSE20..RHD..6FC200904-201411

main84722-20240iGSE20..LHD..6FC200904-201507

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-0C010iGSE20201307-201507

(L)

sub89413-0C011

main89413-32010iGSE20..6FC200904-201307

sub89413-32011

main89413-32010iGSE20201307-201507

(J)

sub89413-32011

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iGSE20..6FC200904

9011906120

main90119-06120

9017906274

main90179-06274

91611B0614

main91611-B0614

9 parts on this diagram · 2 diagrams in section
