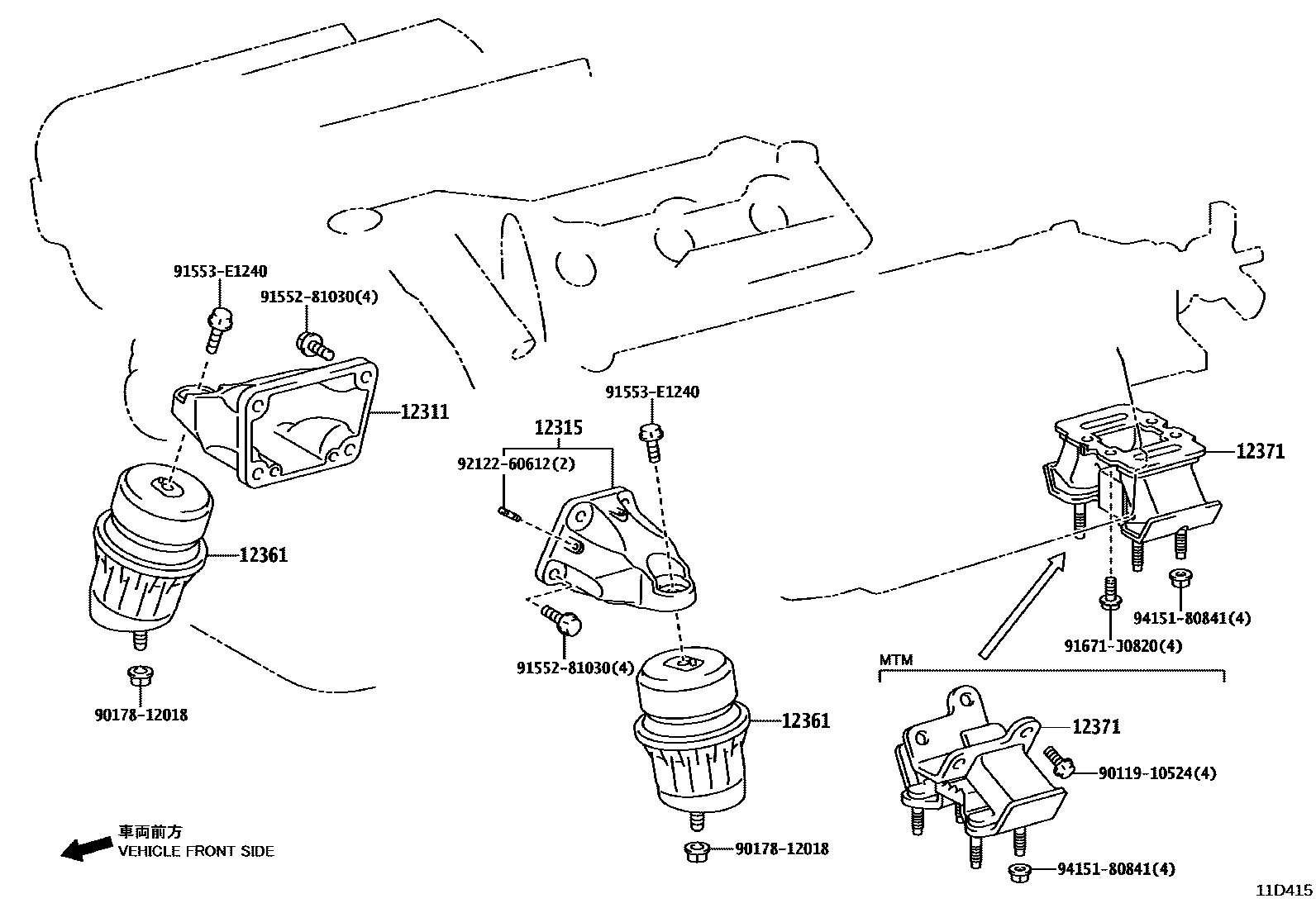

Toyota LEXUS IS250C — MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31040i4GRFSE..GSE20200904

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-31010i4GRFSE..GSE20200904

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31100i4GRFSE..GSE20..6FC200904-201411

sub12361-31101

main12361-31101i4GRFSE..GSE20201412

sub12361-31201

main12361-31200i4GRFSE..GSE20..6F200904-201008

sub12361-31201

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31070i4GRFSE..GSE20..6FC200904

main12371-31090i4GRFSE..GSE20..6F200904-201008

9011910524

main90119-10524

9017812018

main90178-12018

9155281030

main91552-81030

91553E1240

main91553-E1240

91671J0820

main91671-J0820

9212260612

main92122-60612

9415180841

main94151-80841

11 parts on this diagram · 1 diagram in section
