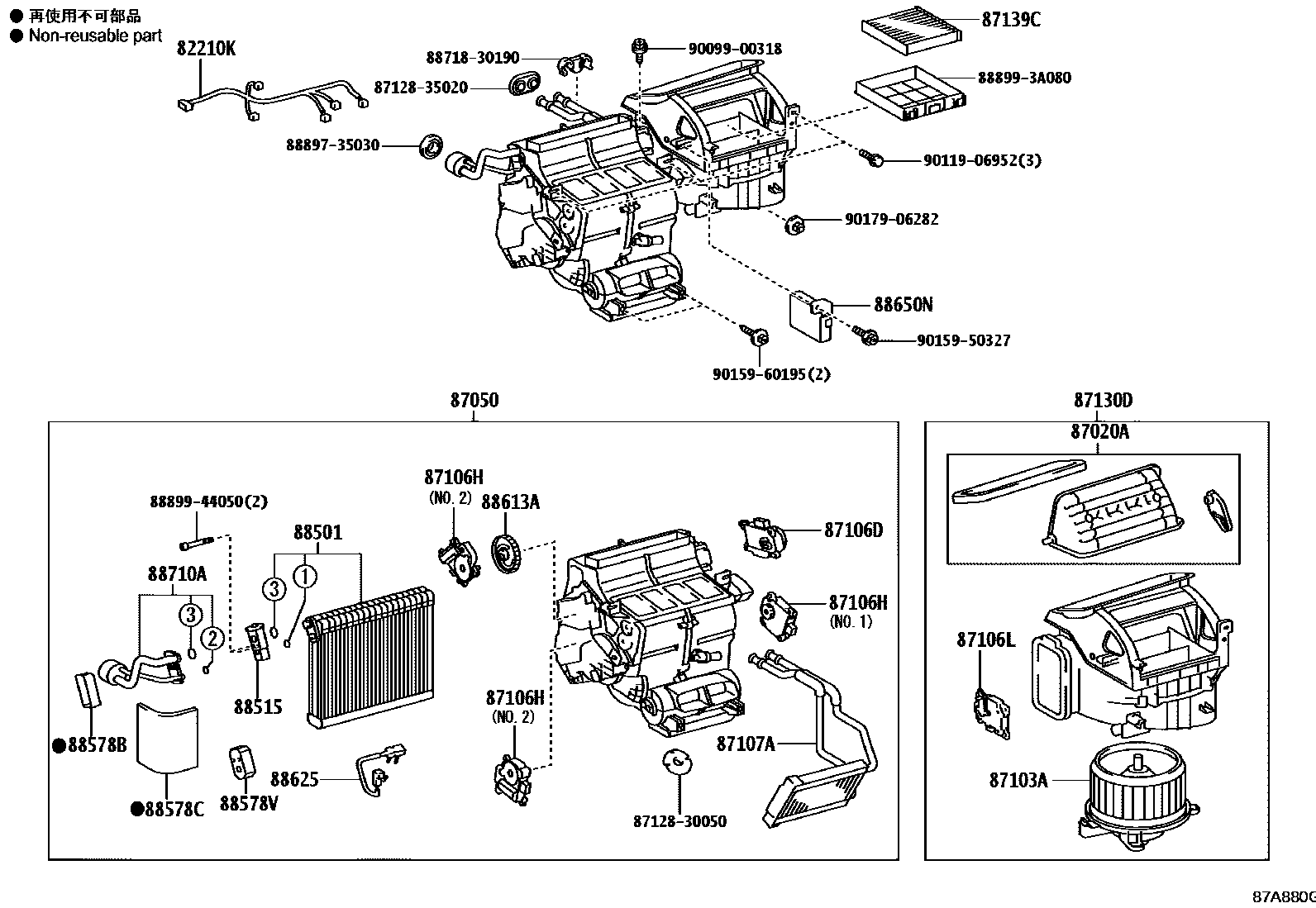

Toyota LEXUS IS250C — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-30013iGSE20..RHD200904-201411

sub82212-30014

main82212-30022iGSE20..LHD200904-201507

87020ADAMPER ASSY, HEATER AIR

main87020-30010iGSE20..RHD200904-201411

main87020-30020iGSE20..LHD200904

87050RADIATOR ASSY, AIR CONDITIONER

main87050-30210iGSE20..RHD200904-201107

sub87050-30211

main87050-30211iGSE20..RHD201107-201312

sub87050-30212

main87050-30212iGSE20..RHD201312-201411

main87050-30230iGSE20..LHD200904-201106

sub87050-30231

main87050-30231iGSE20..LHD201107

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-30400iGSE20..RHD200904-201010

sub87103-30401

main87103-30401iGSE20..RHD201011-201411

main87103-30450iGSE20..LHD200904-201010

sub87103-30451

main87103-30451iGSE20..LHD201011

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-30440iGSE20200904

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-30430iGSE20200904

NO.1

main87106-30450iGSE20200904

NO.2

87106LSERVO SUB-ASSY, DAMPER

main87106-30470iGSE20..RHD200904-201411

main87106-30480iGSE20..LHD200904

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-30560iGSE20200904-201507

87130DBLOWER ASSY

main87130-30791iGSE20..RHD200904-201411

main87130-30811iGSE20..LHD200904

87139CFILTER, CLEAN AIR

main87139-30040iGSE20200904-201208

MICRO DUST FILTER,OE PART

main87139-50060iGSE20..6FC200904-201204

DEODORANT FILTER

sub87139-50100

main87139-50100iGSE20201205-201507

POLLEN DEODORANT

main87139-52040iGSE20201208-201507

POLLEN FILTER,OE PART

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A160iGSE20200904-201107

sub88501-3A161

main88501-3A161iGSE20201107

88515VALVE, COOLER EXPANSION

main88515-28180iGSE20200904-201107

main88515-30780iGSE20201107

88578BPACKING, COOLING UNIT, NO.1

main88578-30830iGSE20200904

88578CPACKING, COOLING UNIT, NO.2

main88578-30840iGSE20..LHD200904

88578VPACKING, COOLING UNIT, NO.3

main88578-30870iGSE20201107

88613ALEVER, COOLER CONTROL, NO.1

main88613-30010iGSE20..LHD200904

88625THERMISTOR, COOLER, NO.1

main88620-30020iGSE20200904

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-53230iGSE20..LHD200904-201007

sub88650-53360

main88650-53250iGSE20..RHD200904-201007

sub88650-53380

main88650-53360iGSE20..LHD201008-201101

sub88650-53361

main88650-53361iGSE20..LHD201102-201207

sub88650-53510

main88650-53380iGSE20..RHD201008-201101

sub88650-53381

main88650-53381iGSE20..RHD201102-201207

sub88650-53530

main88650-53510iGSE20..LHD201208

main88650-53530iGSE20..RHD201208-201411

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A260iGSE20200904-201107

main88710-3A420iGSE20201107-201507

8712830050GROMMET, HEATER

main87128-30050

8712835020GROMMET, HEATER

main87128-35020

8871830190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30190

8889735030VALVE, COOLER MAGNET

main88897-35030

888993A080COVER, EVAPORATOR

main88899-3A080

8889944050COVER, EVAPORATOR

main88899-44050

9009900318

main90099-00318

9011906952

main90119-06952

9015950327

main90159-50327

9015960195

main90159-60195

9017906282

main90179-06282

30 parts on this diagram · 3 diagrams in section
