Toyota LEXUS IS250C — HEADLAMP CLEANER

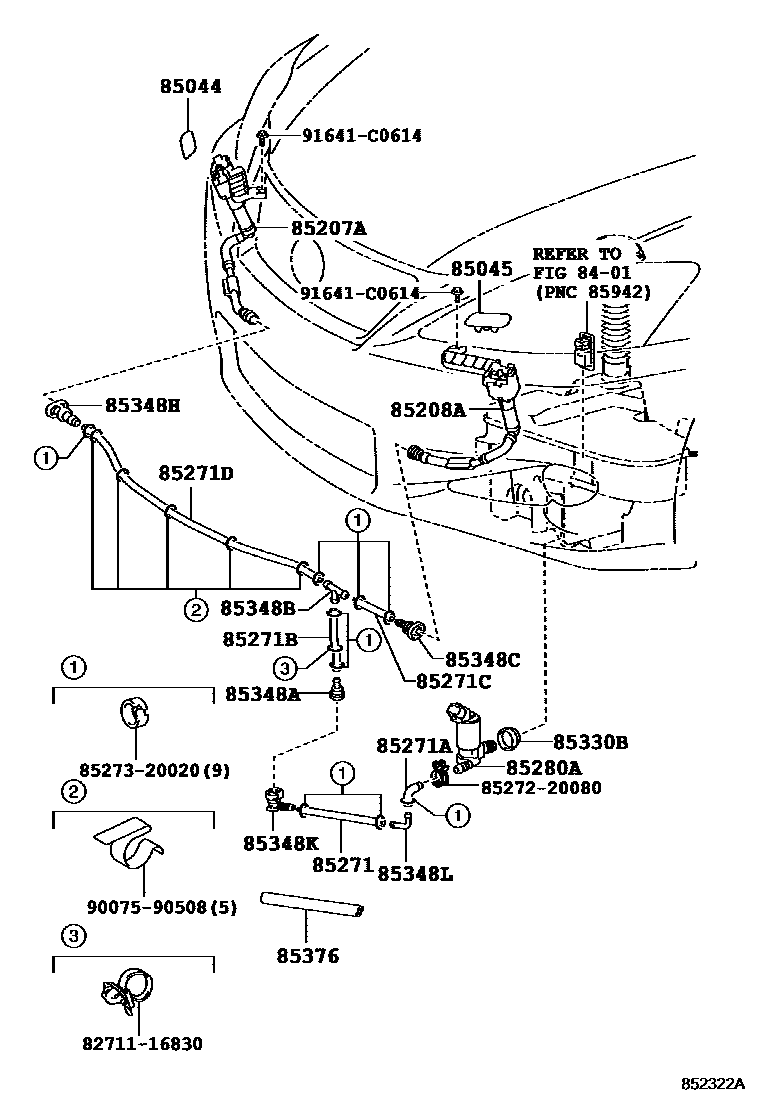

Parts diagram
8401
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
main85044-53030-A0i200904-201008
WHITE PEARL CS.,077
main85044-53030-A0i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),WHITE PEARL CS.,077
main85044-53030-B0i200904-201008
DK.GRAY MC.,1G0
main85044-53030-B0i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),DK.GRAY MC.,1G0
main85044-53030-B1i200904-201008
SILVER M.M.,1G1
main85044-53030-B1i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SILVER M.M.,1G1
main85044-53030-C0i200904-201008
BLACK,212
main85044-53030-C0i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLACK,212
main85044-53030-D0i200904-201008
RED MC.CS.,3R1
main85044-53030-D0i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),RED MC.CS.,3R1
main85044-53030-J0i200904-201008
DK.BLUE MC. CC.,8U0
main85044-53030-J0i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),DK.BLUE MC. CC.,8U0
main85044-53030-J1i200904-201008
BLUE ME.,8U1
main85044-53030-J1i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLUE ME.,8U1
main85044-53030-J2i200904-201008
SILVERY BLUE ME.,8U9
main85044-53030-J2i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SILVERY BLUE ME.,8U9
main85044-53030-K0i200904-201008
CATTLEYA M.M.,9AL
main85044-53030-K0i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),CATTLEYA M.M.,9AL
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
main85045-53010-A0i200904-201008
WHITE PEARL CS.,077
main85045-53010-A0i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),WHITE PEARL CS.,077
main85045-53010-B0i200904-201008
DK.GRAY MC.,1G0
main85045-53010-B0i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),DK.GRAY MC.,1G0
main85045-53010-B1i200904-201008
SILVER M.M.,1G1
main85045-53010-B1i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SILVER M.M.,1G1
main85045-53010-C0i200904-201008
BLACK,212
main85045-53010-C0i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLACK,212
main85045-53010-D0i200904-201008
RED MC.CS.,3R1
main85045-53010-D0i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),RED MC.CS.,3R1
main85045-53010-J0i200904-201008
DK.BLUE MC. CC.,8U0
main85045-53010-J0i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),DK.BLUE MC. CC.,8U0
main85045-53010-J1i200904-201008
BLUE ME.,8U1
main85045-53010-J1i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLUE ME.,8U1
main85045-53010-J2i200904-201008
SILVERY BLUE ME.,8U9
main85045-53010-J2i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SILVERY BLUE ME.,8U9
main85045-53010-K0i200904-201008
CATTLEYA M.M.,9AL
main85045-53010-K0i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),CATTLEYA M.M.,9AL
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
main85207-53080i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
main85208-53060i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271HOSE, HEADLAMP CLEANER, NO.1
main90445-14039i200904-201008
L=220
main90445-14039i200904-201008
L=220,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271AHOSE, HEADLAMP CLEANER, NO.2
main90075-15047i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271BHOSE, HEADLAMP CLEANER, NO.3
main85375-50020i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271CHOSE, HEADLAMP CLEANER, NO.4
main85375-50020i200904-201008
L=60
main85375-50020i200904-201008
L=60,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271DHOSE, HEADLAMP CLEANER, NO.5
main90445-14072i200904-201008
L=1320(*H,L=815)
main90445-14072i200904-201008
L=1320(*H,L=815),HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
main85280-30040i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85330BBUSH, HEADLAMP CLEANER WASHER JAR
main90099-32089i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
main85279-33040i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
main85352-12010i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
main85279-33050i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
main85279-33050i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
main85279-48020i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
main85379-22080i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
main85277-50040i200904-201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
9007590508
main90075-90508
91641C0614
main91641-C0614

24 parts on this diagram · 2 diagrams in section
