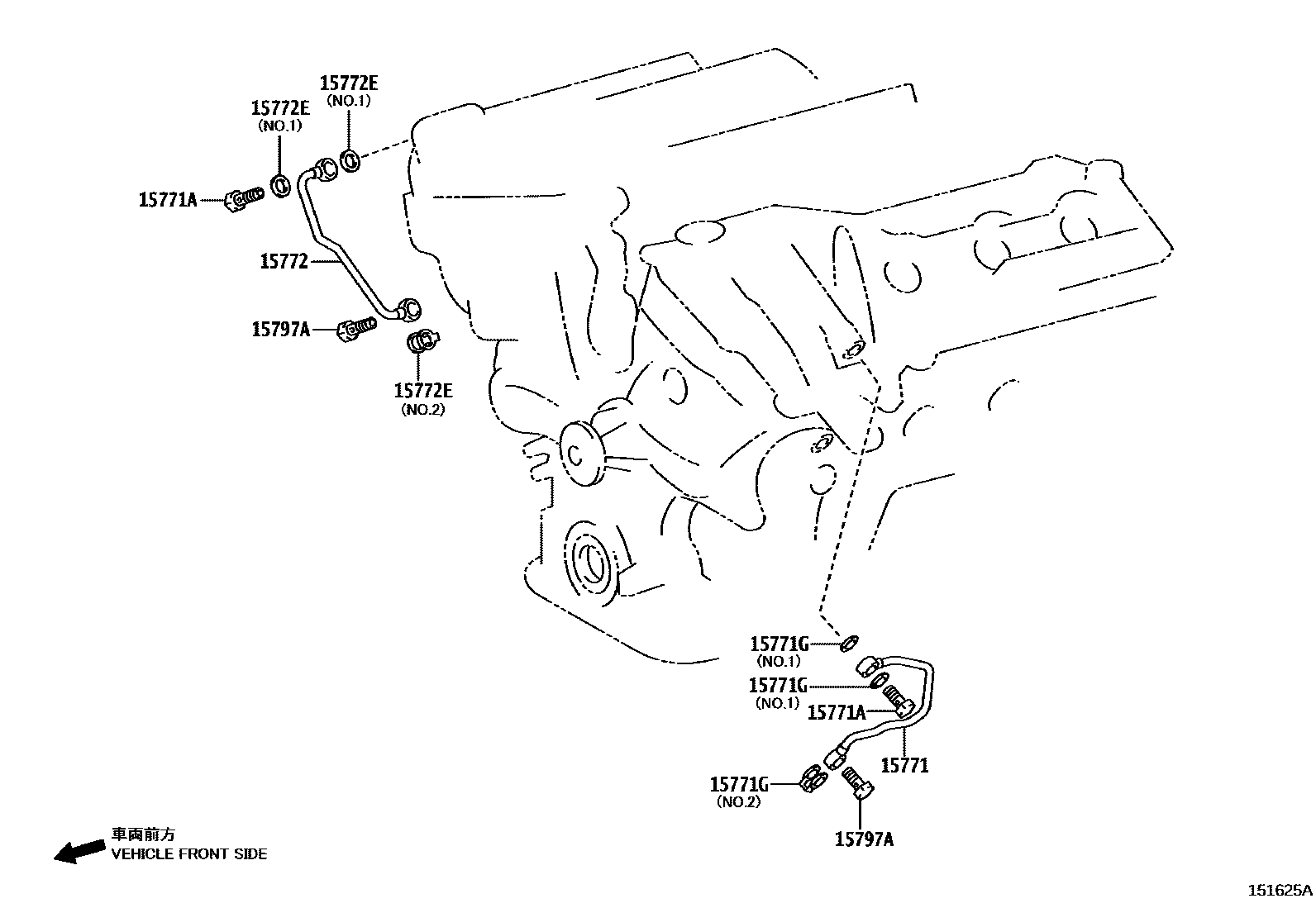

Toyota LEXUS IS250C — ENGINE OIL COOLER

15771PIPE, OIL, NO.1

main15771-31010i4GRFSE..GSE20200904

15771AUNION(FOR OIL PIPE)

main90401-16043i4GRFSE..GSE20200904

15771GGASKET

main90430-16012i4GRFSE..GSE20200904

NO.1

main90430-16016i4GRFSE..GSE20200904

NO.2

15772PIPE, OIL, NO.2

main15772-31010i4GRFSE..GSE20200904

15772EGASKET(FOR OIL PIPE)

main90430-16012i4GRFSE..GSE20200904

NO.1

main90430-16016i4GRFSE..GSE20200904

NO.2

15797ABOLT, OIL CHECK VALVE

main15797-31010i4GRFSE..GSE20200904

6 parts on this diagram · 1 diagram in section
